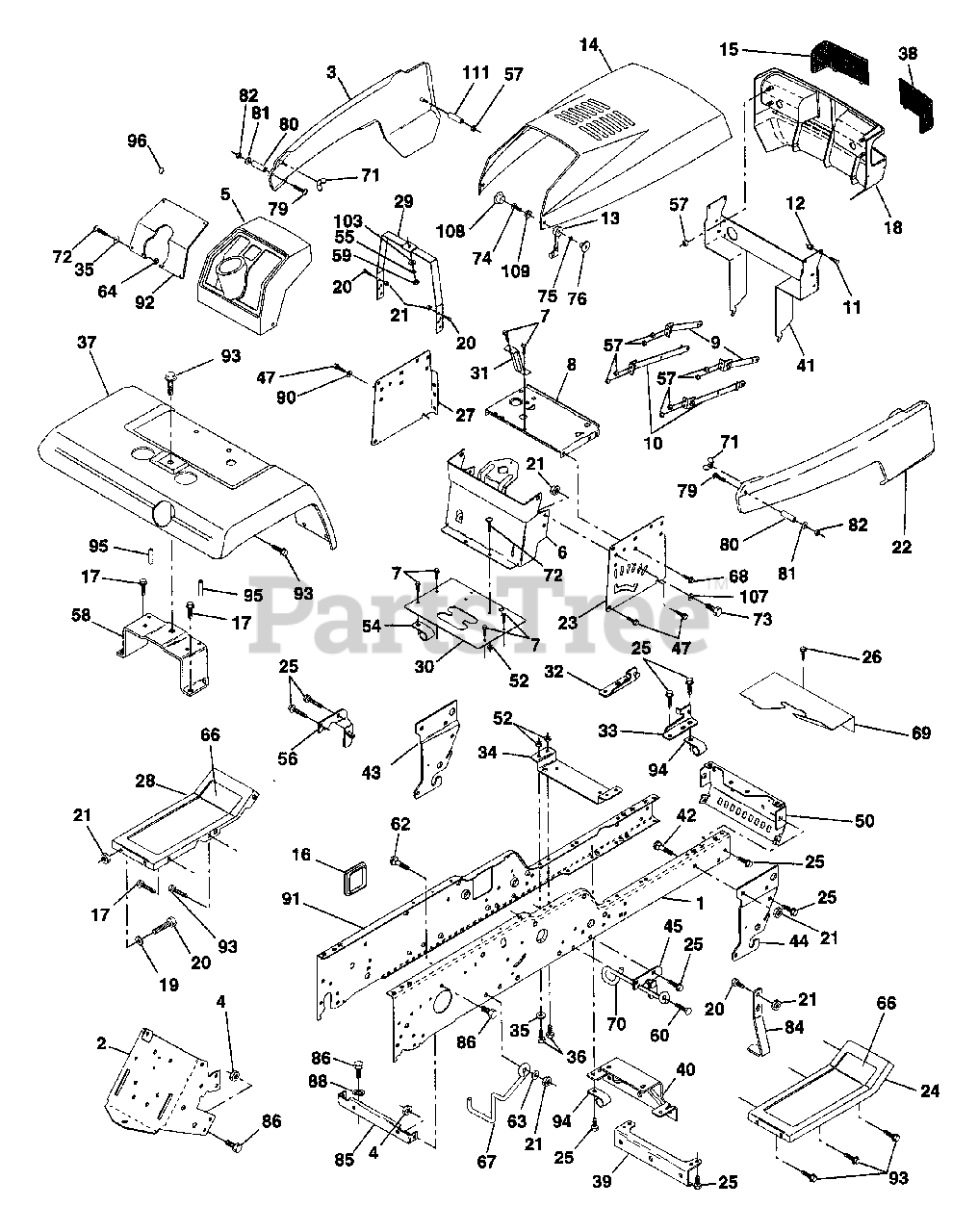

GT 200 (HN2050A) - Husqvarna Garden Tractor (1993-12) Chassis And Enclosures Parts Diagram

Garden Tractor

Chassis And Enclosures Parts Diagram

  • Title

1

Husqvarna 532140505

Rail, Frame RH

$

$

Not available

2

Husqvarna 532140506

Drawbar, Gt
(Superseded to 532175282)

$

$

Not available

3

Husqvarna 532143364

Panel Asm., Side LH
(Superseded to 532140676)

$

$

Not available

4

Husqvarna 873800700

Nut, Lock Hex 7/16 Unc

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532140452

Dash, Plastic Black

$

$

Not available

6

Husqvarna 532137253

Dash Asm., Lower

$

$

Currently unavailable

7

Husqvarna 817720408

Screw, Thd Cut 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532140229

Support, Battery

$

$

Not available

9

Husqvarna 532104618

Strap, Asm. Hinge Front

$

$

Not available

10

Husqvarna 532106784

Strap, Asm. Hinge Rear

$

$

Not available

11

Husqvarna 532123481

Bolt Shoulder 1/4-20
(Superseded to 532007605)

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 873800400

Nut, Lock W/Ins 1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532109808

Latch, Chute Blk

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 532125007

Hood Asm., Pnt
(Superseded to 532125454)

$

$

Not available

15

Husqvarna 532124250

Lens, Headlight LH
(Superseded to 532157068)

$

$

Not available

16

Husqvarna 532121794

Cover, Access

$

$

Not available

17

Husqvarna 817490612

Screw, Thdrol 3/8-16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

18

Husqvarna 532127320

Grille
(Superseded to 532157236)

$

$

Not available

19

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

20

Husqvarna 874760616

Bolt, Fin Hex 3/8-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 873800600

Nut, Lock Hex W/Wsh 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532143365

Panel Asm., Side RH
(Superseded to 532140677)

$

$

Not available

23

Husqvarna 532121045

Panel, Dash Side RH

$

$

Not available

24

Husqvarna 532124914

Footrest, RH
(Superseded to 532145243)

$

$

Not available

25

Husqvarna 817490612

Screw, Thdrol 3/8-16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

26

Husqvarna 817490512

Screw, Thdrol 5/16-18 x 3/4
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 532121046

Panel, Dash Side LH

$

$

Not available

28

Husqvarna 532124899

Footrest, LH

$

$

Not available

29

Husqvarna 532124130

Bracket, Support Dash

$

$

Not available

30

Husqvarna 532141522

Saddle, Slkscr Vgt

$

$

Currently unavailable

31

Husqvarna 532137556

Brace, Support Steering

$

$

Not available

32

Husqvarna 532141315

Bracket Asm., Frame Pivot Lh

$7.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532141314

Bracket Asm., Frame Pivot Rh

$

$

Not available

34

Husqvarna 532136963

Bracket, Engine Support Rear

$

$

Currently unavailable

35

Husqvarna 819111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

36

Husqvarna 874780512

Bolt, Fin Hex 5/16-18 x 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 532124927

Fender, Pnt.
(Superseded to 532121642)

$

$

Not available

38

Husqvarna 532124251

Lens Headlight RH
(Superseded to 532157069)

$

$

Not available

39

Husqvarna 532136961

Bracket, Axle Front

$

$

Not available

40

Husqvarna 532136962

Bracket, Support Axle/Engine

$

$

Currently unavailable

41

Husqvarna 532140625

Support Asm. Grille

$

$

Not available

42

Husqvarna 872140608

Bolt, Carriage 3/8-16 x 1
(Superseded to 872110608)

$3.99

$

In Stock, Qty 10

0

43

Husqvarna 532136939

Bracket, Spnsn Front Lh

$

$

Not available

44

Husqvarna 532136940

Bracket, Spnsn Front Rh

$

$

Not available

45

Husqvarna 532138460

Bracket Asm., Susp Chassis Rh
(Superseded to 532155887)

$

$

Not available

47

Husqvarna 817490608

Screw Thdrol 3/8-16 x 1/2

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532136575

Bracket, Chassis Front

$

$

Not available

52

Husqvarna 873800500

Locknut, Hex W/Ins 5/16-18 Unc

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532126470

Clip, Insulated

$3.99

$

Usually ships in 3-10 days

0

55

UNKNOWN

$

$

Not available

56

Husqvarna 532138461

Bracket Asm., Susp Chassis Lh
(Superseded to 532155886)

$

$

Not available

57

UNKNOWN

$

$

Not available

58

Husqvarna 532137113

Bracket Asm., Fender
(Superseded to 532183569)

$14.99

$

Usually ships in 3-10 days

0

59

Husqvarna 873220400

Nut, Fin Hex 1/4-20
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

60

Husqvarna 817490620

Screw Thdrol 3/8-16 x 1-1/4
(Superseded to 874760620)

$7.49

$

In Stock, only 3 left!

0

62

Husqvarna 872110608

Bolt, Carriage 3/8-16 x 1 Gr. 5
(Superseded to 596728201)

$3.99

$

In Stock, Qty 10

0

63

Husqvarna 819131614

Washer 13/32 x 3/4 x 14 Ga.
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

64

Husqvarna 873510500

Nut 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

66

Husqvarna 532108256

Pad, Footrest

$

$

Not available

67

Husqvarna 532140737

Guide, Belt

$3.99

$

Usually ships in 3-10 days

0

68

Husqvarna 817490508

Screw, Thdrol 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532140022

Shield, Heat

$

$

Not available

70

Husqvarna 532137159

Guide, Belt Mid Span
(Superseded to 532177679)

$9.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532123198

Nut, Plastic Locking Wing 1/4-20
(Superseded to 532146525)

$

$

Not available

72

Husqvarna 874180512

Screw, Mach Trhd 5/16-18 x 3/4

$4.99

$

Usually ships in 3-10 days

0

73

Husqvarna 874780616

Bolt, Fin Hex 3/8-16 x 1 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

74

Husqvarna 874191008

Screw, Machine #10-24
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

75

Husqvarna 810071000

Washer, Lock #10

$4.99

$

In Stock, Qty 20+

0

76

Husqvarna 532125004

Nut, Weld #10-24
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

79

Husqvarna 874981020

Screw, Machine #10-24 x 1/4
(Superseded to 874981024)

$9.99

$

In Stock, Qty 16

0

80

Husqvarna 532007206

Spacer, Split

$7.49

$

In Stock, Qty 15

0

81

Husqvarna 819070818

Washer 7/32 x 1/2 x 18 Ga.

$9.49

$

Usually ships in 3-10 days

0

82

Husqvarna 873731000

Nut #10-24
(Superseded to 873271000)

$2.99

$

Usually ships in 3-10 days

0

84

Husqvarna 532138952

Stop, Over Center Mower

$

$

Currently unavailable

85

Husqvarna 532120404

Bracket, Support
(Superseded to 532156404)

$

$

Not available

86

Husqvarna 874760716

Bolt, Fin Hex 7/16-14 Unc x 1
(Superseded to 874780716)

$4.99

$

Usually ships in 3-10 days

0

88

Husqvarna 810040700

Washer, Lock Hvy Hld Sp 7/16
(Superseded to 539990247)

$

$

Not available

90

Husqvarna 811050600

Washer, Lock External Tooth 3/8
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

91

Husqvarna 532140504

Rail, Frame Lh

$

$

Not available

92

Husqvarna 532141626

Plate, Silkscreen Dash
(Superseded to 532140130)

$

$

Not available

93

Husqvarna 817490608

Screw, Thdrol 3/8-16 x 1/2

$6.49

$

Usually ships in 3-10 days

0

94

Husqvarna 532100207

Clip, Fuel Line

$4.99

$

Usually ships in 3-10 days

0

95

Husqvarna 532105531

Push Nut, Nylon

$2.99

$

Usually ships in 3-10 days

0

96

Husqvarna 532125085

Plug, Hole

$

$

Not available

103

Husqvarna 810040400

Washer, Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

107

Husqvarna 819131614

Washer 13/32 x 1 x 14 Ga.
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

108

Husqvarna 532110356

Cap, Snap Black

$3.99

$

Usually ships in 3-10 days

0

109

Husqvarna 532110357

Cap, Washer Snap

$

$

Not available

111

Husqvarna 532001260

Spacer

$

$

Not available
