GT 200 (HN2050A) - Husqvarna Garden Tractor (1993-12) Chassis And Enclosures Parts Diagram

Garden Tractor

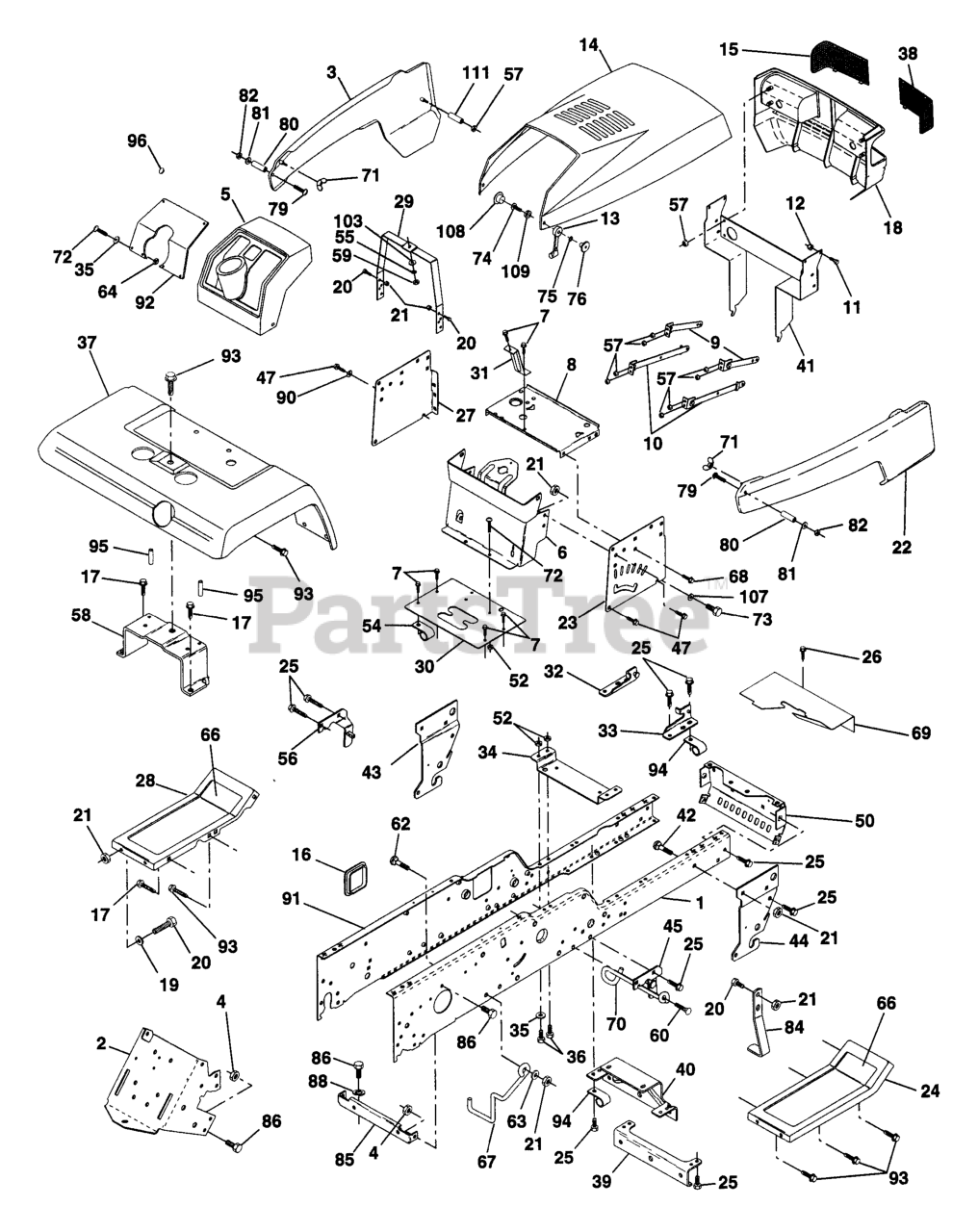

Chassis And Enclosures Parts Diagram

  • Title

1

Husqvarna 532140505

FRAME RAIL RH

$

$

Not available

2

Husqvarna 532140506

DRAWBAR-GT
(Superseded to 532175282)

$

$

Not available

3

Husqvarna 532143364

SIDE PANEL ASSY LH
(Superseded to 532140676)

$

$

Not available

4

Husqvarna 873800700

Nut, Lock Hex 7/16 Unc

$

$

Not available

5

Husqvarna 532140452

DASH

$

$

Not available

6

Husqvarna 532137253

Dash Asm., Lower

$

$

Currently unavailable

7

Husqvarna 817720408

SCREW
(Superseded to 596437001)

$3.49

$

In Stock, only 3 left!

0

8

Husqvarna 532140229

BATTERY SUPPORT

$

$

Not available

9

Husqvarna 532104618

STRAP ASSY LT

$

$

Not available

10

Husqvarna 532106784

STRAP ASSY LT

$

$

Not available

11

Husqvarna 532123481

BOLT T
(Superseded to 532007605)

$

$

Not available

12

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

13

Husqvarna 532109808

LATCH.HOOD.

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 532125007

HOOD
(Superseded to 532125454)

$

$

Not available

15

Husqvarna 532124250

LENS LH
(Superseded to 532157068)

$

$

Not available

16

Husqvarna 532121794

COVER ACCESS

$

$

Not available

17

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$5.99

$

In Stock, only 2 left!

0

18

Husqvarna 532127320

GRILL COMPLETE
(Superseded to 532157236)

$

$

Not available

19

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

20

Husqvarna 874760616

BOLT
(Superseded to 596564401)

$4.99

$

In Stock, Qty 15

0

21

Husqvarna 873800600

NUT
(Superseded to 873680600)

$

$

Not available

22

Husqvarna 532143365

SIDE PANEL ASSY RH
(Superseded to 532140677)

$

$

Not available

23

Husqvarna 532121045

PANEL, DASH RH

$

$

Not available

24

Husqvarna 532124914

PAD,SPACER
(Superseded to 532145243)

$

$

Not available

25

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$5.99

$

In Stock, only 2 left!

0

26

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 532121046

PANEL, DASH LH

$

$

Not available

28

Husqvarna 532124899

ROLL PIN NLA

$

$

Not available

29

Husqvarna 532124130

SUPPORT ASS'Y

$

$

Not available

30

Husqvarna 532141522

Saddle, Slkscr Vgt

$

$

Currently unavailable

31

Husqvarna 532137556

STEERING SUPPORT BRACE

$

$

Not available

32

Husqvarna 532141315

FRAME PIVOT BRKT ASSY LH

$

$

Not available

33

Husqvarna 532141314

FRAME PIVOT BRKT ASSY RH

$

$

Not available

34

Husqvarna 532136963

Bracket, Engine Support Rear

$

$

Currently unavailable

35

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.49

$

In Stock, Qty 20+

0

36

Husqvarna 874780512

BOLT.FIN.HEX.5/16-18X3/4
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

37

Husqvarna 532124927

FENDER
(Superseded to 532121642)

$

$

Not available

38

Husqvarna 532124251

LENS RH
(Superseded to 532157069)

$

$

Not available

39

Husqvarna 532136961

FRONT AXLE BRACKET

$

$

Not available

40

Husqvarna 532136962

Bracket, Support Axle/Engine

$

$

Currently unavailable

41

Husqvarna 532140625

GRILL SUPPORT ASSY

$

$

Not available

42

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$4.99

$

In Stock, only 1 left!

0

43

Husqvarna 532136939

FRONT SUSPENSION BRKT LH

$

$

Not available

44

Husqvarna 532136940

FRONT SUSPENSION BRKT RH

$

$

Not available

45

Husqvarna 532138460

CHASSIS BRKT
(Superseded to 532155887)

$

$

Not available

47

Husqvarna 817490608

SCREW LT
(Superseded to 596564001)

$3.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532136575

CHASSIS BRKT

$

$

Not available

52

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$

$

Not available

54

Husqvarna 532126470

CLIP,INSULATOR

$

$

Not available

55

UNKNOWN

$

$

Not available

56

Husqvarna 532138461

SUSPENSION BRKT LH
(Superseded to 532155886)

$

$

Not available

57

UNKNOWN

$

$

Not available

58

Husqvarna 532137113

FENDER BRKT
(Superseded to 532183569)

$28.99

$

Usually ships in 3-10 days

0

59

Husqvarna 873220400

NUT
(Superseded to 532050675)

$3.49

$

Usually ships in 3-10 days

0

60

Husqvarna 817490620

SCREW
(Superseded to 874760620)

$5.99

$

Usually ships in 3-10 days

0

62

Husqvarna 872110608

BOLT D
(Superseded to 596728201)

$4.99

$

In Stock, only 1 left!

0

63

Husqvarna 819131614

WASHER
(Superseded to 596140201)

$3.49

$

In Stock, only 2 left!

0

64

Husqvarna 873510500

NUT
(Superseded to 873800500)

$

$

Not available

66

Husqvarna 532108256

PAD FOOTREST T

$

$

Not available

67

Husqvarna 532140737

BELT GUIDE

$

$

Not available

68

Husqvarna 817490508

Screw, Thdrol 5/16-18 x 1/2
(Superseded to 539990858)

$

$

Not available

69

Husqvarna 532140022

HEAT SHIELD

$

$

Not available

70

Husqvarna 532137159

BELT GUIDE
(Superseded to 532177679)

$3.49

$

In Stock, only 2 left!

0

71

Husqvarna 532123198

WING NUT
(Superseded to 532146525)

$

$

Not available

72

Husqvarna 874180512

Screw, Mach Trhd 5/16-18 x 3/4

$

$

Not available

73

Husqvarna 874780616

BOLT
(Superseded to 596564401)

$4.99

$

In Stock, Qty 15

0

74

Husqvarna 874191008

SCREW
(Superseded to 871191008)

$

$

Not available

75

Husqvarna 810071000

LOCKWASHER #10

$4.99

$

In Stock, only 2 left!

0

76

Husqvarna 532125004

WELDNUT
(Superseded to 596987401)

$3.49

$

In Stock, Qty 20+

0

79

Husqvarna 874981020

RP SCREW
(Superseded to 874981024)

$5.99

$

In Stock, Qty 12

0

80

Husqvarna 532007206

SPACER LT

$5.99

$

In Stock, only 3 left!

0

81

Husqvarna 819070818

WASHER

$6.49

$

Usually ships in 3-10 days

0

82

Husqvarna 873731000

NUT **
(Superseded to 873271000)

$

$

Not available

84

Husqvarna 532138952

Stop, Over Center Mower

$

$

Currently unavailable

85

Husqvarna 532120404

BRKT SUPPORT GT
(Superseded to 532156404)

$

$

Not available

86

Husqvarna 874760716

BOLT
(Superseded to 596238601)

$3.49

$

Usually ships in 3-10 days

0

88

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.49

$

In Stock, only 1 left!

0

90

Husqvarna 811050600

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

91

Husqvarna 532140504

FRAME RAIL LH

$

$

Not available

92

Husqvarna 532141626

DASH PLATE
(Superseded to 532140130)

$

$

Not available

93

Husqvarna 817490608

SCREW LT
(Superseded to 596564001)

$3.49

$

Usually ships in 3-10 days

0

94

Husqvarna 532100207

CLIP GTV

$

$

Not available

95

Husqvarna 532105531

NUT-PUSH YT

$

$

Not available

96

Husqvarna 532125085

PLUG-DASH T

$

$

Not available

103

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.49

$

Usually ships in 3-10 days

0

107

Husqvarna 819131614

WASHER
(Superseded to 596140201)

$3.49

$

In Stock, only 2 left!

0

108

Husqvarna 532110356

SNAP CAP LT

$

$

Not available

109

Husqvarna 532110357

WASHER LT

$

$

Not available

111

Husqvarna 532001260

SPACER NLA

$

$

Not available
