GT 200 (HN2050A) - Husqvarna Garden Tractor (1993-12) Ground Drive Parts Diagram

Garden Tractor

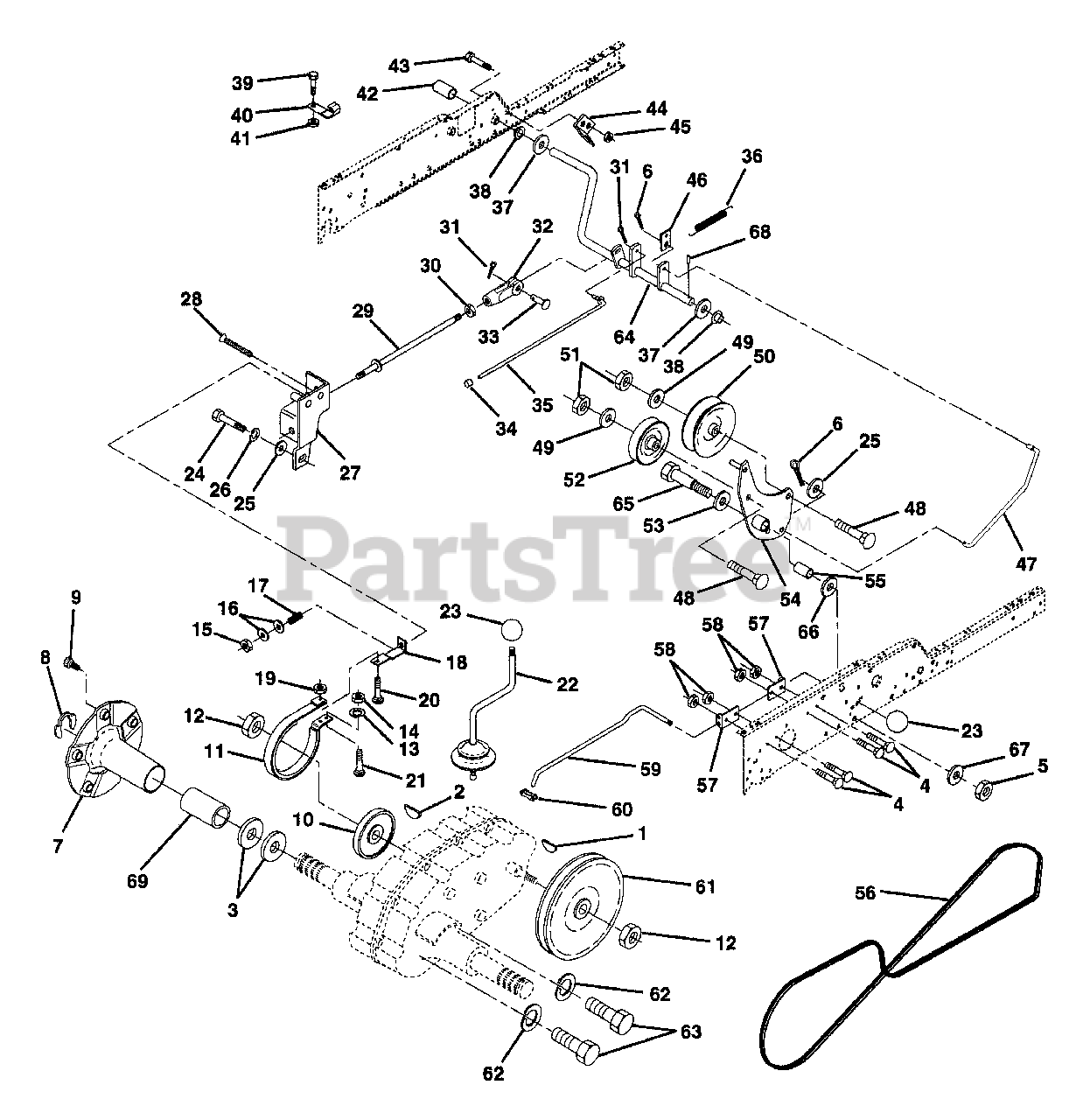

Ground Drive Parts Diagram

  • Title

1

Husqvarna 532124708

Key, Woodruff
(Superseded to 532009858)

$

$

Not available

2

Husqvarna 532125096

Key, Woodruff

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532007563

Washer, Thrust, Axle

$8.99

$

In Stock, only 3 left!

0

4

Husqvarna 872140506

Bolt 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 873680600

Nut, Crownlock 3/8-16

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 876020412

Pin, Cotter 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

7

Husqvarna 532135758

Wheel Hub Assembly
(Superseded to 532634692)

$42.99

$

Usually ships in 3-10 days

0

8

Husqvarna 812000034

Klip Ring

$

$

Not available

9

Husqvarna 532140080

Bolt, Hub

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532000214

Drum, Brake

$

$

Not available

11

Husqvarna 532101122

Band, Brake

$

$

Not available

12

Husqvarna 532009204

Locknut 1/2-20

$

$

Not available

13

Husqvarna 810040400

Washer, Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

14

Husqvarna 873220400

Nut, Hex 1/4-20
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

15

Husqvarna 873530600

Locknut 3/8-24
(Superseded to 873610600)

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 819131614

Washer 13/32 x 1 x 14 Gauge
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532007241

Spring, Compression

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532124695

Guide, Brake Rod
(Superseded to 532007229)

$

$

Not available

19

Husqvarna 532124949

Locknut 5/16-18

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 872110506

Bolt, Carriage 5/18-18 x 3/4

$7.49

$

In Stock, Qty 20+

0

21

Husqvarna 872140405

Bolt, Carriage 1/4-20 x 5/8

$7.49

$

In Stock, Qty 8

0

22

Husqvarna 532124863

Gearshift Lever Assembly

$

$

Not available

23

Husqvarna 532121466

Knob

$

$

Not available

24

Husqvarna 874760614

Bolt, Hex Head 3/8-16 x 7/8
(Superseded to 874760616)

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Gauge
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 810040600

Washer, Lock 3/8
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 532124692

Bracket, Brake
(Superseded to 532677637)

$7.49

$

Usually ships in 3-10 days

0

28

Husqvarna 874370612

Screw, Machine, Flat Head 3/8-16 x 3/4

$

$

Not available

29

Husqvarna 532005308

Brake Rod

$

$

Not available

30

Husqvarna 873610600

Nut, Hex 3/8-24
(Superseded to 873800600)

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 876020312

Pin, Cotter 3/32 x 3/4
(Superseded to 876020308)

$

$

Not available

32

Husqvarna 532100604

Yoke

$

$

Not available

33

Husqvarna 532005102

Pin, Clevis

$

$

Not available

34

Husqvarna 532071673

Cap, Plunger

$4.99

$

In Stock, only 1 left!

0

35

Husqvarna 532137255

Rod, Parking Brake

$

$

Currently unavailable

36

Husqvarna 532138364

Spring, Extension, Clutch
(Superseded to 532149412)

$

$

Not available

37

Husqvarna 532121749

Washer 25/32 x 1-1/4 x 16 Gauge

$3.49

$

In Stock, Qty 20+

0

38

Husqvarna 532110895

Nyliner

$

$

Not available

39

Husqvarna 874321016

Screw, Fin. #10-24 x 1

$

$

Not available

40

Husqvarna 532005304

Actuator, Interlock Switch
(Superseded to 532178575)

$

$

Not available

41

Husqvarna 873631000

Locknut #10-24
(Superseded to 532069180)

$6.49

$

In Stock, only 2 left!

0

42

Husqvarna 532123533

Cover, Clutch/Brake Pedal

$6.99

$

Usually ships in 3-10 days

0

43

Husqvarna 874760412

Bolt, Hex 1/4-20 x 3/4

$7.49

$

In Stock, Qty 5

0

44

Husqvarna 532104601

Bracket, Interlock

$

$

Not available

45

Husqvarna 873800400

Nut, Lock w/Inst 1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532121358

Retainer, Spring

$

$

Not available

47

Husqvarna 532138228

Clutch Rod

$

$

Not available

48

Husqvarna 872110614

Bolt, Carriage 3/8-16 x 1-3/4

$6.49

$

Usually ships in 3-10 days

0

49

Husqvarna 819131413

Washer 13/32 x 7/8 x 13 Gauge

$2.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532131494

Idler, Flat
(Superseded to 597025001)

$26.99

$

In Stock, Qty 20+

0

51

Husqvarna 873800600

Locknut, Hex 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532139123

Idler, Grooved

$37.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532000207

Washer, Hardened

$6.49

$

Usually ships in 3-10 days

0

54

Husqvarna 532138390

Clutch Arm Assembly

$

$

Not available

55

Husqvarna 532105706

Bearing, Idler

$7.49

$

Usually ships in 3-10 days

0

56

Husqvarna 532137153

V-Belt

$72.99

$

In Stock, only 3 left!

0

57

Husqvarna 532105598

Bracket, Shift Rod, Hi-Lo

$6.49

$

Usually ships in 3-10 days

0

58

Husqvarna 873800500

Locknut, Hex, with Washer Insert 5/16-18

$3.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532122253

Shift Rod, Hi-Lo

$14.99

$

Usually ships in 3-10 days

0

60

Husqvarna 532122268

Spring Clip, Connecting Link

$6.49

$

Usually ships in 3-10 days

0

61

Husqvarna 532137524

Pulley, Transaxle

$

$

Not available

62

Husqvarna 810040700

Washer, Lock 7/16
(Superseded to 539990247)

$

$

Not available

63

Husqvarna 874760720

Bolt, Hex Head 7/16-14 x 1-1/4
(Superseded to 874780720)

$6.49

$

Usually ships in 3-10 days

0

64

Husqvarna 532104375

Shaft, Clutch/Brake Pedal

$

$

Not available

65

Husqvarna 532067609

Bolt, Shoulder

$9.49

$

Usually ships in 3-10 days

0

66

Husqvarna 532140296

Washer, Hardened

$6.49

$

In Stock, Qty 6

0

67

Husqvarna 819131312

Washer Flat
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

68

Husqvarna 532005142

Pin, Roll

$

$

Not available

69

Husqvarna 532136327

Hub, Cover

$6.49

$

Usually ships in 3-10 days

0
