GT 200 (HN2050A) - Husqvarna Garden Tractor (1993-12) Lift Assembly Parts Diagram

Garden Tractor

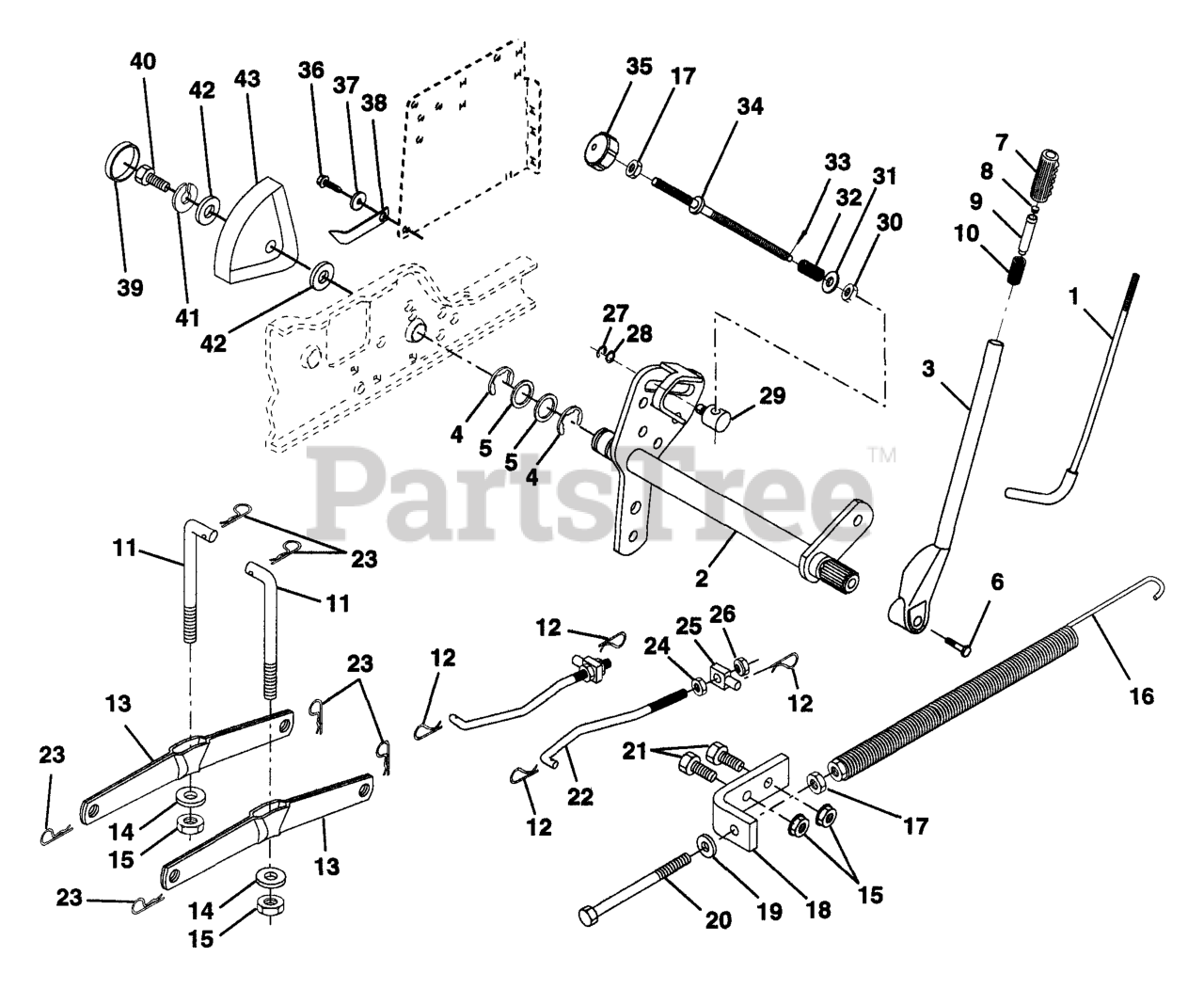

Lift Assembly Parts Diagram

  • Title

1

Husqvarna 532121006

LEVER ROD LT

$

$

Not available

2

Husqvarna 532137295

SHAFT ASSY

$

$

Not available

3

Husqvarna 532121002

LIFT LEVER KIT
(Superseded to 532123096)

$

$

Not available

4

Husqvarna 812000022

E-RING

$3.49

$

In Stock, only 2 left!

0

5

Husqvarna 819292016

Washer 29/32 x 1-1/4 x 16 Ga.

$9.49

$

Usually ships in 3-10 days

0

6

Husqvarna 874780624

BOLT
(Superseded to 874930624)

$9.49

$

In Stock, Qty 6

0

7

Husqvarna 532125631

GRIP HANDLE

$7.99

$

In Stock, Qty 9

0

8

Husqvarna 532124526

PLUNGER BUT KIT
(Superseded to 532125925)

$

$

Not available

9

Husqvarna 532122364

PLUNGER BUT KIT
(Superseded to 532125925)

$

$

Not available

10

Husqvarna 532124874

SPRING**
(Superseded to 532002876)

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532142369

LINK LIFT
(Superseded to 532145543)

$

$

Not available

12

Husqvarna 532124660

SPRING RETAINER
(Superseded to 532003146)

$3.49

$

In Stock, Qty 20+

0

13

Husqvarna 532139867

SUSPENSION ARM
(Superseded to 531165801)

$13.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532140302

BEARING PIVOT
(Superseded to 532169865)

$

$

Not available

15

Husqvarna 873800600

NUT
(Superseded to 873680600)

$

$

Not available

16

Husqvarna 532124687

LIFT SPRING
(Superseded to 532674247)

$

$

Not available

17

Husqvarna 873350600

NUT
(Superseded to 873220600)

$5.99

$

In Stock, only 2 left!

0

18

Husqvarna 532124671

BRKT.SPRING

$

$

Not available

19

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

20

Husqvarna 532005328

BOLT

$

$

Not available

21

Husqvarna 874760616

BOLT
(Superseded to 596564401)

$4.99

$

In Stock, Qty 15

0

22

Husqvarna 532127218

FRONT LINK

$20.99

$

In Stock, only 4 left!

0

23

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

24

Husqvarna 873350800

NUT.HEX.JAM.1/2-13
(Superseded to 596433401)

$3.49

$

In Stock, Qty 6

0

25

Husqvarna 532130171

TRUNION
(Superseded to 532175689)

$

$

Not available

26

Husqvarna 873800800

NUT.LK.W/WSH.1/2.
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 812000037

Ring, Klip #T5304-37

$

$

Not available

28

Husqvarna 819151216

Washer 15/32 x 3/4 x 16 Ga.

$

$

Not available

29

Husqvarna 532110810

TRUNION LT

$

$

Not available

30

Husqvarna 532110807

NUT T

$

$

Not available

31

Husqvarna 819131016

WASHER

$3.49

$

In Stock, only 4 left!

0

32

Husqvarna 532137150

SPRING.COMP.INF.H

$

$

Not available

33

Husqvarna 876020308

COTTER PIN
(Superseded to 596917601)

$3.49

$

Usually ships in 3-10 days

0

34

Husqvarna 532137167

ROD.LIFT.ADJUSTABLE

$6.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532138057

KNOB INF 3/8-16

$

$

Not available

36

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$5.99

$

In Stock, only 2 left!

0

37

Husqvarna 532120529

WASHER T

$

$

Not available

38

Husqvarna 532138346

POINTER HGT
(Superseded to 532123933)

$

$

Not available

39

Husqvarna 532123935

PLUG,HOLE

$

$

Not available

40

Husqvarna 874780516

BOLT.FIN.HEX.5/16-18UNC X 1.00
(Superseded to 596580801)

$3.49

$

In Stock, Qty 20+

0

41

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.49

$

In Stock, Qty 20+

0

42

Husqvarna 819112410

WASHER

$6.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532123934

HEIGHT INDICATOR

$

$

Not available
