GT 200 (HN2050A) - Husqvarna Garden Tractor (1993-12) Transaxle Parts Diagram

Garden Tractor

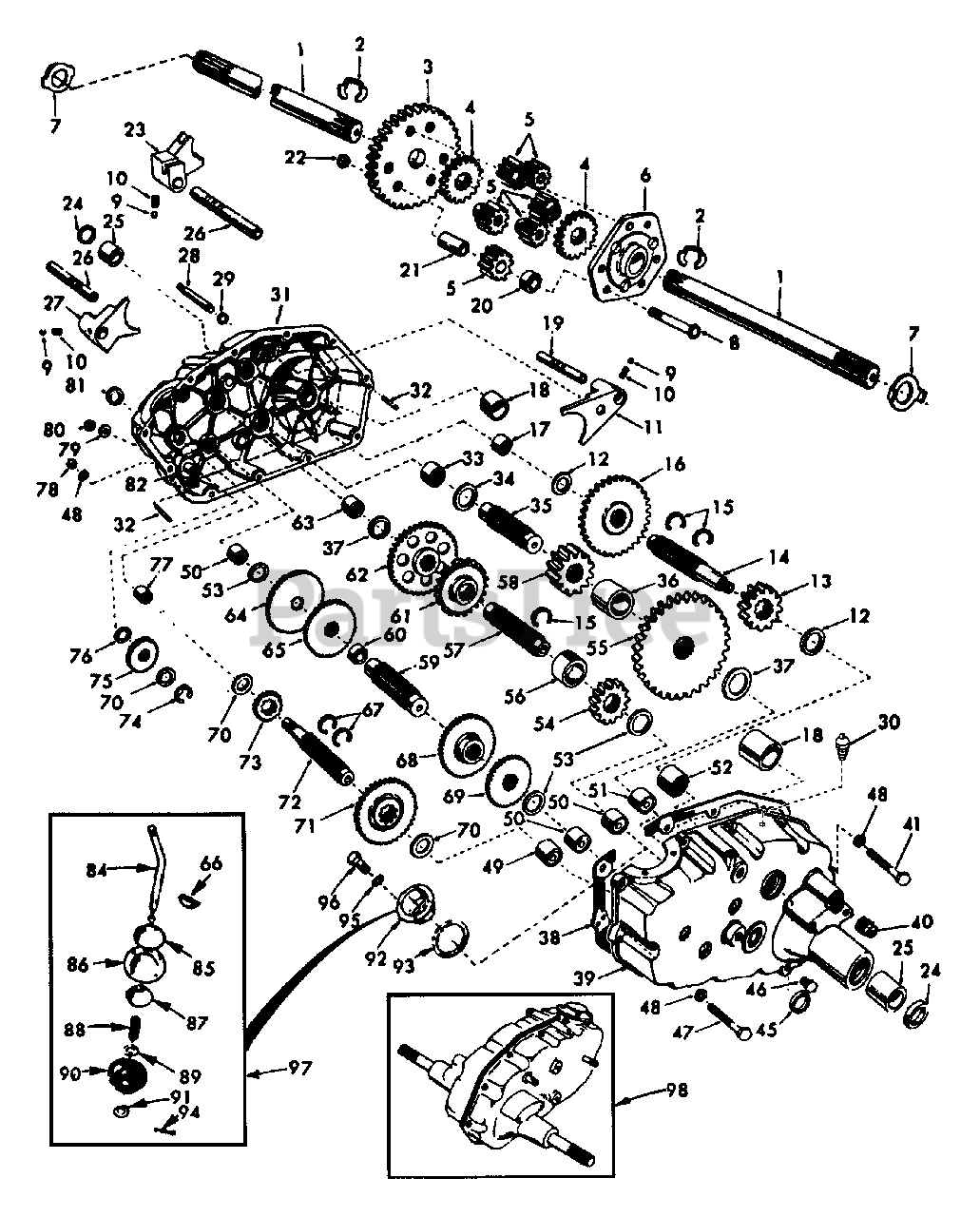

Transaxle Parts Diagram

  • Title

1

Husqvarna 532124662

Axle Shaft
(Superseded to 532004197)

$72.99

$

Usually ships in 3-10 days

0

2

Husqvarna 812000034

Retaining Ring

$

$

Not available

3

Husqvarna 532004199

Final Drive Gear
(Superseded to 532184956)

$

$

Not available

4

Husqvarna 532004216

Differential Gear

$12.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532004215

Differential Pinion

$9.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532004217

Differential Carrier

$23.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532124674

Axle Thrust Washer
(Superseded to 532006256)

$

$

Not available

8

Husqvarna 874020652

Bolt, Hex Head 3/8-24 x 3-1/4 (1" Thread Length)

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532124697

Steel Ball
(Superseded to 532100482)

$7.49

$

In Stock, only 3 left!

0

10

Husqvarna 532137261

Spring Shift Fork Detent
(Superseded to 532145359)

$

$

Not available

11

Husqvarna 532004985

Shift Fork, High-Low Range

$

$

Not available

12

Husqvarna 532124931

Thrust Bearing Race
(Superseded to 532006266)

$7.99

$

In Stock, Qty 20+

0

13

Husqvarna 532124667

4th Reduction Pinion
(Superseded to 532004212)

$8.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532124661

3rd Reduction Gear Shaft
(Superseded to 532004196)

$

$

Not available

15

Husqvarna 532124677

Snap Ring, Crescent Type
(Superseded to 532006276)

$

$

Not available

16

Husqvarna 532124679

High-Low Range Gears
(Superseded to 532063363)

$51.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532008118

Needle Bearing

$8.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532124705

Sintered Iron Bearing
(Superseded to 532008740)

$

$

Not available

19

Husqvarna 532122238

Shift Fork Shaft, High-Low Range

$8.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532004218

Differential Pinion Spacer

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532124673

Differential Pinion Bushing
(Superseded to 532006252)

$5.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532124701

Gripco Centerlock Nut 3/8-24
(Superseded to 873610600)

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532006262

Shift Fork, R.H.

$28.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532124698

Oil Seal
(Superseded to 532007393)

$6.49

$

In Stock, Qty 7

0

25

Husqvarna 532124709

Sintered Iron Bearing
(Superseded to 532000992)

$

$

Not available

26

Husqvarna 532124672

Shift Fork Shaft
(Superseded to 532006216)

$

$

Not available

27

Husqvarna 532004986

Shift Fork, L.H.

$

$

Not available

28

Husqvarna 532122254

Shift Shaft, High-Low Range

$

$

Not available

29

Husqvarna 532006269

Oil Seal

$

$

Not available

30

Husqvarna 532005855

Pressure Relief Valve

$4.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532137976

Gearcase, Reverse Idler Shaft and Bearings, R.H.
(Superseded to 532137982)

Note: (Includes Key No.'s 17, 18, 25, 33, 50, 63, 76, 77 & 82)

$

$

Not available

32

Husqvarna 532006277

Dowel Pin

$

$

Not available

33

Husqvarna 532004225

Needle Bearing

$14.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532007396

Thrust Bearing Race

$

$

Not available

35

Husqvarna 532004198

4th Reduction Gear Shaft

$31.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532124663

4th Reduction Gear Spacer
(Superseded to 532004200)

$

$

Not available

37

Husqvarna 532007395

Thrust Bearing Race

$6.49

$

Usually ships in 3-10 days

0

38

Husqvarna 532121878

Gearcase Gasket

$

$

Not available

39

Husqvarna 532137974

Gearcase and Bearings, L.H.

Note: (Includes Key Numbers 18, 25, 49, 50 (2), 51 and 52)

$173.99

$

Usually ships in 3-10 days

0

40

Husqvarna 813320400

Pipe Plug 1/2-14 N.P.T.

$

$

Not available

41

Husqvarna 874780526

Bolt, Hex 5/16-18 UNC x 1-5/8

$

$

Not available

45

Husqvarna 532006271

Oil Seal

$

$

Not available

46

Husqvarna 813060200

Pipe Plug 1/4-18 N.P.T.

$

$

Not available

47

Husqvarna 874780524

Bolt, Hex 5/16-18 x 1-1/2 Grade 5
(Superseded to 539976935)

$1.49

$

Usually ships in 3-10 days

0

48

Husqvarna 810040500

Washer, Lock, Extra Heavy 5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

49

Husqvarna 532124792

Needle Bearing
(Superseded to 532004895)

$17.99

$

In Stock, Qty 20+

0

50

Husqvarna 532004222

Needle Bearing

$8.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532001529

Needle Bearing

$

$

Not available

52

Husqvarna 532008119

Needle Bearing

$21.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532004220

Thrust Bearing Race

$4.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532004209

3rd Reduction Pinion, Low

$

$

Not available

55

Husqvarna 532124668

4th Reduction Gear
(Superseded to 532004213)

$42.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532004442

3rd Reduction Pinion Spacer

$2.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532004195

2nd Reduction Gear Shaft

$46.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532004214

Final Drive Pinion

$

$

Not available

59

Husqvarna 532004194

1st Reduction Gear Shaft

$26.99

$

Usually ships in 3-10 days

0

60

Husqvarna 532007528

1st Reduction Shaft Spacer

$

$

Not available

61

Husqvarna 532124666

3rd Reduction Pinion High
(Superseded to 532004208)

$14.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532124665

2nd Reduction Gear

$

$

Not available

63

Husqvarna 532007398

Needle Bearing

$

$

Not available

64

Husqvarna 532124664

Low Speed Gear and 2nd Reduction Pinion Cluster
(Superseded to 532004203)

$

$

Not available

65

Husqvarna 532004204

Reverse Gear

$

$

Not available

66

Husqvarna 532002898

Key, Hi-Pro 1/8 x 17/32

$

$

Not available

67

Husqvarna 532004926

Snap Ring, Crescent Type

$2.99

$

Usually ships in 3-10 days

0

68

Husqvarna 532004205

Intermediate Speed Gear

$

$

Not available

69

Husqvarna 532125099

High Speed Gear
(Superseded to 583750601)

$

$

Not available

70

Husqvarna 532001370

Thrust Bearing Race

$6.49

$

In Stock, Qty 18

0

71

Husqvarna 532124681

Intermediate and High Speed Cluster Pinions
(Superseded to 532063369)

$31.99

$

Usually ships in 3-10 days

0

72

Husqvarna 532000208

Input Shaft

$103.99

$

Usually ships in 3-10 days

0

73

Husqvarna 532004201

Low Speed Pinion

$

$

Not available

74

Husqvarna 812000002

E-Ring

$7.49

$

In Stock, Qty 11

0

75

Husqvarna 532001153

Reverse Idler Gear

$

$

Not available

76

Husqvarna 532124862

Reverse Idler Thrust Washer

$

$

Not available

77

Husqvarna 532006803

Needle Bearing

$10.99

$

In Stock, Qty 5

0

78

Husqvarna 873220500

Nut, Hex 5/16-18

$6.49

$

Usually ships in 3-10 days

0

79

Husqvarna 532001167

Sealing Washer

$2.99

$

Usually ships in 3-10 days

0

80

Husqvarna 873360700

Nut, Hex, Jam 7/16-20
(Superseded to 873610700)

$7.49

$

Usually ships in 3-10 days

0

81

Husqvarna 532124675

Oil Seal
(Superseded to 532006270)

$

$

Not available

82

Husqvarna 532124696

Reverse Idler Shaft
(Superseded to 532007384)

$

$

Not available

84

Husqvarna 532005384

Gearshift Lever, Bent

$24.99

$

Usually ships in 3-10 days

0

85

Husqvarna 532002978

Gearshift Cap

$

$

Not available

86

Husqvarna 532124682

Gearshift Ball Cover and Pin
(Superseded to 532063385)

$

$

Not available

87

Husqvarna 532124704

Shift Lever Guide Ball, Keyed
(Superseded to 532008739)

$21.99

$

Usually ships in 3-10 days

0

88

Husqvarna 532004924

Spring

$6.49

$

Usually ships in 3-10 days

0

89

Husqvarna 819151516

Washer 15/32 x 15/16 x 16 Gauge

$

$

Not available

90

Husqvarna 532110542

Shift Mechanism Seal

$10.99

$

In Stock, only 4 left!

0

91

Husqvarna 819181511

Washer 9/16 x 15/16 x 12 Gauge

$2.99

$

Usually ships in 3-10 days

0

92

Husqvarna 532000075

Gearshift Gate and Reinforcement

$

$

Not available

93

Husqvarna 532006274

Shift Ball Cover Gasket

$6.49

$

Usually ships in 3-10 days

0

94

Husqvarna 876020412

Cotter Pin 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

95

Husqvarna 810040500

Washer, Lock 5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

96

Husqvarna 874760514

Bolt, Hex Head 5/16-18 UNC x 7/8
(Superseded to 596322201)

$3.99

$

In Stock, only 2 left!

0

97

Husqvarna 532124863

Gear Shift Lever Assembly

$

$

Not available

98

Husqvarna 532137982

Transaxle Assembly (Less Brake Drum and Shift Lever)

$

$

Not available
