GT 2000 (14W-3DM-010) - Cub Cadet Garden Tractor (2011) Kohler CH640-3051 Fuel System Parts Diagram

Garden Tractor

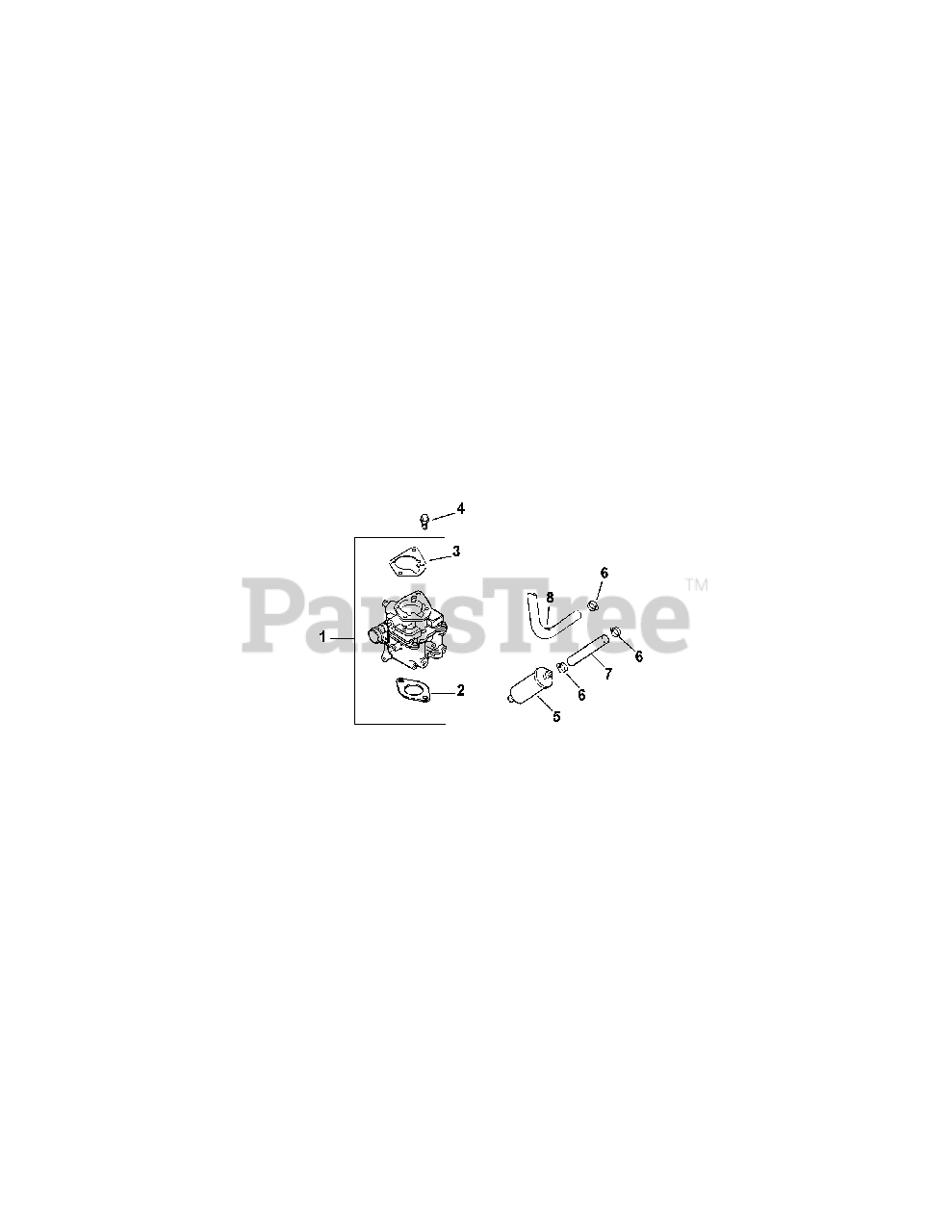

Kohler CH640-3051 Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-24-853-32

CARBURETOR W/GASKETS KSF
(Superseded to KH-24-853-309-S)

$

$

Not available

2

Cub Cadet KH-24-041-53-S

GASKET, CARBURETOR

$

$

Not available

3

Cub Cadet KH-24-041-06

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 20+

0

4

Cub Cadet KH-M-651025-S

SCREW, HEX FLANGE M6x1.0x25
(Superseded to KH-25-086-124-S)

$2.99

$

In Stock, only 4 left!

0

5

Cub Cadet KH-24-050-13-S

FILTER, FUEL
(Superseded to 2405013S1C)

$18.99

$

In Stock, Qty 20+

0

6

Cub Cadet KH-25-237-14-S

CLAMP, HOSE 1/2''
(Superseded to KH-25-237-31-S)

$5.49

$

In Stock, only 3 left!

0

7

Cub Cadet 751-10349-16

LINE, FUEL 10''
(Superseded to 751-22813-24)

$33.99

$

Usually ships in 3-6 days

0

8

Cub Cadet KH-24-353-12

LINE, FUEL 11''

$

$

Not available

Cub Cadet KH-24-518-24-S

LEAD, GROUND

Note: (solenoid to carb mounting screw) NOT ILLUSTRATED

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-01

KIT, REPAIR SOLENOID

Note: NOT ILLUSTRATED

$

$

Not available

Cub Cadet KH-24-757-02-S

KIT, REPAIR FLOAT

Note: NOT ILLUSTRATED

$154.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-03-S

KIT, REPAIR CARBURETOR

Note: NOT ILLUSTRATED

$129.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-07

KIT, REPAIR CHOKE

Note: NOT ILLUSTRATED

$

$

Not available

Cub Cadet KH-24-755-125-S

KIT, HIGH ALTITUDE (4,000 - 8,000 FT)

Note: NOT ILLUSTRATED

$75.99

$

In Stock, only 1 left!

0

Cub Cadet KH-47-154-01-S

CLIP, CABLE

Note: NOT ILLUSTRATED

$5.49

$

In Stock, only 2 left!

0
