GT 2000 (14W-3DM-210) - Cub Cadet Garden Tractor (2012) Kohler CH640-3051 Crankcase Parts Diagram

Garden Tractor

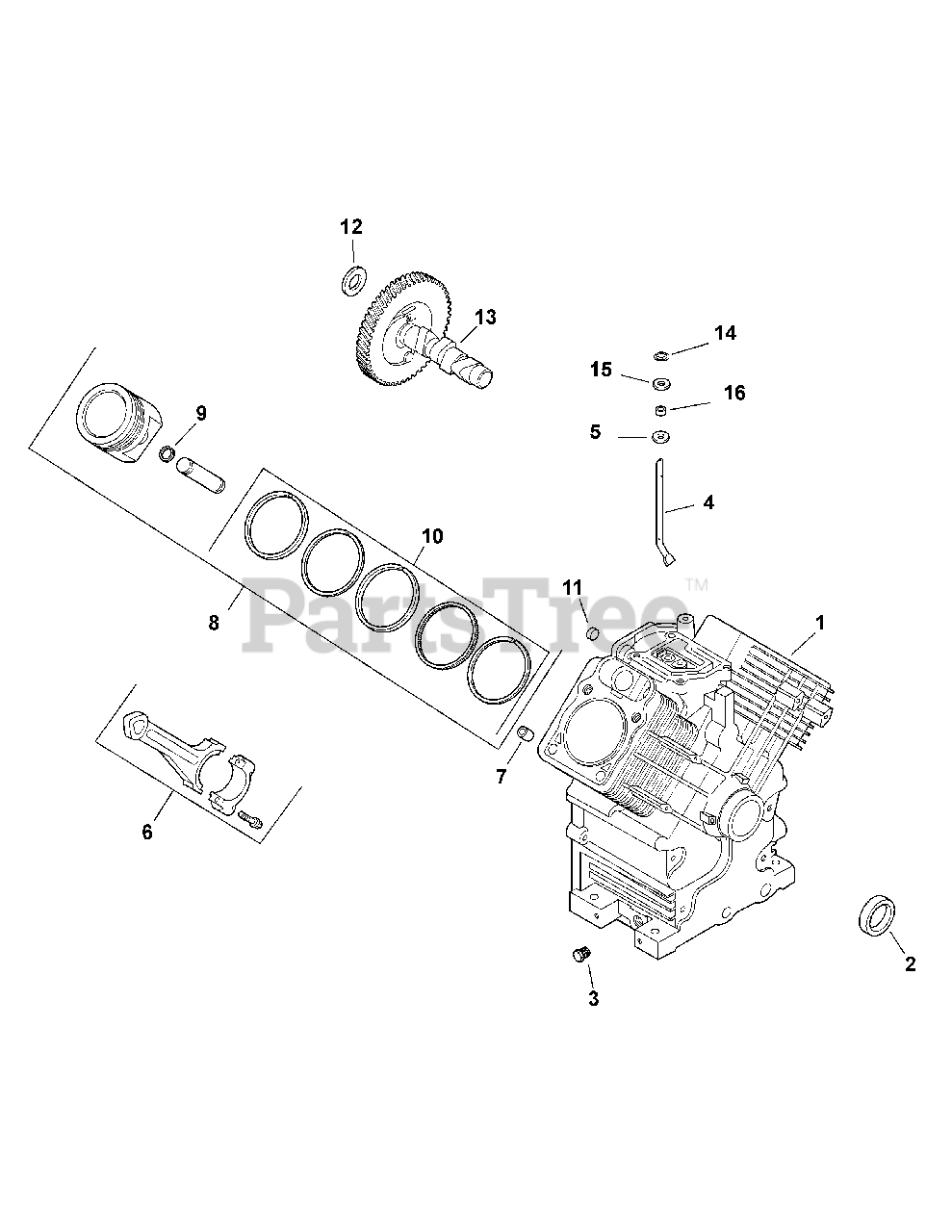

Kohler CH640-3051 Crankcase Parts Diagram

  • Title

1

Cub Cadet n/a

Crankcase

Note: (Use Shortblock)

$

$

Currently unavailable

2

Cub Cadet KH-24-032-19-S

Seal, Oil

$9.49

$

In Stock, Qty 20+

0

3

Cub Cadet KH-25-139-57-S

Plug, Pipe 3/8"

$2.49

$

In Stock, Qty 16

0

4

Cub Cadet KH-24-144-39-S

Shaft, Governor Cross

$58.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-24-468-15-S

Washer, Flat 11/32"

$2.49

$

In Stock, only 1 left!

0

6

Cub Cadet KH-24-067-28-S

Connecting Rod (STD)
(Superseded to KH-25-067-04-S)

$83.99

$

In Stock, Qty 20+

0

6

Cub Cadet KH-24-067-29-S

Connecting Rod (.25)
(Superseded to KH-25-067-05-S)

$83.99

$

In Stock, only 1 left!

0

7

Cub Cadet KH-24-380-16-S

Pin, Locating

$4.49

$

In Stock, only 3 left!

0

8

Cub Cadet KH-24-874-46-S

Kit, Piston w/ Ring (STD) (Includes 9, 10)

$

$

Not available

8

Cub Cadet KH-24-874-47-S

Kit, Piston w/ Ring (.08)

$

$

Not available

8

Cub Cadet KH-24-874-48-S

Kit, Piston w/ Ring (.25)

$

$

Not available

8

Cub Cadet KH-24-874-49-S

Kit, Piston w/ Ring (.50)

$

$

Not available

9

Cub Cadet KH-24-018-01-S

Retainer, Piston Pin

$3.49

$

In Stock, Qty 14

0

10

Cub Cadet KH-24-108-22-S

Ring Set, Piston (STD)

$

$

Not available

11

Cub Cadet KH-52-139-09-S

Plug, Cup

$4.99

$

In Stock, Qty 10

0

12

Cub Cadet KH-12-422-07-S

Camshaft Shim (White .028")

$4.49

$

In Stock, only 2 left!

0

12

Cub Cadet KH-12-422-08-S

Camshaft Shim (Blue .03")

$2.49

$

In Stock, only 2 left!

0

12

Cub Cadet KH-12-422-09-S

Camshaft Shim (Red .032")

$2.49

$

In Stock, only 1 left!

0

12

Cub Cadet KH-12-422-10-S

Camshaft Shim (Yellow .034")

$2.49

$

In Stock, Qty 11

0

12

Cub Cadet KH-12-422-11-S

Camshaft Shim (Green .036")

$2.49

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-12-422-12-S

Camshaft Shim (Gray .038")

$2.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-12-422-13-S

Camshaft Shim (Black .04")

$2.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-24-012-10-S

Kit, Camshaft
(Superseded to KH-24-012-23-S)

Note: (Inc. KH-25-357-14-S & KH-12-422-08-S)

$164.99

$

Usually ships in 3-6 days

0

14

Cub Cadet KH-24-018-09-S

Retainer, Ring

$2.49

$

In Stock, Qty 19

0

15

Cub Cadet KH-M-931010-S

Washer, Flat 9MM

$2.49

$

In Stock, Qty 7

0

16

Cub Cadet KH-28-032-09-S

Seal, Governor Cross Shaft

$4.49

$

In Stock, Qty 8

0

17

Cub Cadet KH-28-030-05-S

Bearing, Needle

$17.99

$

In Stock, only 2 left!

0

Cub Cadet KH-25-357-14-S

Camshaft Lubricant

Note: (Not Shown)

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-24-522-416

Short Block

Note: (Not Shown)

$1894.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-CH640-3051

Complete Engine
(Superseded to KH-CH640-3100)

Note: (Not Shown)

$

$

Not available
