GT-2000 - Echo String Trimmer (Original Version) Driveshaft, Handles, Throttle Parts Diagram

String Trimmer

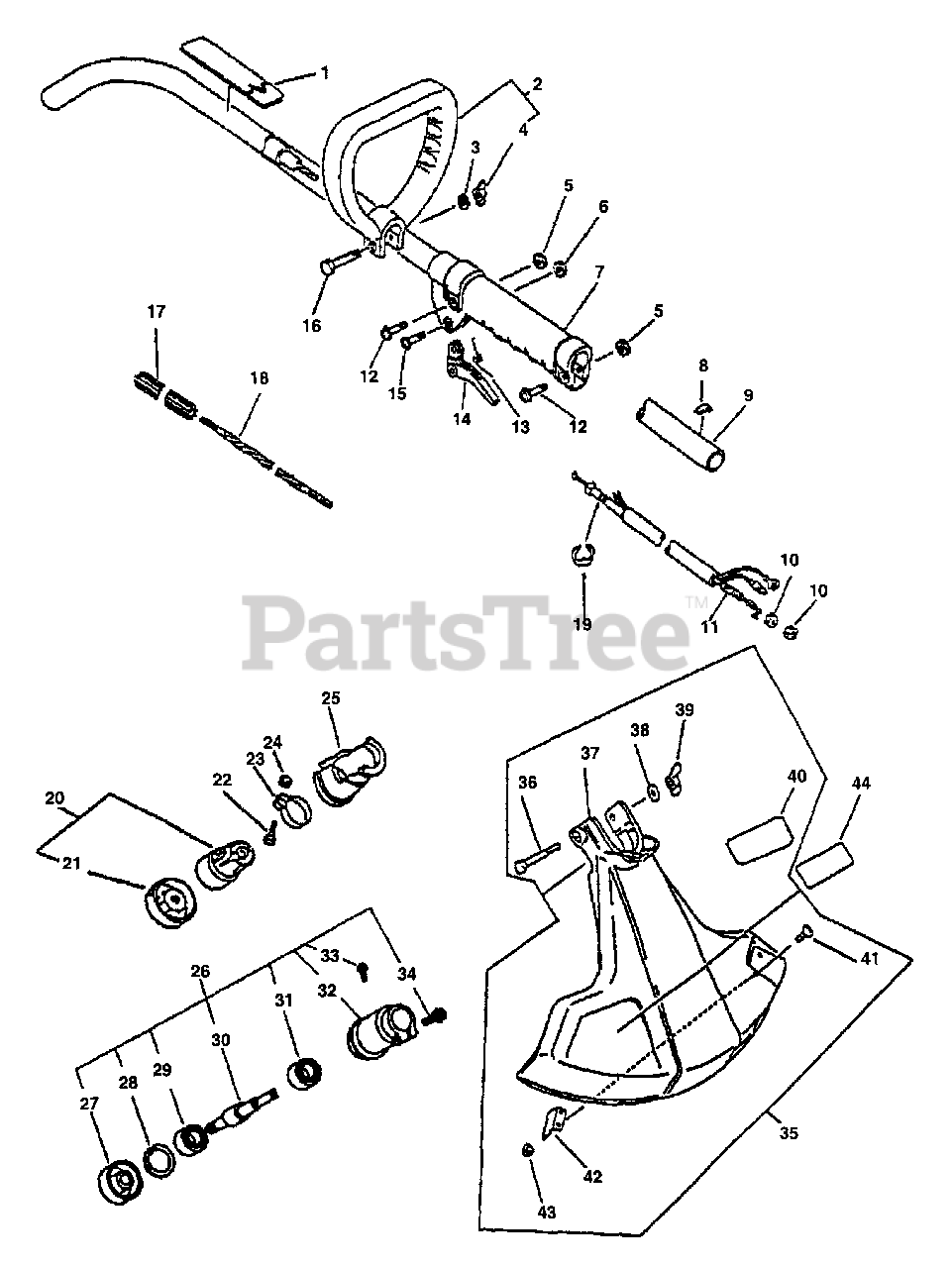

Driveshaft, Handles, Throttle Parts Diagram

  • Title

1

Echo 89031744530

LABEL, CAUTION

$1.99

$

Usually ships in 2-4 days

0

2

Echo 35160009630

HANDLE ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 3, 4 & 16

$

$

Not available

3

Echo 90052700006

WINGNUT - 6
(Superseded to Discontinued)

Note: S/N 001001 - 184857

$

$

Not available

3

Echo 90003000008

NUT - 1/4-20
(Superseded to 740000670)

Note: S/N 184858 & UP

$0.99

$

In Stock, Qty 8

0

4

Echo 90060000006

WASHER 6.5×11.5×0.8

Note: S/N 001001 - 184857

$0.99

$

In Stock, Qty 20+

0

4

Echo 90003500008

WASHER, 1/4"

Note: S/N 184858 & UP

$0.99

$

In Stock, Qty 10

0

5

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

6

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 14

0

7

Echo 35121344330

GRIP

$16.99

$

In Stock, only 2 left!

0

8

Echo 890152-04930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0

9

Echo 61060944330

MAIN PIPE ASSY

Note: Includes ITEM 17

$57.99

$

In Stock, Qty 7

0

10

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

11

Echo 17800144430

CABLE, THROTTLE

Note: S/N 001001 - 132710

$12.99

$

In Stock, only 2 left!

0

11

Echo 17800244430

CABLE, THROTTLE
(Superseded to 17800114430)

Note: S/N 132711 & UP

$12.99

$

In Stock, only 2 left!

0

12

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

13

Echo 17804306930

SPRING, THROTTLE

$1.49

$

In Stock, only 4 left!

0

14

Echo 17801048731

TRIGGER, THROTTLE
(Superseded to C450000070)

$1.99

$

In Stock, Qty 20+

0

15

Echo 17811005330

SCREW

$0.99

$

In Stock, Qty 11

0

16

Echo 90010006040

BOLT - 6×40

Note: S/N 001001 - 184857

$0.99

$

Usually ships in 2-4 days

0

16

Echo 90001708048

BOLT 1/4"-20×1-1/2"

Note: S/N 184858 & UP

$0.99

$

In Stock, Qty 7

0

17

Echo 61021744330

LINER - FLEXIBLE
(Superseded to C507000250)

$26.99

$

In Stock, only 3 left!

0

18

Echo 61001309630

DRIVESHAFT - FLEXIBLE
(Superseded to C506000030)

$16.99

$

In Stock, only 2 left!

0

19

Echo 90070000005

RING, RETAINING - 5

Note: S/N 001001 - 132710

$0.99

$

In Stock, Qty 9

0

19

Echo 90070000004

E-RING 4

Note: S/N 132711 & UP

$0.99

$

In Stock, Qty 20+

0

20

Echo 61040044330

GEAR CASE ASSY
(Superseded to 61040452430)

Note: Includes ITEM 21

$70.99

$

In Stock, only 2 left!

0

21

Echo 61030544330

PLATE, ADAPTER - UPPER

Note: S/N 001001 - 115632

$26.99

$

Usually ships in 2-4 days

0

22

Echo 90010505010

BOLT M5×10

Note: S/N 001001 - 115632

$1.49

$

In Stock, Qty 8

0

23

Echo 61044844330

BAND

Note: S/N 001001 - 115632

$8.49

$

Usually ships in 2-4 days

0

24

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

Note: S/N 001001 - 115632

$0.99

$

In Stock, Qty 20+

0

25

Echo 61044944330

BRACKET, BEARING CASE
(Superseded to Discontinued)

Note: S/N 001001 - 115632

$

$

Not available

26

Echo 61040452430

GEAR CASE ASSY
(Superseded to C056000010)

Note: (S/N 115633 & UP). INCLUDES ITEMS 27 - 34

$70.99

$

In Stock, only 2 left!

0

27

Echo 61030552430

PLATE, ADAPTER - UPPER
(Superseded to C535000240)

Note: S/N 115633 & UP

$22.99

$

In Stock, only 2 left!

0

28

Echo 90070200030

E-RING 30

Note: S/N 115633 & UP

$2.49

$

Usually ships in 2-4 days

0

29

Echo 90081106200

BEARING, BALL 6200

Note: S/N 115633 & UP

$7.99

$

In Stock, only 1 left!

0

30

Echo 61031052430

GEAR, SHAFT
(Superseded to C534000341)

Note: S/N 115633 & UP

$28.99

$

In Stock, only 3 left!

0

31

Echo 90081006200

BEARING, BALL 6200

Note: S/N 115633 & UP

$12.99

$

In Stock, only 1 left!

0

32

Echo 61041052430

CASE, GEAR
(Superseded to Discontinued)

Note: S/N 115633 & UP

$

$

Not available

33

Echo 900242-04010

SCREW 4×10

Note: S/N 115633 & UP

$0.99

$

In Stock, Qty 20+

0

34

Echo 90015205025

BOLT - 5×25

Note: S/N 115633 & UP

$1.49

$

In Stock, Qty 9

0

35

Echo 69900440630

DEBRIS SHIELD KIT
(Superseded to 69900452730)

Note: INCLUDES ITEMS 35 - 43

$23.99

$

In Stock, only 2 left!

0

36

Echo 90010006050

BOLT - 6×50

Note: S/N 001001 - 184857

$0.99

$

In Stock, Qty 5

0

36

Echo 90001708064

BOLT 1/4"-20×2"

Note: S/N 184858 & UP

$0.99

$

In Stock, Qty 10

0

37

Echo 69901040631

SHIELD
(Superseded to 69901044330)

$12.99

$

In Stock, Qty 20+

0

38

Echo 90060000006

WASHER 6.5×11.5×0.8

Note: S/N 001001 - 184857

$0.99

$

In Stock, Qty 20+

0

38

Echo 90003500008

WASHER, 1/4"

Note: S/N 184858 & UP

$0.99

$

In Stock, Qty 10

0

39

Echo 90052700006

WINGNUT - 6
(Superseded to Discontinued)

Note: S/N 001001 - 184857

$

$

Not available

39

Echo 90003000008

NUT - 1/4-20
(Superseded to 740000670)

Note: S/N 184858 & UP

$0.99

$

In Stock, Qty 8

0

40

Echo 89016844330

LABEL, CAUTION

$3.99

$

Usually ships in 2-4 days

0

41

Echo 900242-05016

SCREW 5×16

$0.99

$

In Stock, only 4 left!

0

42

Echo 69901644330

CUTTER, LINE
(Superseded to C554000080)

$4.49

$

In Stock, Qty 20+

0

43

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

44

Echo 89011848830

LABEL, ECHO
(Superseded to X502000320)

$0.99

$

In Stock, Qty 5

0
