GT-2000 - Echo String Trimmer (Type 1E) Intake, Air Cleaner, Exhaust, Fuel System Parts Diagram

String Trimmer (Type 1E)

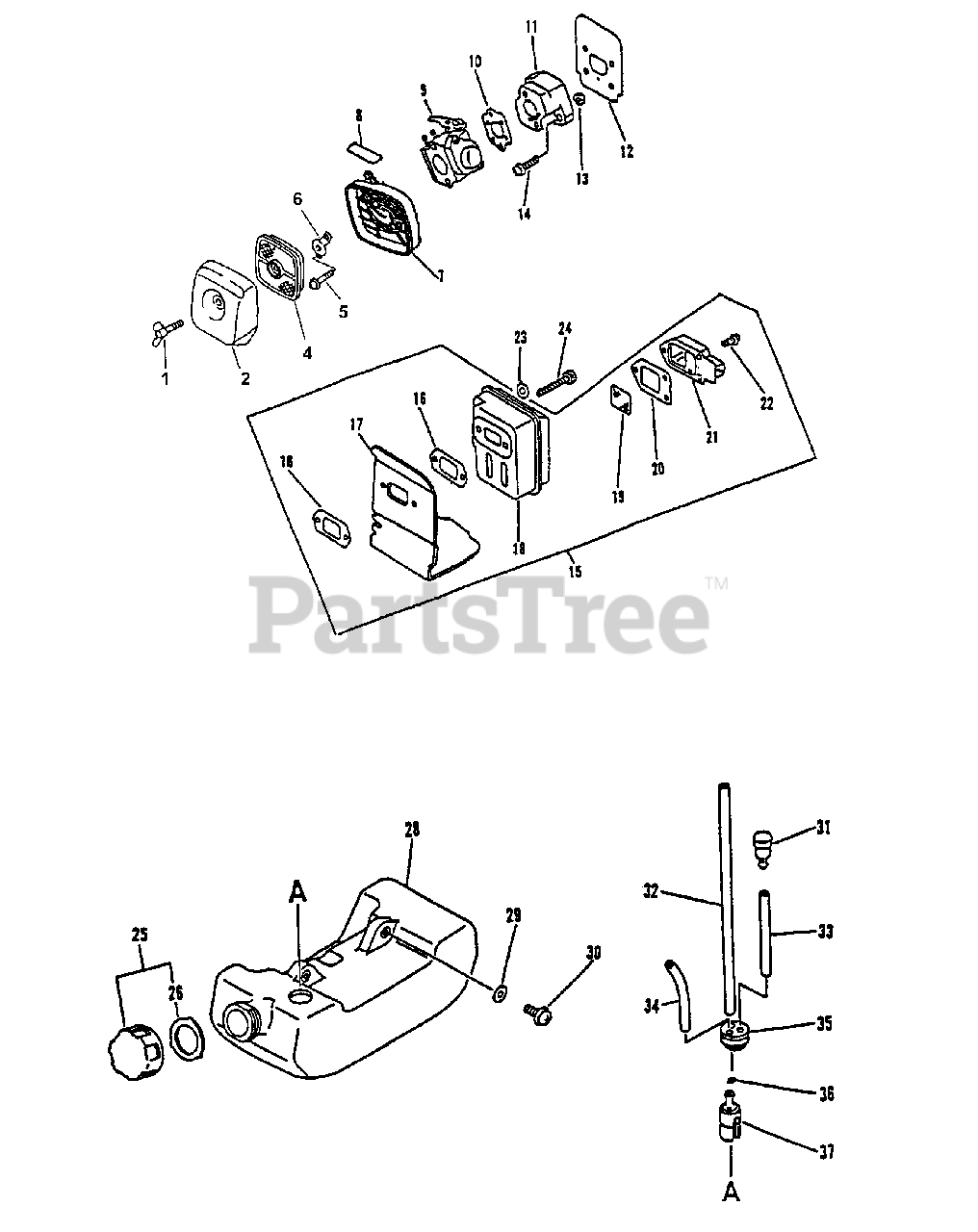

Intake, Air Cleaner, Exhaust, Fuel System Parts Diagram

  • Title

1

Echo 21041752730

BOLT, WING 5×20

$1.99

$

In Stock, Qty 14

0

2

Echo 13031306563

COVER, AIR FILTER - GRAY

$7.99

$

In Stock, Qty 20+

0

4

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

$8.99

$

In Stock, Qty 20+

0

5

Echo 90024205065

SCREW 5×65

$0.99

$

In Stock, Qty 20+

0

6

Echo 12901152730

PLATE, PREVENT

$4.49

$

In Stock, Qty 5

0

7

Echo 13030706561

AIR FILTER CASE ASSY
(Superseded to P021002921)

$14.99

$

In Stock, Qty 9

0

8

Echo 89012106360

LABEL, CHOKE

$1.99

$

In Stock, only 4 left!

0

9

Echo 12520049030

CARBURETOR - C1U-K47
(Superseded to 12520013311)

Note: S/N 001001 - 229418

$94.99

$

In Stock, Qty 7

0

9

Echo 12520013312

CARBURETOR - C1U-K52
(Superseded to 12520013313)

Note: S/N 229419 & UP

$94.99

$

In Stock, Qty 7

0

10

Echo 130016-42031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

11

Echo 130017-42031

INSULATOR, INTAKE

$11.99

$

In Stock, Qty 8

0

12

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

$2.99

$

In Stock, Qty 12

0

13

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

14

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 10

0

15

Echo 14580042031

MUFFLER ASSY
(Superseded to 14580642030)

Note: Includes ITEMS 16-22

$55.99

$

In Stock, only 1 left!

0

16

Echo V104000160

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

17

Echo 14587144331

COVER, EXHAUST
(Superseded to 14587152130)

$5.99

$

In Stock, only 2 left!

0

18

Echo 145806-42030

MUFFLER

$55.99

$

In Stock, only 1 left!

0

19

Echo 14586240630

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 6

0

20

Echo 145866-42031

GASKET, EXHAUST

$2.99

$

In Stock, only 2 left!

0

21

Echo 14586354130

GUIDE, EXHAUST - INNER

$4.49

$

Usually ships in 2-4 days

0

22

Echo 90023804010

SCREW 4×10

$0.99

$

In Stock, only 2 left!

0

23

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

24

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0

25

Echo 13100448730

CAP ASSY
(Superseded to 13100455830)

Note: Includes ITEM 26

$5.49

$

In Stock, only 2 left!

0

26

Echo 13101640930

GASKET, FUEL CAP

$3.49

$

In Stock, Qty 8

0

28

Echo 13100544330

TANK, FUEL
(Superseded to 13100544331)

$21.99

$

In Stock, Qty 6

0

29

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

30

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

31

Echo 13130040630

VENT ASSY
(Superseded to 13130056430)

$8.99

$

In Stock, Qty 7

0

32

Echo V471001190

PIPE, FUEL 3x-5x-180
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

33

Echo V471001200

PIPE, FUEL 3x-5x-70 BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

34

Echo 13201256030

PIPE, FUEL 3×6×80 CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 20+

0

35

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

36

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 8

0

37

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0
