GT-2000 EZR - Echo String Trimmer (SN: 03001001 - 03999999) Main Pipe, Handles, Throttle, Driveshaft Parts Diagram

String Trimmer

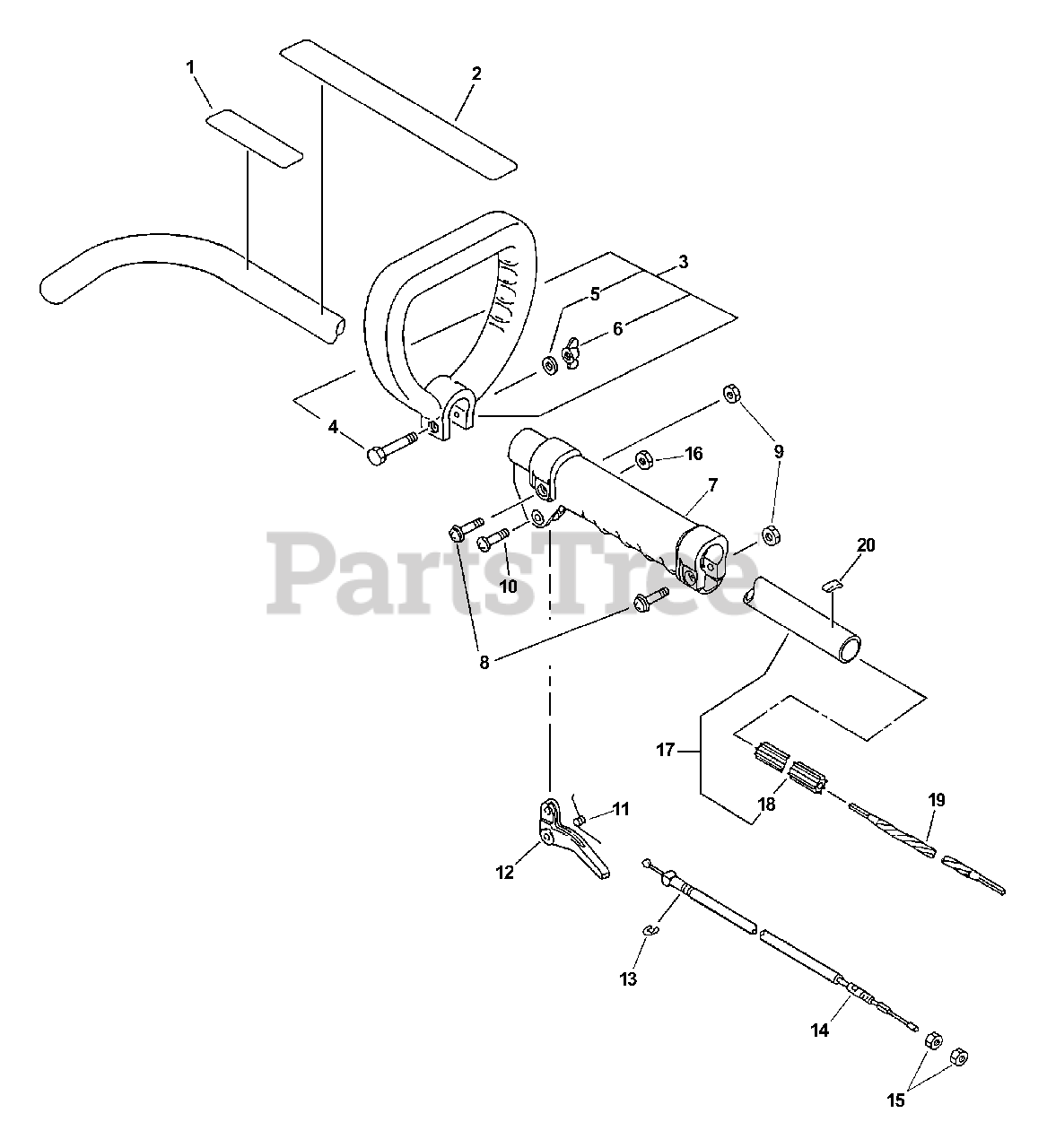

Main Pipe, Handles, Throttle, Driveshaft Parts Diagram

  • Title

1

Echo 89022809560

LABEL - CAUTION -- SPANISH

$0.99

$

In Stock, only 2 left!

0

2

Echo 89031744530

LABEL - CAUTION

$1.99

$

Usually ships in 2-4 days

0

2

Echo 89031748731

LABEL - CAUTION
(Superseded to X505002500)

$7.49

$

In Stock, Qty 20+

0

3

Echo 35160044330

HANDLE ASSY - FRONT

Note: INCLUDES ITEMS 4-6

$24.99

$

In Stock, only 2 left!

0

4

Echo 90001708048

BOLT - 1/4-20 X 1-1/2"

$0.99

$

In Stock, Qty 7

0

5

Echo 90003500008

WASHER - 1/4"

$0.99

$

In Stock, Qty 10

0

6

Echo 90003300008

WINGNUT - 1/4-20

$0.99

$

In Stock, Qty 10

0

7

Echo 35121344330

GRIP, HANDLE

$16.99

$

In Stock, only 2 left!

0

8

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

9

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

10

Echo 17811005330

SCREW - 5X30

$0.99

$

In Stock, Qty 14

0

11

Echo 17804306930

SPRING, TRIGGER

$1.49

$

In Stock, Qty 5

0

12

Echo 17801048731

TRIGGER, THROTTLE
(Superseded to C450000070)

$1.99

$

In Stock, Qty 20+

0

13

Echo 90070000005

RING, RETAINING - 5

$0.99

$

In Stock, only 2 left!

0

14

Echo 17800144430

CABLE, THROTTLE

$12.99

$

In Stock, only 2 left!

0

15

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 20+

0

16

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

17

Echo 61020644330

MAIN PIPE ASSY
(Superseded to 61060944330)

Note: Includes ITEM 18

$57.99

$

In Stock, Qty 7

0

18

Echo 61021744330

LINER - FLEXIBLE
(Superseded to C507000250)

$26.99

$

In Stock, only 3 left!

0

19

Echo C506000030

DRIVESHAFT - FLEXIBLE

$16.99

$

In Stock, only 2 left!

0

20

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 14

0
