GT-2000 R - Echo String Trimmer (Type 1E) Ignition, Fan Case Parts Diagram

String Trimmer (Type 1E)

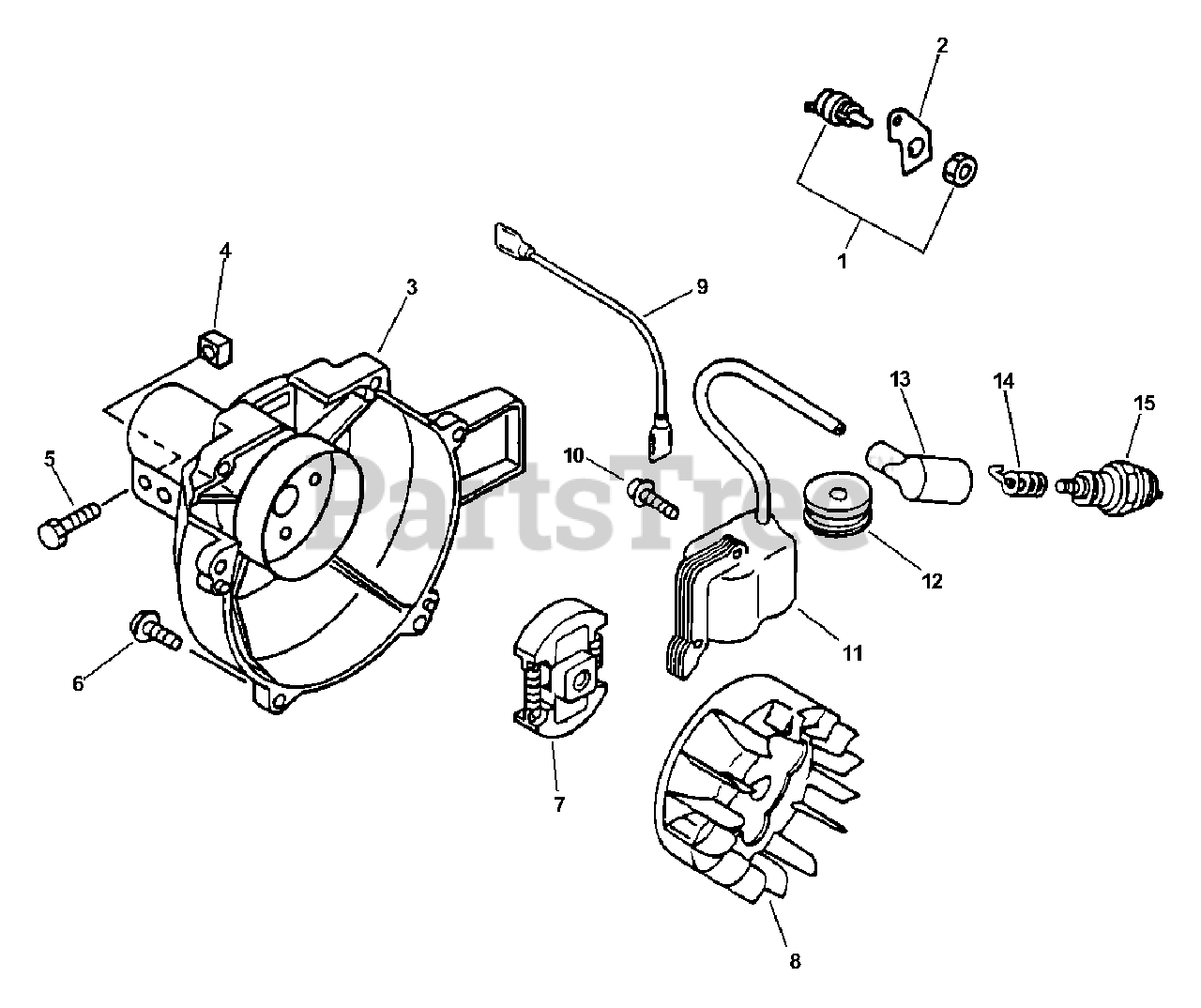

Ignition, Fan Case Parts Diagram

  • Title

1

Echo 16340003460

SWITCH, ON-OFF

$9.99

$

In Stock, Qty 10

0

2

Echo 16381044330

BRACKET, SWITCH

$3.49

$

Usually ships in 2-4 days

0

3

Echo 10150348730

FAN CASE ASSY
(Superseded to 10150356630)

$

$

Not available

4

Echo 90056550005

NUT - 5 -- SQUARE

$0.99

$

In Stock, Qty 20+

0

5

Echo 900142-05028

BOLT 5×28

$0.99

$

In Stock, Qty 20+

0

6

Echo 90016304018

BOLT 4×18

$1.49

$

In Stock, Qty 8

0

7

Echo 17500056830

CLUTCH ASSY
(Superseded to 17500056831)

$32.99

$

In Stock, only 1 left!

0

8

Echo 15680109660

FLYWHEEL

$90.99

$

Usually ships in 2-4 days

0

9

Echo 16202152830

LEAD
(Superseded to V485001080)

$4.49

$

In Stock, only 2 left!

0

10

Echo 90016204022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

11

Echo 15662652730

COIL, IGNITION
(Superseded to 15662652731)

$

$

Not available

12

Echo 150112-44330

GROMMET

$9.49

$

In Stock, Qty 8

0

13

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 10

0

14

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

15

Echo 15901010630

SPARK PLUG - BPM7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

15

Echo 159017-10230

SPARK PLUG - RCJ7Y

Note: CANADA MODELS

$4.99

$

In Stock, Qty 20+

0
