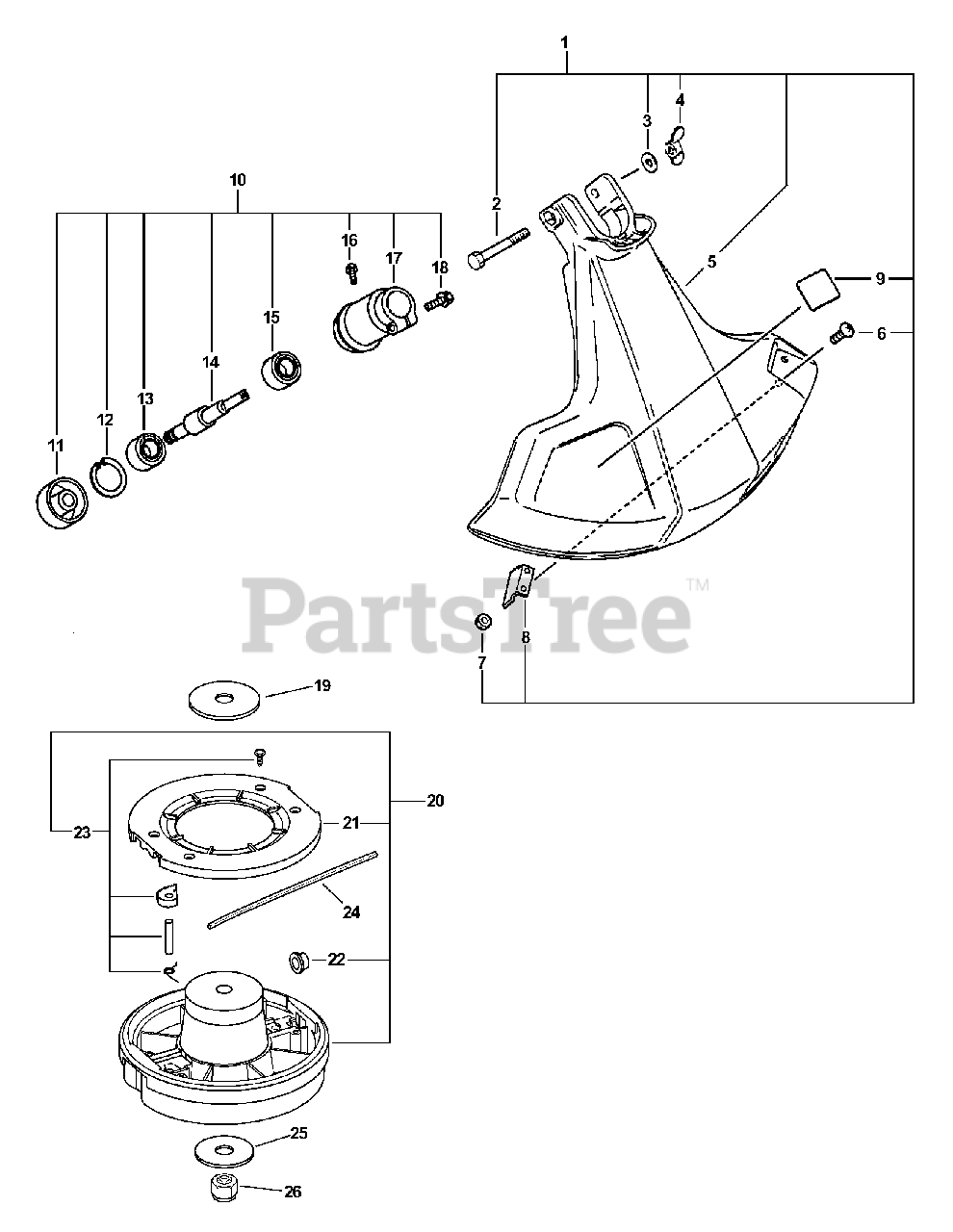

GT-2000 R - Echo String Trimmer (Type 1E) Shield, Gear Case, Cutting Head Parts Diagram

String Trimmer (Type 1E)

Shield, Gear Case, Cutting Head Parts Diagram

  • Title

1

Echo 69900452730

DEBRIS SHIELD KIT
(Superseded to P021016070)

Note: INCLUDES ITEMS 2-9

$19.99

$

In Stock, Qty 8

0

2

Echo 90001708064

BOLT - 1/4-20 X 2"

$0.99

$

In Stock, Qty 20+

0

3

Echo 90003500008

WASHER - 1/4"

$0.99

$

In Stock, Qty 16

0

4

Echo 90003300008

WINGNUT - 1/4-20

$0.99

$

In Stock, Qty 20+

0

5

Echo 69901044330

SHIELD, DEBRIS - PLASTIC
(Superseded to 69901044331)

$10.99

$

Usually ships in 2-4 days

0

6

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

7

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

8

Echo 69901644330

KNIFE, TRIMMER LINE
(Superseded to C554000080)

$3.99

$

In Stock, Qty 20+

0

9

Echo 89016844330

LABEL - CAUTION

$2.99

$

Usually ships in 2-4 days

0

10

Echo 61040452430

GEAR CASE ASSY
(Superseded to C056000010)

Note: INCLUDES ITEM 11-18

$58.99

$

In Stock, Qty 8

0

11

Echo 61030552430

ADAPTOR, BLADE - UPPER
(Superseded to C535000240)

$22.99

$

In Stock, only 4 left!

0

12

Echo 90070200030

RING, RETAINING - 30

$2.49

$

In Stock, only 4 left!

0

13

Echo 90081106201

BEARING, BALL - 6201
(Superseded to Discontinued)

$

$

Not available

14

Echo 61031052430

GEAR - SHAFT
(Superseded to C534000341)

$23.99

$

In Stock, only 1 left!

0

15

Echo 90081006200

BEARING, BALL - 6200

$10.99

$

Usually ships in 2-4 days

0

16

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

17

Echo 61041052430

CASE, GEAR
(Superseded to Discontinued)

$

$

Not available

18

Echo 90015205025

BOLT - 5X25

$1.49

$

In Stock, Qty 9

0

19

Echo V307000110

WASHER - 10

$0.99

$

In Stock, Qty 18

0

20

Echo X480000020

TWO LINE RAPID LOADER ATTACHMENT
(Superseded to X480000021)

Note: Includes ITEMS 21-23

$40.99

$

Usually ships in 2-4 days

0

21

Echo P022001070

COVER - TOP

$8.49

$

In Stock, Qty 16

0

22

Echo P022001080

EYELET

$7.99

$

In Stock, Qty 16

0

23

Echo P022001091

REPAIR KIT

Note: INCLUDES 3 OF EACH

$15.99

$

In Stock, Qty 20+

0

24

Echo 99922203490

LINE, CUTTING - 0.80" (20 PER PACKAGE)
(Superseded to 102212131)

$5.49

$

Usually ships in 2-4 days

0

25

Echo V307000080

WASHER - 8

$0.99

$

In Stock, Qty 10

0

26

Echo V266000030

LOCKNUT

$0.99

$

In Stock, Qty 20+

0
