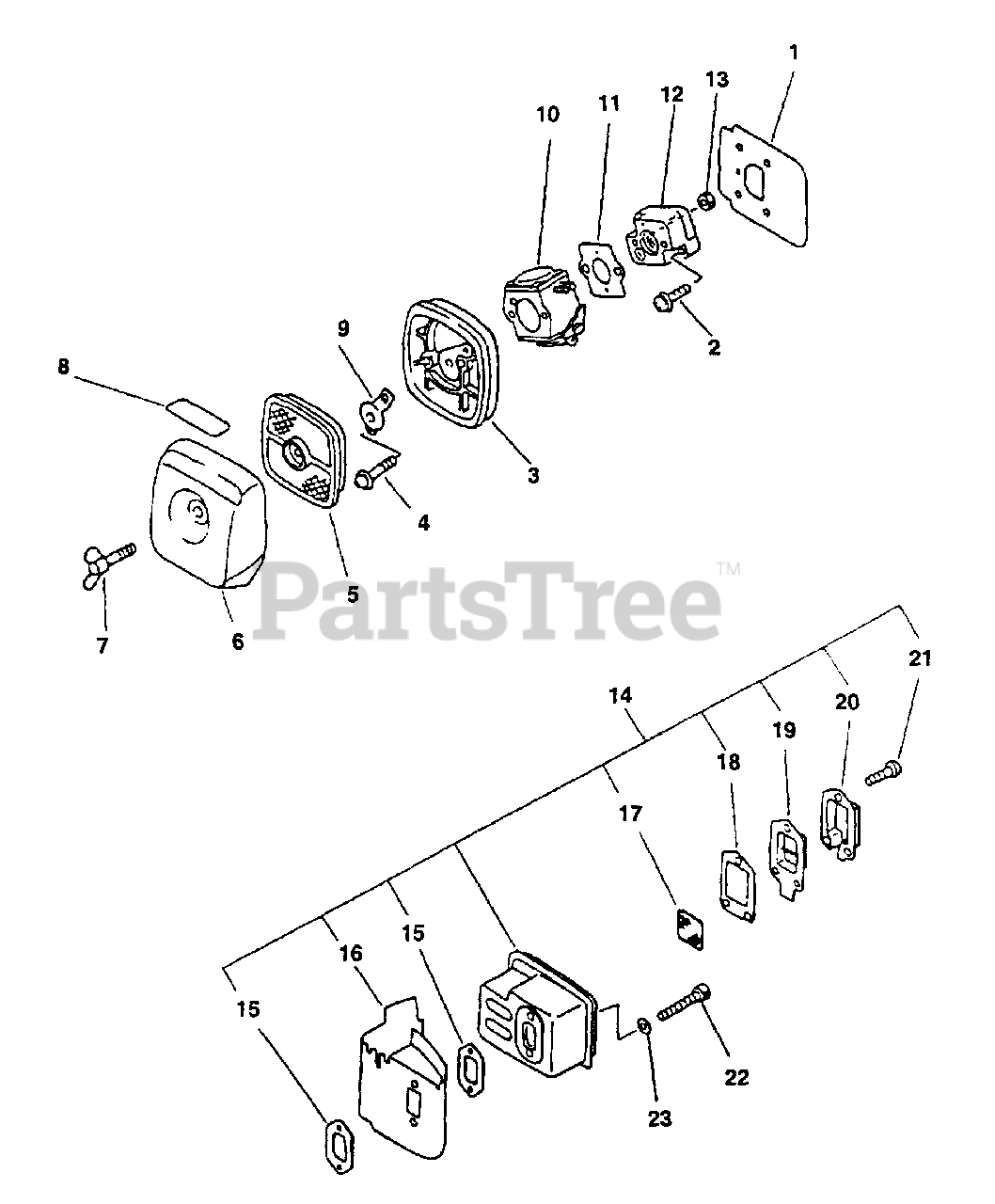

GT-2000 SB - Echo String Trimmer (Type 1E) Intake, Air Filter, Exhaust Parts Diagram

String Trimmer (Type 1E)

Intake, Air Filter, Exhaust Parts Diagram

  • Title

1

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, Qty 20+

0

2

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, Qty 20+

0

3

Echo 13030706561

AIR FILTER CASE ASSY
(Superseded to P021002921)

$13.99

$

In Stock, Qty 11

0

4

Echo 90024205065

SCREW - 5X65

$0.99

$

In Stock, Qty 20+

0

5

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

$7.99

$

In Stock, Qty 20+

0

6

Echo 13031306563

COVER, AIR FILTER - GRAY

$7.49

$

In Stock, Qty 20+

0

7

Echo 21041752730

THUMBSCREW

$1.49

$

In Stock, Qty 20+

0

8

Echo 89012106360

LABEL - CHOKE

$1.99

$

In Stock, Qty 9

0

9

Echo 12901152730

PLATE, PREVENT

$3.99

$

In Stock, Qty 20+

0

10

Echo 12520049030

CARBURETOR C1U-K47
(Superseded to 12520013311)

Note: TYPE 1 S/N 001001 - 007393. TYPE 1E S/N 001001 - 501000

$87.99

$

In Stock, Qty 18

0

10

Echo 12520013312

CARBURETOR C1U-K52
(Superseded to 12520013313)

Note: TYPE 1 S/N 007394 & UP. TYPE 1E S/N 501001 & UP

$87.99

$

In Stock, Qty 18

0

11

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

12

Echo 13001742031

INSULATOR, INTAKE

$10.99

$

In Stock, only 1 left!

0

13

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

14

Echo 14580054130

MUFFLER ASSY
(Superseded to 14580054131)

Note: Includes ITEMS 15-21

$68.99

$

Usually ships in 2-4 days

0

15

Echo V104000160

GASKET, EXHAUST

$2.49

$

In Stock, Qty 5

0

16

Echo 14587144331

COVER, EXHAUST
(Superseded to 14587152130)

$5.49

$

In Stock, Qty 7

0

17

Echo 14586240630

SCREEN, SPARK ARRESTOR

$2.49

$

In Stock, Qty 20+

0

18

Echo 14586642031

GASKET, EXHAUST

$2.99

$

In Stock, Qty 7

0

19

Echo 14587642030

GASKET, EXHAUST - INNER

$4.49

$

In Stock, only 2 left!

0

20

Echo 14586354130

GUIDE, EXHAUST - OUTER

$4.49

$

Usually ships in 2-4 days

0

21

Echo 90023804010

SCREW - 4X10

$0.99

$

In Stock, Qty 15

0

22

Echo 90010505055

SCREW - 5X55

$1.99

$

In Stock, Qty 20+

0

23

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

Echo 88900042031

GASKET KIT
(Superseded to 88900042032)

$18.99

$

In Stock, only 2 left!

0

Echo 90008

RePower FILTER KIT
(Superseded to 90152)

$20.99

$

In Stock, Qty 20+

0
