GT-201 - Echo String Trimmer (SN: 02001001 - 02999999) Engine, Short Block -- SB1048 Parts Diagram

String Trimmer

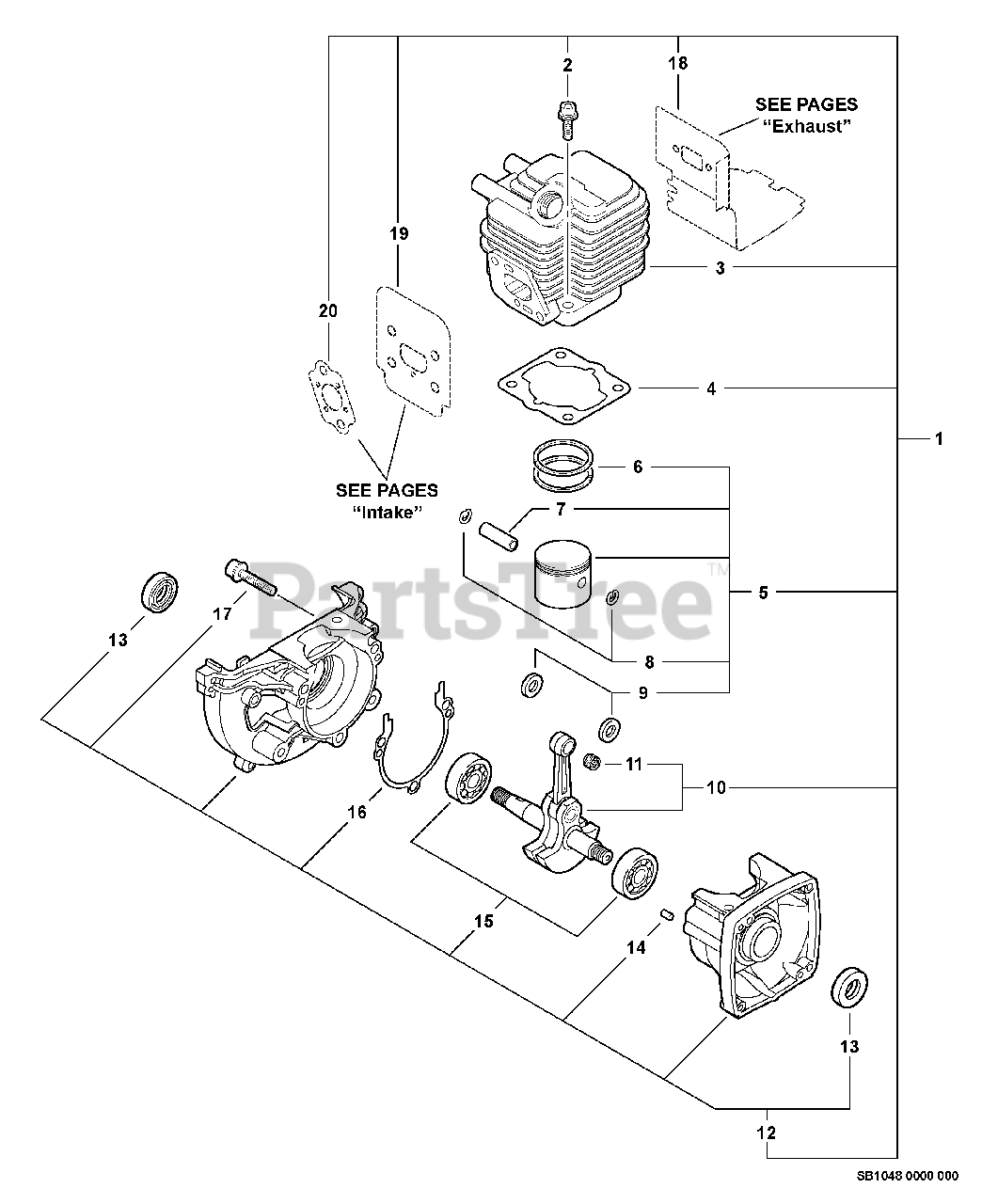

Engine, Short Block -- SB1048 Parts Diagram

  • Title

1

Echo SB1048

SHORT BLOCK -- SB1048
(Superseded to Discontinued)

Note: Includes ITEM 2-20

$

$

Not available

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

3

Echo A130000101

CYLINDER

$128.99

$

Usually ships in 2-4 days

0

4

Echo V100000020

GASKET, CYLINDER
(Superseded to Discontinued)

$

$

Not available

5

Echo P021001101

PISTON KIT
(Superseded to P021001102)

Note: Includes ITEMS 6-9

$86.99

$

In Stock, only 3 left!

0

6

Echo A101000000

RING, PISTON

$9.49

$

In Stock, Qty 20+

0

7

Echo 10001311520

PIN, PISTON

$7.99

$

Usually ships in 2-4 days

0

8

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

9

Echo 10001411520

SPACER, PISTON

$3.99

$

In Stock, Qty 9

0

10

Echo A011000101

CRANKSHAFT ASSY
(Superseded to A011001410)

Note: Includes ITEM 11

$172.99

$

Usually ships in 2-4 days

0

11

Echo V553000010

BEARING, NEEDLE - 8

$11.99

$

In Stock, only 2 left!

0

12

Echo 10020452132

CRANKCASE KIT
(Superseded to 10020452133)

Note: Includes ITEMS 13-17

$156.99

$

Usually ships in 2-4 days

0

13

Echo 10021242031

SEAL, OIL

$7.49

$

In Stock, Qty 16

0

14

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

15

Echo 9403536201

BEARING, BALL - 6201

$8.99

$

In Stock, Qty 19

0

16

Echo 10024242030

GASKET, CRANKCASE

$1.49

$

In Stock, Qty 20+

0

17

Echo 90016205028

SCREW - 5X28

$2.49

$

In Stock, Qty 11

0

18

------------------

SHIELD, EXHAUST

$

$

Not available

19

------------------

SHIELD, INTAKE

$

$

Not available

20

------------------

GASKET, INTAKE

$

$

Not available
