GT-201 R - Echo String Trimmer (SN: 02001001 - 02999999) Carburetor -- C1U-K58 Parts Diagram

String Trimmer

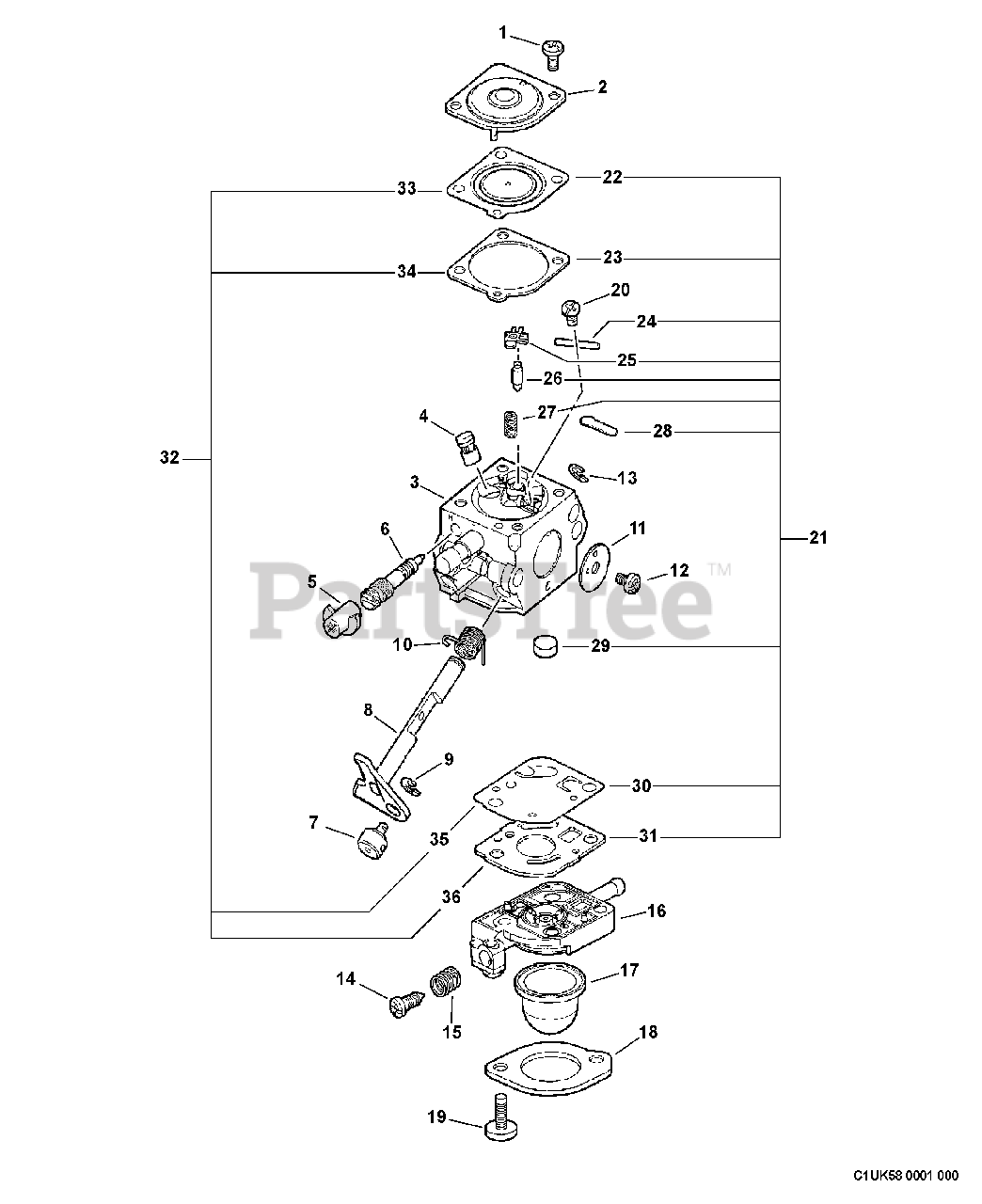

Carburetor -- C1U-K58 Parts Diagram

  • Title

Echo A021000110

CARBURETOR - C1U-K58
(Superseded to A021000111)

$92.99

$

In Stock, only 2 left!

0

1

Echo 125344-52130

SCREW

$0.99

$

In Stock, Qty 10

0

2

Echo 125342-13210

COVER, METERING DIAPHRAGM
(Superseded to 12534252130)

$4.99

$

In Stock, only 2 left!

0

3

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

4

Echo 12537613120

NOZZLE, CHECK VALVE

$7.49

$

Usually ships in 2-4 days

0

5

Echo 12532908560

CAP, LIMITER

$2.49

$

In Stock, only 3 left!

0

6

Echo P005000400

NEEDLE, HIGH SPEED

$6.99

$

Usually ships in 2-4 days

0

7

Echo 125372-42030

SWIVEL

$5.49

$

Usually ships in 2-4 days

0

8

Echo P005000390

SHAFT, THROTTLE

$7.49

$

Usually ships in 2-4 days

0

9

Echo 125327-13930

CLIP

$0.99

$

In Stock, Qty 5

0

10

Echo 125313-42030

SPRING, THROTTLE RETURN

$1.49

$

In Stock, Qty 12

0

11

Echo 12531649030

VALVE, THROTTLE

$2.99

$

Usually ships in 2-4 days

0

12

Echo 125314-13930

SCREW

$1.49

$

Usually ships in 2-4 days

0

13

Echo 125327-15130

E-RING

$0.99

$

In Stock, Qty 5

0

14

Echo 12533406960

SCREW, THROTTLE ADJUST

$5.99

$

Usually ships in 2-4 days

0

15

Echo 12533306960

SPRING

$1.49

$

In Stock, Qty 8

0

16

Echo P005000990

BODY ASSY, PURGE

$27.99

$

In Stock, only 2 left!

0

17

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$7.49

$

In Stock, Qty 20+

0

18

Echo 12536311610

RETAINER

$2.49

$

In Stock, Qty 14

0

19

Echo 12531011610

SCREW

$1.99

$

In Stock, Qty 5

0

20

Echo 125339-42030

SCREW

$0.99

$

In Stock, Qty 11

0

21

Echo P005000580

REPAIR KIT
(Superseded to 12530013310)

Note: Includes ITEMS 22-31

$21.99

$

In Stock, only 2 left!

0

22

DIAPHRAGM, METERING

$

$

Not available

23

GASKET, DIAPHRAGM

$

$

Not available

24

PIN, METERING LEVER

$

$

Not available

25

LEVER, METERING

$

$

Not available

26

VALVE, INLET NEEDLE

$

$

Not available

27

SPRING, METERING LEVER

$

$

Not available

28

PLUG, WELCH

$

$

Not available

29

STRAINER

$

$

Not available

30

DIAPHRAGM, PUMP

$

$

Not available

31

GASKET, PUMP

$

$

Not available

32

Echo 12530313310

GASKET / DIAPHRAGM KIT

Note: Includes ITEMS 33-36

$10.99

$

In Stock, Qty 5

0

33

DIAPHRAGM, METERING

$

$

Not available

34

GASKET, DIAPHRAGM

$

$

Not available

35

DIAPHRAGM, PUMP

$

$

Not available

36

GASKET, PUMP

$

$

Not available
