GT 2042 (14A-3DMS010) - Cub Cadet 42" Garden Tractor (2014) Seat & Fender Assembly Parts Diagram

42" Garden Tractor

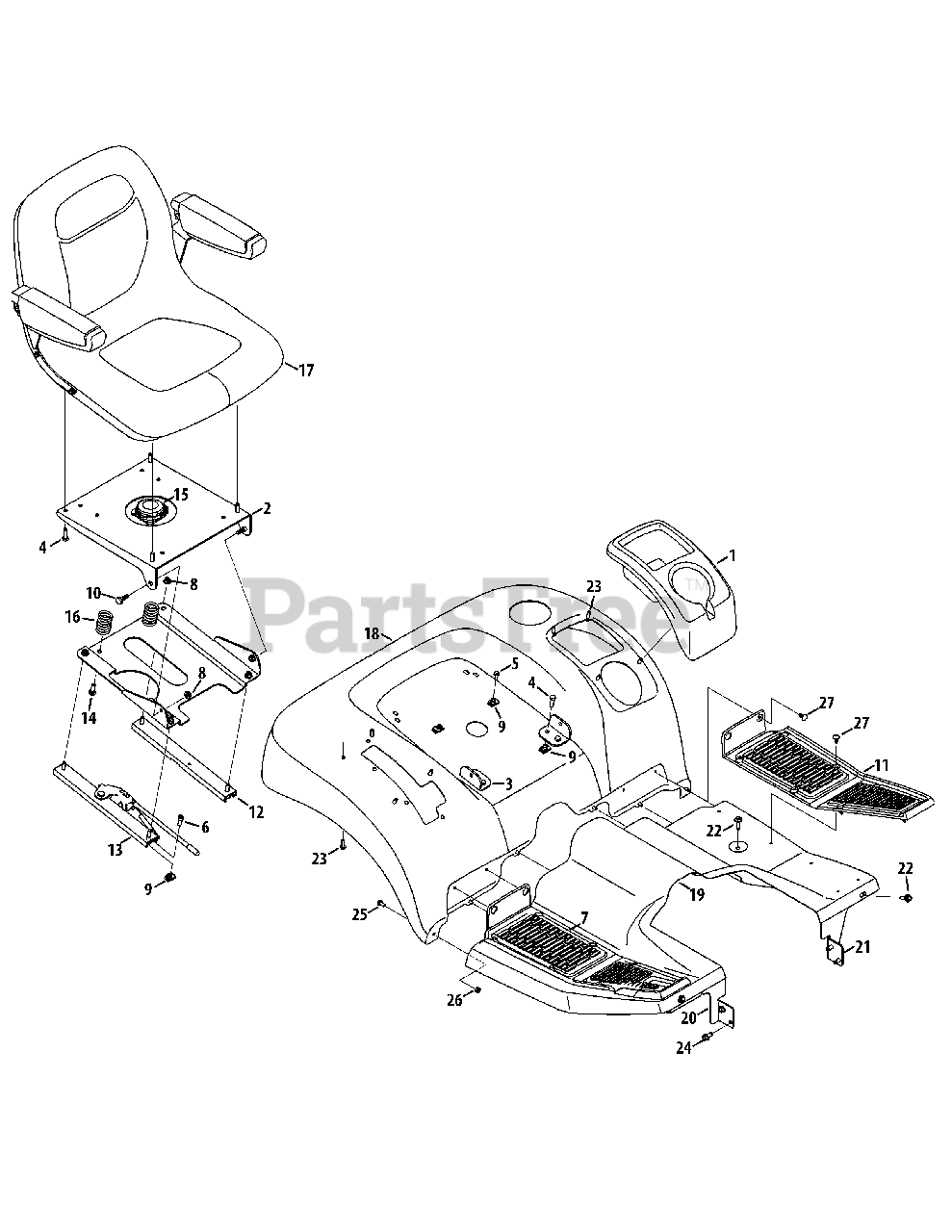

Seat & Fender Assembly Parts Diagram

  • Title

1

Cub Cadet 731-07912

LH Cup/Compartment Cover

$31.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-08025A-4021

Seat Mount Plate

$98.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-08164-4021

Suspension Seat Front Pivot Bracket

$13.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0376

Hex Screw, 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-04043

Hex Flange Screw, 5/16-18

$4.99

$

In Stock, only 2 left!

0

6

Cub Cadet 710-1314A

Socket Screw, 5/16-18 x .750

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet 735-04256

RH Floor Pad

$40.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 926-0211

U-Nut, 5/16-18
(Superseded to 726-0211)

$4.99

$

In Stock, only 2 left!

0

10

Cub Cadet 938-0296

Shoulder Screw, 5/16-18 x .437 x .268
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 735-04258

LH Floor Pad

$40.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 703-08178

Seat Track w/o Latch

$58.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 703-08179A

Seat Track w/ Latch

$79.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-0276

Carriage Screw, 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 725-05208

Seat Switch, 1/4

$50.99

$

In Stock, only 2 left!

0

16

Cub Cadet 732-0735A

Compression Spring

$31.99

$

In Stock, Qty 5

0

17

Cub Cadet 757-04140

Seat

$432.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 759-04289

Arm Rest Kit w/screws

Note: (not shown)

$183.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 759-04290

Arm Rest Screw Kit

Note: (not shown)

$38.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 703-07868-4021

Fender
(Superseded to 703-07868A-4021)

$514.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 703-07910-4021

Running Board

$257.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 703-08042A-0637

RH Running Board Bracket
(Superseded to 703-08042B-0637)

$26.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 703-08499-0637

LH Running Board Bracket
(Superseded to 703-08499A-0637)

$30.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 710-0602

Hex Washer Screw, 5/16-18 x 1.000

$4.99

$

In Stock, Qty 20+

0

23

Cub Cadet 710-0895

Hex Washer Screw, 1/4-15 x .750

$6.99

$

In Stock, Qty 20+

0

24

Cub Cadet 710-1260A

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 710-3013

Hex Screw, 1/4-20 x .50

$4.99

$

In Stock, Qty 7

0

26

Cub Cadet 712-0324

Hex Lock Nut, 1/4-20

$3.99

$

In Stock, only 4 left!

0

27

Cub Cadet 726-3046

Ratchet Clip, .250

$4.49

$

In Stock, Qty 13

0

Cub Cadet 731-08383-2

Trim Strip, 5/32

Note: (not shown)

$10.99

$

Usually ships in 3-6 days

0
