GT-205 (14BU836H190) - White Outdoor 46" Garden Tractor (1999) Schematic Parts Diagram

46" Garden Tractor

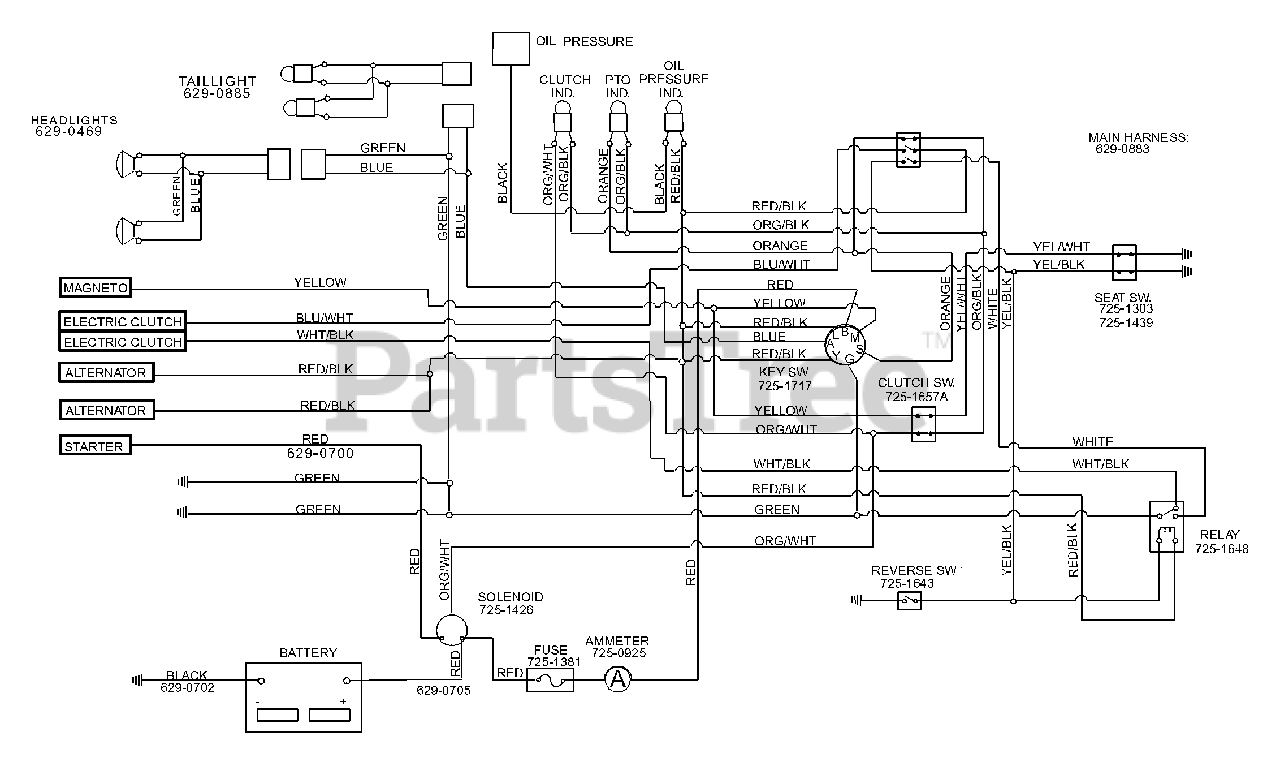

Schematic Parts Diagram

  • Title

629-0883

White Outdoor 629-0883

Main Harness

$

$

Not available

629-0885

White Outdoor 629-0885

Taillight

$

$

Not available

629-0469

White Outdoor 629-0469

Headlights
(Superseded to 929-0469B)

$

$

Not available

629-0700

White Outdoor 629-0700

Wire Ass'y

$

$

Not available

629-0702

White Outdoor 629-0702

Black

$

$

Not available

629-0705

White Outdoor 629-0705

Red

$

$

Not available

725-1381

White Outdoor 725-1381

Fuse
(Superseded to 925-1381)

$6.99

$

In Stock, Qty 10

0

725-1426

White Outdoor 725-1426

Solenoid
(Superseded to 925-1426A)

$28.99

$

In Stock, Qty 20+

0

725-0925

White Outdoor 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

725-1643

White Outdoor 725-1643

Reverse Sw.

$10.99

$

In Stock, only 2 left!

0

725-1648

White Outdoor 725-1648

Relay
(Superseded to 925-1648A)

$49.99

$

In Stock, Qty 7

0

725-1657A

White Outdoor 725-1657A

Clutch Sw.
(Superseded to 925-1657A)

$25.99

$

In Stock, only 4 left!

0

725-1439

White Outdoor 725-1439

Seat Sw.

$8.99

$

In Stock, Qty 9

0

725-1303

White Outdoor 725-1303

Seat Sw.
(Superseded to 925-1303)

$6.99

$

In Stock, Qty 6

0

725-1717

White Outdoor 725-1717

Key Sw
(Superseded to 925-1717)

$55.99

$

In Stock, only 3 left!

0
