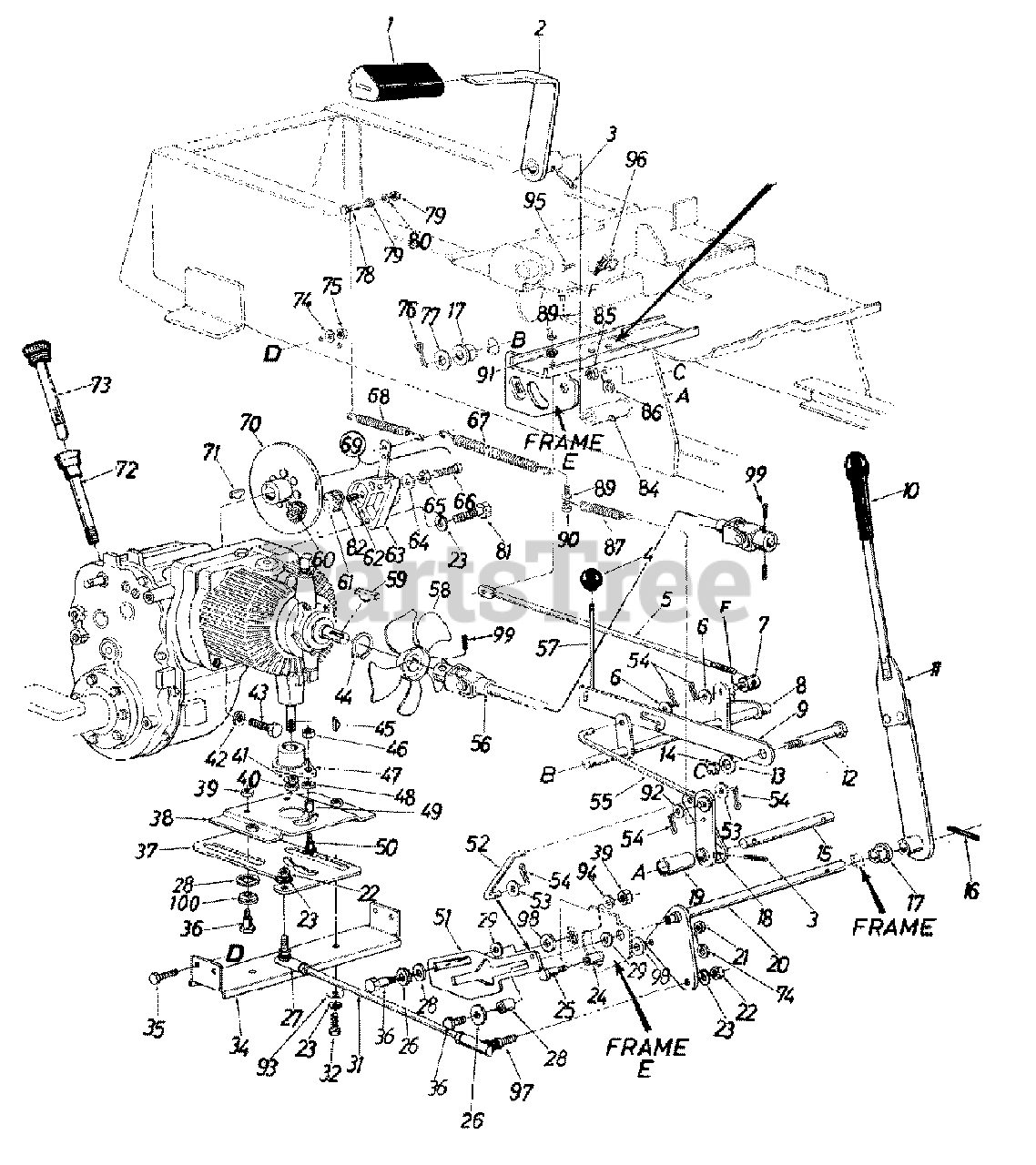

GT-2055 (14A-992-190) - White Outdoor Garden Tractor (1998) Brake Transfer Shaft, Disk Brake And Slide Mtg. Plate Ass'y Parts Diagram

Garden Tractor

Brake Transfer Shaft, Disk Brake And Slide Mtg. Plate Ass'y Parts Diagram

  • Title

1

White Outdoor 735-0189

Foot Pad

$

$

Not available

2

White Outdoor 13080

Foot Pedal Brkt. Ass'y. - R.H.

Variations

White Outdoor 13080-0637

No Longer Available BRACKET-FOOT PEDAL - POWDER BLACK (0637)

$

$

Not available

$

$

3

White Outdoor 715-0114

Spring Pin Spiral 1/4" Dia. x 1.50" Lg.

$8.49

$

In Stock, Qty 9

0

4

White Outdoor 720-0166

Ball Knob - Brake

$

$

Not available

5

White Outdoor 747-0283

Brake Rod

$

$

Not available

6

White Outdoor 736-0101

Fl-Wash. .375" I.D. x 1.00" O.D. x .030"
(Superseded to 936-0101)

$4.49

$

Usually ships in 3-6 days

0

7

White Outdoor 711-0198

Ferrule
(Superseded to 911-0198)

$12.99

$

In Stock, Qty 20+

0

8

White Outdoor 13548A

Brake Transfer Shaft Ass'y.

$

$

Not available

9

13523

Parking Brake Cam

$

$

Not available

10

White Outdoor 720-0223

Grip

$13.99

$

In Stock, Qty 10

0

11

13787

Control Arm Ass'y. Comp.

$

$

Not available

12

White Outdoor 738-0186

Shld. Bolt .62" Dia. x 2.75" Lg.

$

$

Not available

13

White Outdoor 736-0187

Fl-Wash. .460" I.D. x 1.24" O.D. x .06"

$4.49

$

In Stock, Qty 20+

0

14

712-0222

Push Speed Nut for .625" Dia. Shaft

$

$

Not available

15

White Outdoor 738-0402

Brake Pivot Shaft

$

$

Not available

16

White Outdoor 715-0114

Spring Pin Spiral 1/4" Dia. x 1.50" Lg.

$8.49

$

In Stock, Qty 9

0

17

White Outdoor 741-0225

Hex Flange Brg. Plastic .62" I.D.
(Superseded to 941-0225)

$6.99

$

In Stock, Qty 20+

0

18

White Outdoor 13505B

Brake Lever Ass'y.

$

$

Not available

19

White Outdoor 750-0181

Spacer

$

$

Not available

20

White Outdoor 683-0020

Control Handle Shaft Ass'y.

$

$

Not available

21

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

22

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

24

White Outdoor 748-0270

Spacer

$

$

Not available

25

White Outdoor 738-0138

Shoulder Bolt
(Superseded to 738-0138A)

$6.49

$

In Stock, Qty 20+

0

26

White Outdoor 736-0406

Fl-Wash. 7/16" I.D. x 1-3/8" O.D.
(Superseded to 936-0406)

$6.49

$

In Stock, Qty 11

0

27

White Outdoor 723-0351

Ball Joint Ass'y. 3/8-24 Thd. - L.H.
(Superseded to 923-0351)

$41.99

$

Usually ships in 3-6 days

0

28

White Outdoor 750-0915

Spacer

$

$

Not available

29

White Outdoor 736-0362

Fl-Wash. .325" I.D. x 1.25" O.D.

$4.49

$

In Stock, Qty 20+

0

31

White Outdoor 747-0365

Tie Rod
(Superseded to 747-0365A)

$

$

Not available

32

White Outdoor 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$3.99

$

In Stock, Qty 17

0

34

White Outdoor 13562

Support Channel

$

$

Not available

35

White Outdoor 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

36

White Outdoor 738-0296

Shld. Bolt .437" Dia. x .268"

$3.99

$

In Stock, Qty 13

0

37

White Outdoor 13555

Cam Plate

$

$

Not available

38

White Outdoor 13557

Slide Mtg. Plate Ass'y.

$

$

Not available

39

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

40

White Outdoor 712-0206

Hex Nut 1/2-13 Thd.

$3.99

$

In Stock, Qty 20+

0

41

White Outdoor 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 20+

0

42

White Outdoor 736-0300

Fl-Wash. .385" I.D. x .87" O.D. x .060"

$3.99

$

In Stock, Qty 20+

0

43

White Outdoor 710-0492

Socket Hd. Scr. 3/8-16 x 2.75" Lg.

$

$

Not available

44

White Outdoor 716-0123

Snap Ring

$

$

Not available

45

White Outdoor 714-0131

#5 Hi-Pro Key 1/8" x 5/8" Dia.

$

$

Not available

46

White Outdoor 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

47

White Outdoor 13559

Pintle Plate Ass'y.

$

$

Not available

48

White Outdoor 736-0142

Fl-Wash. .281" I.D. x .50" O.D. x .063"

$4.49

$

Usually ships in 3-6 days

0

49

White Outdoor 741-0154

Needle Brg. .31" I.D. x .50" O.D.

$

$

Not available

50

White Outdoor 710-0491

Shld. Bolt .31" Dia. x .500

$11.99

$

Usually ships in 3-6 days

0

51

White Outdoor 13556A

Neutral Control Slide

$

$

Not available

52

White Outdoor 747-0873

Neutral Control Rod

$

$

Not available

53

White Outdoor 736-0264

Fl-Wash. .312" I.D. x .630" O.D.

$6.49

$

In Stock, only 1 left!

0

54

White Outdoor 714-0104

Hairpin Cotter

$3.99

$

In Stock, Qty 20+

0

55

White Outdoor 13702

Brake Link Rod Ass'y.

$

$

Not available

56

White Outdoor 647-0012

Universal Drive Shaft Comp.

$

$

Not available

57

White Outdoor 747-0282

Parking Brake Link

$

$

Not available

58

White Outdoor 731-0317

Fan Ass'y.
(Superseded to 931-0317)

$39.99

$

In Stock, only 2 left!

0

59

White Outdoor 714-0388

#61 Hi-Pro Key 3/16 x 5/8" Dia.
(Superseded to 914-0388)

$7.49

$

In Stock, Qty 8

0

60

White Outdoor HU-24-13772

Lining - Brake
(Superseded to 761-04060)

$30.99

$

In Stock, Qty 9

0

61

White Outdoor HU-24-13772

Lining - Brake
(Superseded to 761-04060)

$30.99

$

In Stock, Qty 9

0

62

White Outdoor HU-39-13774

Actuator Pin

$

$

Not available

63

HU-39-14232

Housing with Lever and Pin

$

$

Not available

64

HU-20-9764

Washer

$

$

Not available

65

White Outdoor HU-37-13818

Nut
(Superseded to 912-0240)

$3.99

$

In Stock, Qty 20+

0

66

White Outdoor HU-39-13775

Adjustment Pin
(Superseded to HU-A611030003)

$

$

Not available

67

White Outdoor 732-0260

Extension Spring .50" O.D. x 6.5" Lg.
(Superseded to 932-0260)

$19.99

$

In Stock, only 4 left!

0

68

White Outdoor 732-0429A

Extension Spring (Brake Return)
(Superseded to 932-0429A)

$8.49

$

In Stock, Qty 20+

0

69

White Outdoor 761-0170

Disc Brake Ass'y. Comp.

$

$

Not available

70

White Outdoor 761-0142

Brake Disc Ass'y.

$

$

Not available

71

White Outdoor 714-0137

Hi-Pro Key 3/16 x 3/4" Dia.

$

$

Not available

72

White Outdoor 751-0239

Dipstick Tube Ass'y.

$

$

Not available

73

White Outdoor 751-0240

Dipstick Ass'y.
(Superseded to 951-0240)

$

$

Not available

74

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

75

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

76

White Outdoor 714-0115

Cotter Pin 1/8" Dia. x 1.00" Lg.

$3.99

$

In Stock, only 1 left!

0

77

White Outdoor 736-0162

Fl-Wash. .635" I.D. x 1.00" O.D.

$3.99

$

In Stock, Qty 20+

0

78

White Outdoor 710-1122

Hex Scr. 1/4-20 x 2.50" Lg.

$6.99

$

Usually ships in 3-6 days

0

79

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

80

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

81

White Outdoor 710-3005

Hex Scr. 3/8-16 x 1.25" Lg.

$3.99

$

In Stock, Qty 20+

0

82

White Outdoor HU-25-13808

Backing Plate
(Superseded to HU-A611950129)

$

$

Not available

84

White Outdoor 737-0280

Grease Fitting

$7.49

$

Usually ships in 3-6 days

0

85

White Outdoor 712-0240

Hex Nut 7/16-20 Thd.
(Superseded to 912-0240)

$3.99

$

In Stock, Qty 20+

0

86

White Outdoor 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, Qty 20+

0

87

White Outdoor 732-0121

Extension Spring
(Superseded to 932-0121)

$13.99

$

In Stock, only 1 left!

0

89

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

90

White Outdoor 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.

$3.99

$

In Stock, only 1 left!

0

91

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

92

White Outdoor 736-0101

Fl-Wash.
(Superseded to 936-0101)

$4.49

$

Usually ships in 3-6 days

0

93

White Outdoor 736-0247

Fl-Wash. .38" I.D. x 1.25" O.D.

$8.99

$

In Stock, Qty 20+

0

94

White Outdoor 736-0242

Bell-Wash.

$3.99

$

In Stock, Qty 20+

0

95

White Outdoor 710-0351

Truss Mach. Scr. #10 x .5" Lg.

$4.49

$

In Stock, only 4 left!

0

96

White Outdoor 725-1657A

Safety Switch
(Superseded to 925-1657A)

$22.99

$

In Stock, Qty 14

0

97

White Outdoor 723-0156

Ball Joint Ass'y. 3/8-24 Thd. - R.H.
(Superseded to 923-0156)

$15.99

$

In Stock, Qty 20+

0

98

White Outdoor 736-3081

Fl-Wash. .32" I.D. x .6" O.D.

$3.49

$

In Stock, only 2 left!

0

99

White Outdoor 710-0666

Set Screw 5/16-18 x .38" Lg.

$

$

Not available

100

White Outdoor 736-0436

Thrust Washer
(Superseded to 936-0406)

$6.49

$

In Stock, Qty 11

0

?101

White Outdoor 750-0985

Flange Brg. .75" Dia.

$

$

Not available
