GT 21 L - Jonsered String Trimmer (1993-01) CARBURETOR DETAILS Parts Diagram

String Trimmer

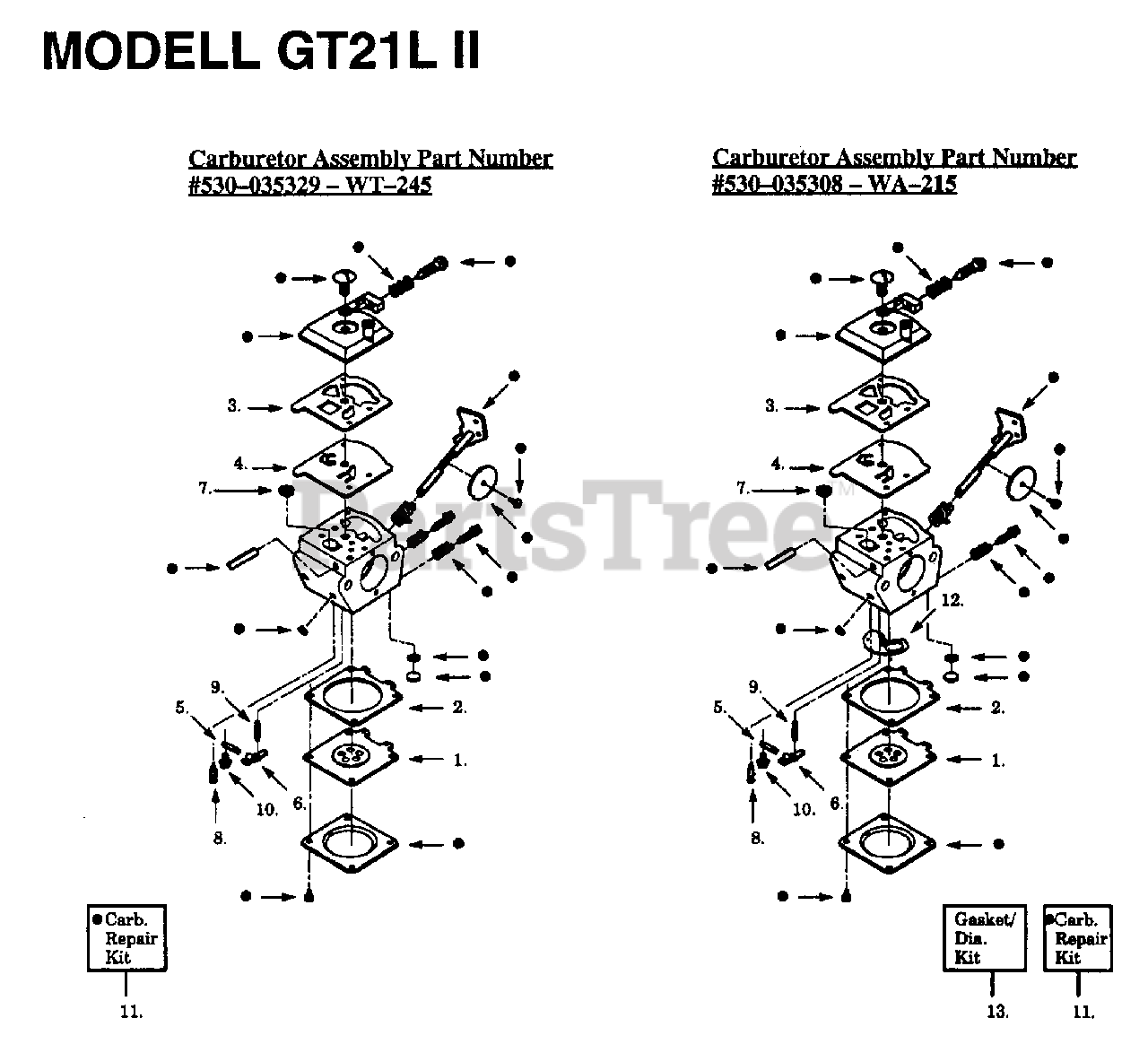

CARBURETOR DETAILS Parts Diagram

  • Title

1

Jonsered 504130808

METERING DIAPHRAGM
(Superseded to 503896701)

$8.99

$

In Stock, only 2 left!

0

5300353-32

Jonsered 530035332

GASKET-METERING DIAPHRAGM
(Superseded to 530035320)

$4.99

$

Usually ships in 3-10 days

0

5300350-11

Jonsered 530035011

GASKET

$

$

Not available

3

Jonsered 504130906

GASKET

$4.99

$

In Stock, Qty 5

0

4

Jonsered 504130807

PUMP DIAPHRAGM

$6.49

$

In Stock, Qty 10

0

5

Jonsered 505520125

FULCRUM PIN

$3.49

$

In Stock, only 3 left!

0

6

Jonsered 505520127

LEVER

$5.99

$

Usually ships in 3-10 days

0

7

Jonsered 530035178

SCREEN-DUTCH TWILL INLE

$3.99

$

Usually ships in 3-10 days

0

5035634-01

Jonsered 503563401

INLET NEEDLE

$6.49

$

In Stock, Qty 12

0

5031170-01

Jonsered 503117001

VALVE/INLET.

$11.99

$

In Stock, Qty 11

0

5300351-39

Jonsered 530035139

No Description Available
(Superseded to 530035188)

$4.99

$

In Stock, Qty 11

0

5300373-30

Jonsered 530037330

METERING LEVER SPRING

$

$

Not available

5053167-17

Jonsered 505316717

SCREW

$3.49

$

In Stock, Qty 5

0

5300350-16

Jonsered 530035016

SCREW

$3.49

$

In Stock, Qty 6

0

11

Jonsered 530069460

CARBURETOR REPAIR KIT
(Superseded to 530069902)

$63.46

$

In Stock, only 1 left!

0

12

Jonsered 530035211

GASKET

$

$

Not available

13

Jonsered 530069461

CARB GASKET/DIAPH KIT
(Superseded to 531004519)

$12.99

$

In Stock, only 1 left!

0
