GT 21 L - Jonsered String Trimmer (1993-01) SHAFT HANDLE Parts Diagram

String Trimmer

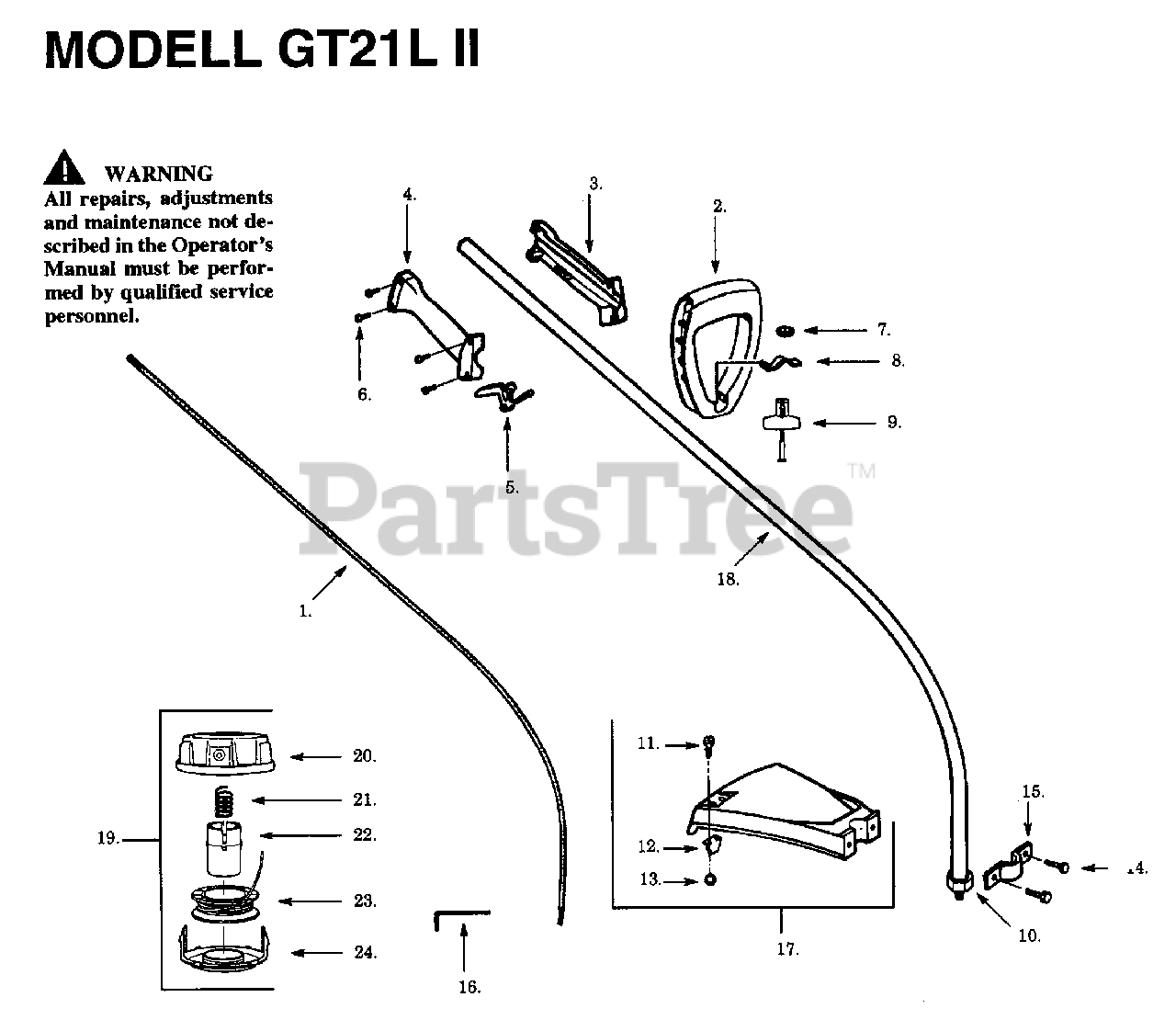

SHAFT HANDLE Parts Diagram

  • Title

1

Jonsered 530095018

SHAFT-FLEX (48")
(Superseded to 530095176)

$

$

Not available

2

Jonsered 530010618

REPL BY 530 06 94-96
(Superseded to 530069496)

$

$

Not available

3

Jonsered 530036514

THROTTLE HOUSING LEFT

$3.99

$

Usually ships in 3-10 days

0

4

Jonsered 530036515

THROTTLE HOUSING RIGHT

$3.99

$

Usually ships in 3-10 days

0

5

Jonsered 530036556

THROTTLE LEVER

$3.99

$

In Stock, only 2 left!

0

6

Jonsered 530015966

SCREW - THROTTLE HOUSING

$2.49

$

Usually ships in 3-10 days

0

7

Jonsered 530015610

NUT (1/4-20)

$0.99

$

Usually ships in 3-10 days

0

8

Jonsered 530094742

CLAMP-ASSIST HANDLE

$4.99

$

Usually ships in 3-10 days

0

9

Jonsered 530069252

KIT "T" HANDLE
(Superseded to 530069347)

$5.99

$

In Stock, only 1 left!

0

10

Jonsered 530094543

DUST CUP

$

$

Not available

11

Jonsered 530015337

SCREW

$3.99

$

Usually ships in 3-10 days

0

12

Jonsered 530094570

LIMITER-LINE

$3.99

$

In Stock, only 2 left!

0

13

Jonsered 530015653

LOCKNUT-(10-24)
(Superseded to 534235901)

$3.99

$

Usually ships in 3-10 days

0

14

Jonsered 530092243

SCREW-1/4-10X1-1/8 HEX
(Superseded to 530016107)

$3.99

$

In Stock, Qty 11

0

15

Jonsered 530093653

BRACKET-SHIELD

$3.99

$

In Stock, only 1 left!

0

16

Jonsered 502713601

ALLEN KEY

$3.49

$

In Stock, only 1 left!

0

17

Jonsered 530069249

KIT-SHIELD (SERVICE) BLACK

$

$

Not available

18

Jonsered 530095148

REPL BY 530 09 48-91
(Superseded to 530094891)

$

$

Not available

19

Jonsered 952715540

CUTTING HEAD ASSEMBLY
(Superseded to 952715542)

$

$

Not available

20

Jonsered 530094878

HUB AND SHAFT ASSY

$

$

Not available

21

Jonsered 530094830

SPRING

$3.99

$

In Stock, Qty 20+

0

22

Jonsered 530094827

CAP

$

$

Not available

23

Jonsered 952715544

SPOOL W/ LINE NLA

$32.99

$

Usually ships in 3-10 days

0

24

Jonsered 530094828

COVER

$

$

Not available
