GT 21 L - Jonsered String Trimmer (1995-05) SHAFT HANDLE Parts Diagram

String Trimmer

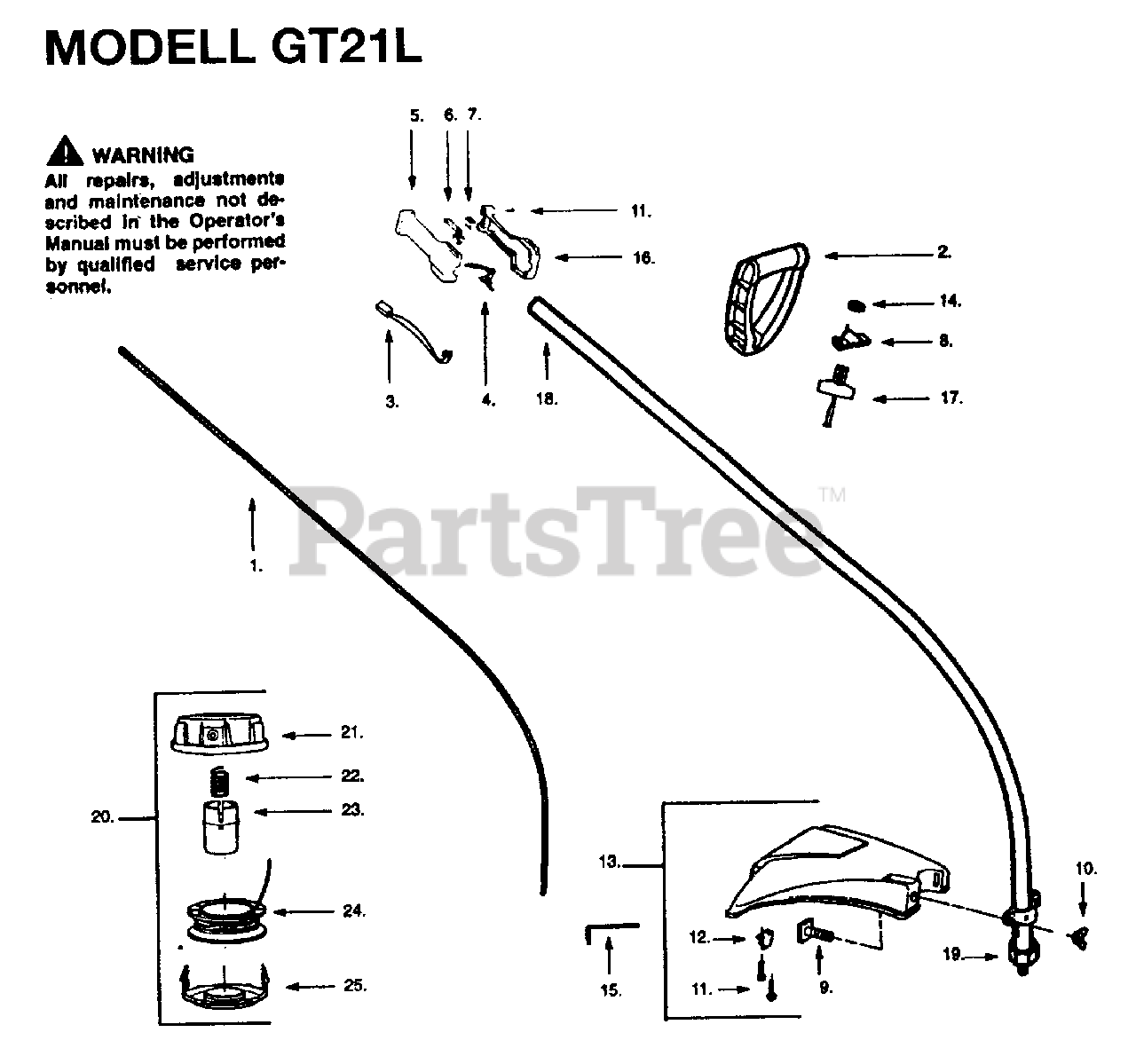

SHAFT HANDLE Parts Diagram

  • Title

1

Jonsered 530095176

SHAFT

$

$

Not available

2

Jonsered 530094673

"D" HANDLE
(Superseded to 530055699)

$11.99

$

Usually ships in 3-10 days

0

3

Jonsered 530047307

CABLE

$9.99

$

Usually ships in 3-10 days

0

4

Jonsered 530402027

THROTTLE TRIGGER
(Superseded to 530056334)

$

$

Not available

5

Jonsered 530402025

HANDLE

$4.99

$

Usually ships in 3-10 days

0

6

Jonsered 530402028

CONTROL

$

$

Not available

7

Jonsered 530037692

REPL BY 530 06 95-72
(Superseded to 530069572)

$8.99

$

In Stock, only 3 left!

0

8

Jonsered 530094742

CLAMP-ASSIST HANDLE

$4.99

$

Usually ships in 3-10 days

0

9

Jonsered 530015820

BOLT, TYPE 2

$6.49

$

In Stock, only 1 left!

0

10

Jonsered 530016118

NUT - HANDLE/SHIELD
(Superseded to 530091373)

$4.99

$

In Stock, only 1 left!

0

11

Jonsered 530015886

SCREW-10-14 X 13/16 (PL

$6.49

$

In Stock, Qty 16

0

12

Jonsered 530095429

REPL BY 530 09 52-49
(Superseded to 530095249)

$

$

Not available

13

Jonsered 530069666

SHIELD

$

$

Not available

14

Jonsered 530015610

NUT (1/4-20)

$0.99

$

Usually ships in 3-10 days

0

15

Jonsered 502713601

ALLEN KEY

$3.49

$

In Stock, only 1 left!

0

16

Jonsered 530402026

HANDLE

$4.99

$

Usually ships in 3-10 days

0

17

Jonsered 530069252

KIT "T" HANDLE
(Superseded to 530069347)

$5.99

$

In Stock, only 1 left!

0

18

Jonsered 530095306

DRIVE SHAFT

$

$

Not available

19

Jonsered 530094543

DUST CUP

$

$

Not available

20

Jonsered 952715540

CUTTING HEAD ASSEMBLY
(Superseded to 952715542)

$

$

Not available

21

Jonsered 530094878

HUB AND SHAFT ASSY

$

$

Not available

22

Jonsered 530094830

SPRING

$3.99

$

In Stock, Qty 20+

0

23

Jonsered 530094827

CAP

$

$

Not available

24

Jonsered 952715544

SPOOL W/ LINE NLA

$32.99

$

Usually ships in 3-10 days

0

25

Jonsered 530094828

COVER

$

$

Not available
