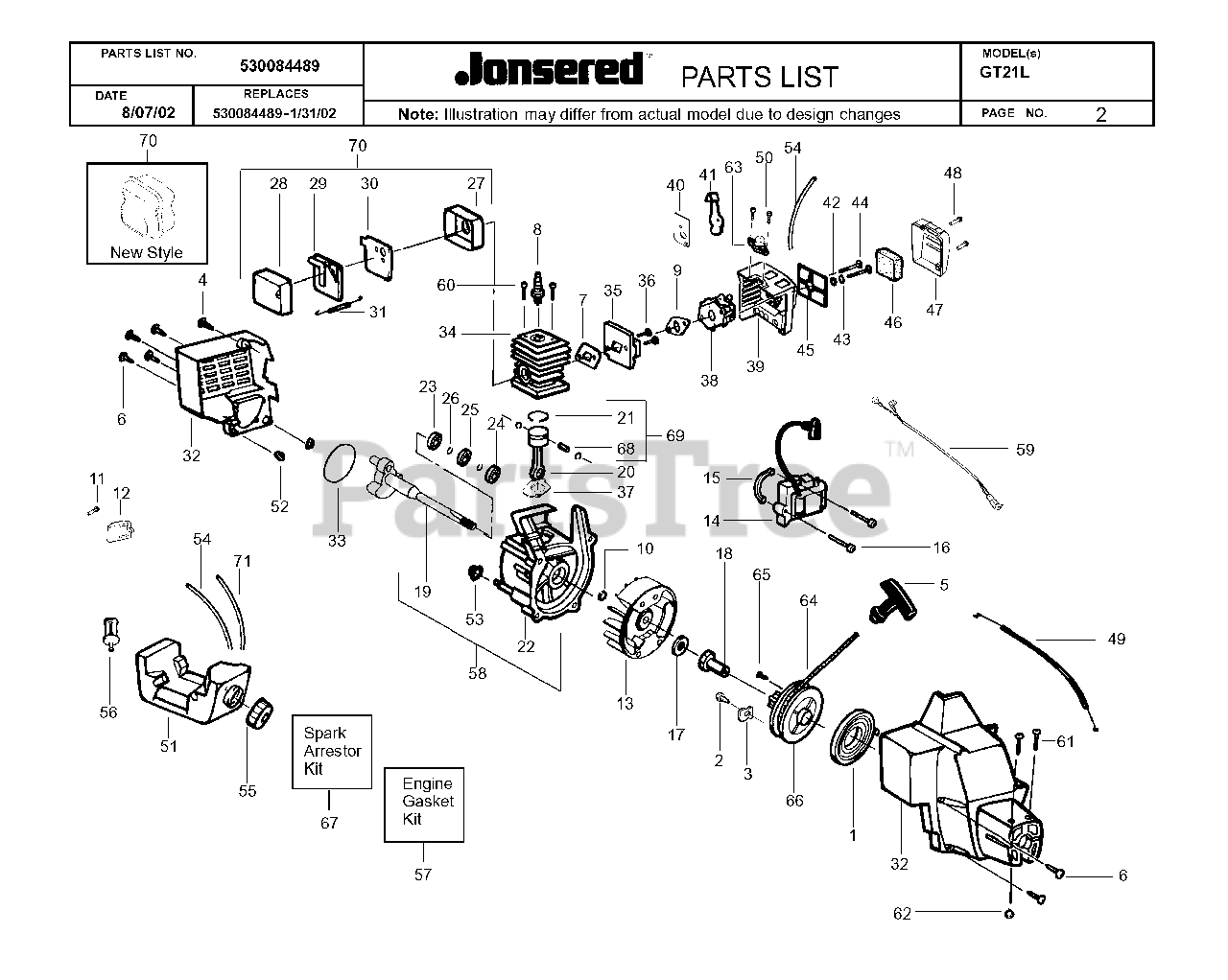

GT 21 L - Jonsered String Trimmer (2002-08) ENGINE Parts Diagram

String Trimmer

ENGINE Parts Diagram

  • Title

1

Jonsered 530042085

STARTER SPRING
(Superseded to 545008010)

$7.49

$

In Stock, Qty 20+

0

2

Jonsered 530016224

SCREW

$4.99

$

In Stock, Qty 5

0

3

Jonsered 530053985

No Description Available

$1.49

$

In Stock, only 1 left!

0

4

Jonsered 530015934

SCREW

$4.99

$

In Stock, only 1 left!

0

5

Jonsered 530027569

HANDLE-STARTER

$6.49

$

In Stock, only 2 left!

0

6

Jonsered 530015810

SCREW - SHROUD
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0

7

Jonsered 530069616

GASKET KIT

$9.99

$

In Stock, only 1 left!

0

8

Jonsered 952030249

PLUG-SPARK (RCJ-6Y)

$4.99

$

In Stock, Qty 20+

0

9

Jonsered 530069616

GASKET KIT

$9.99

$

In Stock, only 1 left!

0

10

Jonsered 530015941

RETAINING RING

$4.99

$

Usually ships in 3-10 days

0

11

Jonsered 530015675

SCREW-8-18 X 5/18(RECES

$3.99

$

In Stock, only 1 left!

0

530037045

Jonsered 530037045

MUFFLER GUARD
(Superseded to 530069380)

$6.49

$

Usually ships in 3-10 days

0

530054536

Jonsered 530054536

No Description Available

$

$

Not available

13

Jonsered 530069886

FLYWHEEL
(Superseded to 545221701)

$13.99

$

In Stock, only 1 left!

0

14

Jonsered 530039163

IGNITION MODULE

$53.99

$

In Stock, only 1 left!

0

15

Jonsered 530036145

SPACER - IGNITION MODULE

$3.99

$

In Stock, only 3 left!

0

16

Jonsered 530015954

SCREW.

$4.99

$

Usually ships in 3-10 days

0

17

Jonsered 530015828

WASHER FLAT

$4.99

$

In Stock, only 1 left!

0

18

Jonsered 530027953

COUPLING-DRIVE

$

$

Not available

19

Jonsered 530054753

No Description Available

Note: NEW PART NUMBER FOR THIS IPL

$36.99

$

Usually ships in 3-10 days

0

20

Jonsered 530069615

CONNECTING ROD ASSEMBLY

$24.99

$

Usually ships in 3-10 days

0

21

Jonsered 530036404

PISTON RING

$

$

Not available

22

Jonsered 530012414

ASSY-CRANKCASE
(Superseded to 530071627)

$26.99

$

Usually ships in 3-10 days

0

23

Jonsered 530032125

BEARING
(Superseded to 738210101)

$12.99

$

Usually ships in 3-10 days

0

24

Jonsered 530032124

BEARING

$7.49

$

Usually ships in 3-10 days

0

25

Jonsered 530019179

SEALING RING

$7.49

$

Usually ships in 3-10 days

0

26

Jonsered 530015945

CLIP

$3.99

$

Usually ships in 3-10 days

0

27

Jonsered 530036578

MUFFLER BODY

$4.99

$

Usually ships in 3-10 days

0

28

Jonsered 530036577

MUFFLER COVER

$2.99

$

Usually ships in 3-10 days

0

29

Jonsered 530038602

MUFFLER BAFFLE - EXIT

$1.99

$

Usually ships in 3-10 days

0

30

Jonsered 530036579

MUFFLER BAFFLE - FIRST

$2.99

$

Usually ships in 3-10 days

0

31

Jonsered 530042088

No Description Available

$3.99

$

In Stock, only 1 left!

0

32

Jonsered 530047491

HOUSING

$

$

Not available

33

Jonsered 530069616

GASKET KIT

$9.99

$

In Stock, only 1 left!

0

34

Jonsered 530069619

CYLINDER
(Superseded to 530012353)

$

$

Not available

35

Jonsered 530047659

No Description Available

$4.99

$

Usually ships in 3-10 days

0

36

Jonsered 530016014

SCREW - CARB. ADAPTOR

$6.49

$

In Stock, only 3 left!

0

37

Jonsered 530069616

GASKET KIT

$9.99

$

In Stock, only 1 left!

0

38

Jonsered 530069665

CARBURETOR
(Superseded to 530071639)

$63.46

$

In Stock, only 1 left!

0

39

Jonsered 530054554

No Description Available

$9.99

$

Usually ships in 3-10 days

0

40

Jonsered 530037326

CHOKE PLATE

$

$

Not available

41

Jonsered 530038102

CHOKE SHUTTER

$3.99

$

Usually ships in 3-10 days

0

42

Jonsered 530015254

WASHER

$3.99

$

In Stock, only 2 left!

0

43

Jonsered 530015852

CHOKE SPACER

$2.49

$

In Stock, only 1 left!

0

44

Jonsered 530015887

SCREW

$4.99

$

In Stock, only 2 left!

0

45

Jonsered 530037413

FILTER PLATE

$

$

Not available

46

Jonsered 530037331

AIR FILTER FOAM

$

$

Not available

47

Jonsered 530037292

AIR FILTER COVER

$

$

Not available

48

Jonsered 530015957

SCREW

$4.99

$

In Stock, Qty 7

0

49

Jonsered 530071548

THROTTLE KIT

$

$

Not available

50

Jonsered 530015780

No Description Available

$6.49

$

In Stock, only 3 left!

0

51

Jonsered 530069862

TANK UNIT

$

$

Not available

52

Jonsered 530036793

SHROUD ISOLATOR

$8.99

$

Usually ships in 3-10 days

0

53

Jonsered 530036792

CRANKCASE ISOLATOR

$7.49

$

Usually ships in 3-10 days

0

54

Jonsered 530069599

KIT-LINE(FUEL)

$7.49

$

In Stock, Qty 20+

0

55

Jonsered 530014347

CAP ASSY W/ RETAINER

$8.99

$

In Stock, Qty 5

0

56

Jonsered 530095646

FUEL PICK-UP ASSY

$4.99

$

In Stock, Qty 20+

0

57

Jonsered 530069616

GASKET KIT

$9.99

$

In Stock, only 1 left!

0

58

Jonsered 530014729

CRANKCASE/CRANKSHAFT ASSEMBLY

$

$

Not available

59

Jonsered 530047278

LEAD WIRE ASSEMBLY

$7.49

$

Usually ships in 3-10 days

0

60

Jonsered 530015953

SCREW

$6.49

$

In Stock, Qty 8

0

61

Jonsered 530015767

SCREW-10-24 X 1-3/8 (UN

$3.99

$

In Stock, only 2 left!

0

62

Jonsered 530015768

LOCKNUT-HEX 10-24

$6.49

$

In Stock, only 2 left!

0

63

Jonsered 530038874

AIR PURGE BUBBLE

$8.99

$

Usually ships in 3-10 days

0

64

Jonsered 530069232

KIT-ROPE

$7.49

$

In Stock, Qty 20+

0

65

Jonsered 530016080

SCREW

$6.49

$

In Stock, Qty 11

0

66

Jonsered 530069400

STARTER PULLEY KIT
(Superseded to 530071786)

$7.49

$

In Stock, Qty 12

0

67

Jonsered 530071391

No Description Available

$

$

Not available

68

Jonsered 530015162

WRIST PIN RET.

$6.49

$

In Stock, only 2 left!

0

69

Jonsered 530069621

PISTON KIT

$36.99

$

Usually ships in 3-10 days

0

70

Jonsered 530071396

KIT-MUFFLER

$

$

Not available

71

Jonsered 530069571

FUEL LINE - PRIM/TNK

$6.49

$

In Stock, Qty 11

0
