GT 21 (UT-26038) - Green Machine String Trimmer Deflector, Guard, Driveshaft & Stringhead Parts Diagram

String Trimmer

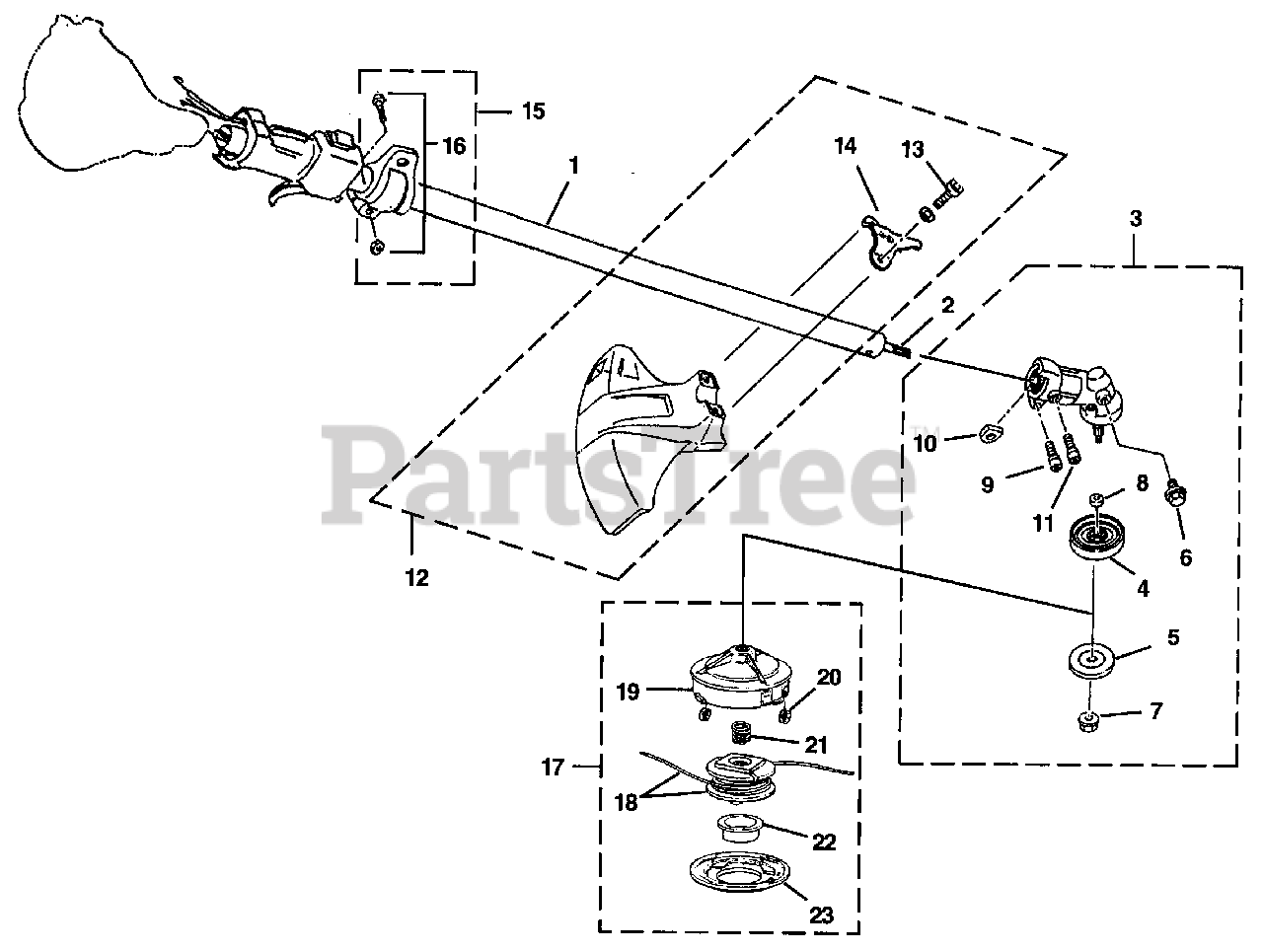

Deflector, Guard, Driveshaft & Stringhead Parts Diagram

  • Title

1

Homelite UP02920

DRIVESHAFT HOUSING
(Superseded to PS00551)

$

$

Not available

2

Homelite PS00551

DRIVESHAFT

$

$

Not available

3

Homelite UP02921

GEAR HEAD

$

$

Not available

4

Homelite PS01402

WASHER-Flange

$

$

Not available

5

Homelite PS01403

WASHER-Cupped

$

$

Currently unavailable

6

Homelite PS00552

BOLT-Grease (M6 x 9)

Note: (Torque Specs: 44-60 In/Lbs, 5.0-6.8 Nm)

$

$

Not available

7

Homelite PS00452

NUT

$

$

Not available

8

Homelite PS01404

WASHER

$

$

Not available

9

Homelite PS01405

BOLT ASSEMBLY (M5 x 25 SW)
(Superseded to PS00553)

Note: (Torque Specs: 44-60 In/Lbs, 5.0-6.8 Nm)

$

$

Not available

10

Homelite PS01406

GASKET

$

$

Not available

11

Homelite PS00554

BOLT ASSEMBLY (M5 x 12 SW)

Note: (Torque Specs: 48-56 In/Lbs, 5.4-6.3 Nm)

$

$

Not available

12

Homelite UP00438

DEFLECTOR ASSEMBLY

Note: (Grass)

$137.99

$

Usually ships in 3-7 days

0

13

Homelite PS00455

BOLT (M6 x 30)

Note: (Torque Specs: 52-68 In/Lbs, 5.9-7.7 Nm)

$

$

Not available

14

Homelite PS00456

CLAMP

$

$

Not available

15

Homelite UP00466

HANGER ASSEMBLY

$

$

Not available

16

Homelite PS00460

SCREW ASSEMBLY (M5 x 14)

Note: (Torque Specs: 14-20 In/Lbs, .6-2.3 Nm)

$

$

Not available

17

Homelite UP02911

STRINGHEAD ASSEMBLY (.080)
(Superseded to PS01349)

$

$

Not available

18

Homelite UP02940

SPOOL & STRING (.080)

$

$

Not available

19

Homelite UP03069

HOUSING

$

$

Not available

20

Homelite 04141

EYELET

$

$

Not available

21

Homelite UP03070

SPRING

$

$

Not available

22

Homelite UP03071

BUTTON

$

$

Not available

23

Homelite UP03072

COVER

$

$

Not available
