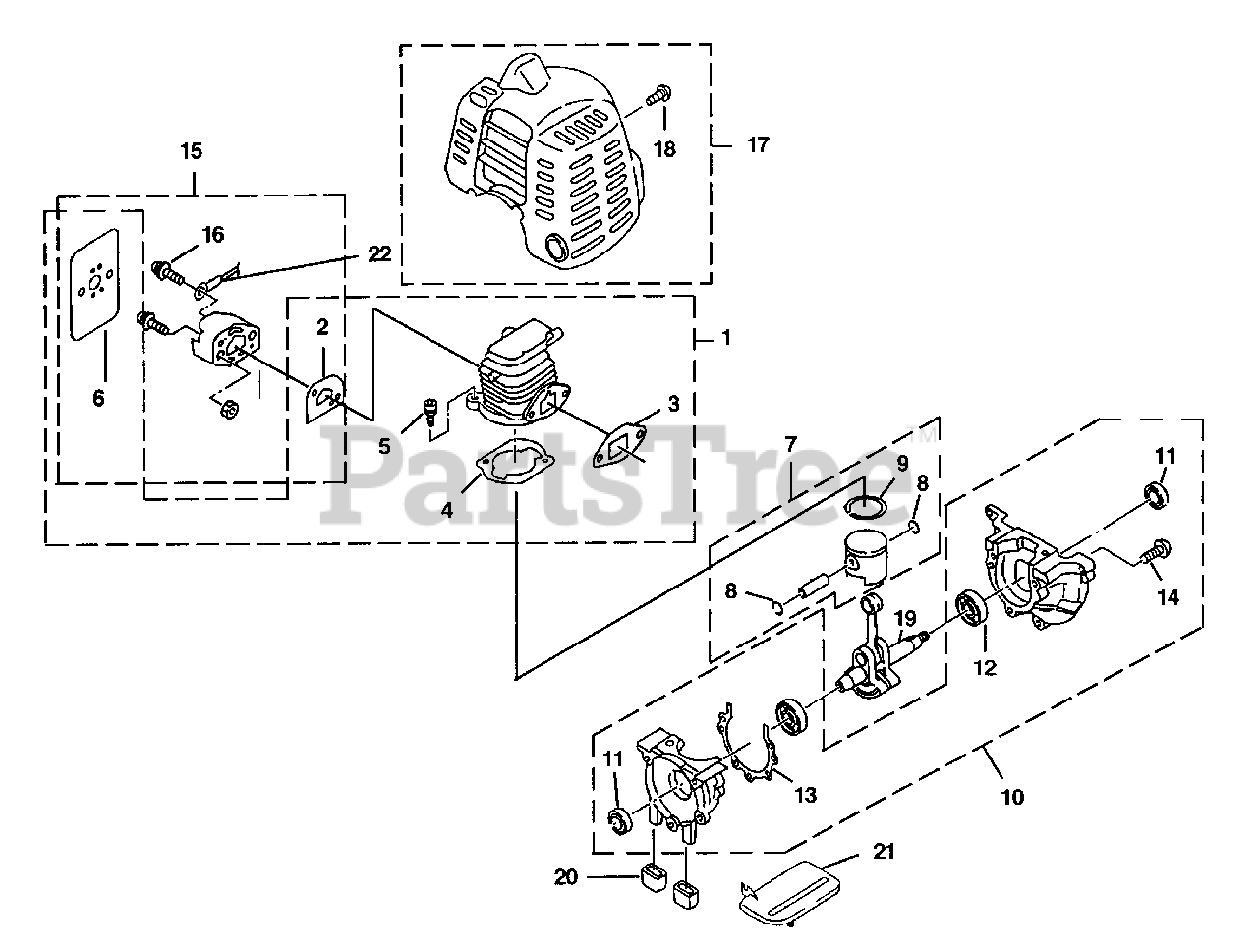

GT 21 (UT-26051) - Green Machine String Trimmer Engine Internal Parts Diagram

String Trimmer

Engine Internal Parts Diagram

  • Title

1

Homelite UP02925

CYLINDER ASSEMBLY

$

$

Not available

2

Homelite PS01411

GASKET-Heat Dam

$

$

Not available

3

Homelite PS01413

GASKET-Muffler

$

$

Not available

4

Homelite PS00738

GASKET-Cylinder

$

$

Not available

5

Homelite PS00840

SCREW-Socket HD (M5 x 20W SW)

Note: Torque Specs: 61-69 In/Lbs, 6.9-7.8 Nm

$1.49

$

Usually ships in 3-7 days

0

6

Homelite PS01412

GASKET-Carburetor

$

$

Not available

7

Homelite UP02926

PISTON ASSEMBLY

$

$

Not available

8

Homelite PS00843

RING-Retaining

$

$

Not available

9

Homelite PS01408

RING-Piston

$

$

Not available

10

Homelite UP02924

CRANKCASE ASSEMBLY

$

$

Not available

11

Homelite PS00739

OIL SEAL

$

$

Not available

12

Homelite PS00590

BALL BEARING

$

$

Not available

13

Homelite PS00800

GASKET-Crankcase

$

$

Not available

14

Homelite PS00824

SCREW (M5 x 25)

Note: Torque Specs: 33-37 In/Lbs, 3.7-4.2 Nm

$1.49

$

Usually ships in 3-7 days

0

15

Homelite UP02928

HEAT DAM ASSEMBLY W/Nuts

$

$

Not available

2

Homelite PS01411

GASKET-Heat Dam

$

$

Not available

6

Homelite PS01412

GASKET-Carburetor

$

$

Not available

16

Homelite PS00852

SCREW ASSEMBLY (M5 x 20)

Note: Torque Specs: 33-37 In/Lbs, 3.7-4.2 Nm

$1.49

$

Usually ships in 3-7 days

0

17

Homelite UP02930

CYLINDER COVER

$

$

Not available

18

Homelite PS00656

SCREW-Self Tapping (M5 x 14)

Note: Torque Specs: 11-15 In/Lbs, 1.2-1.7 Nm

$

$

Not available

Homelite PS01422

SCREW ASSY

Note: Not Shown

$

$

Not available

19

Homelite PS01407

CRANKSHAFT

$

$

Not available

20

Homelite UP00481

RUBBER BUMPER KIT

$

$

Not available

21

Homelite PS01414

MUFFLER PLATE

$

$

Not available

22

Homelite PS00813

WIRE

$

$

Currently unavailable
