GT 21 (UT-26051) - Green Machine String Trimmer Ignition - Rotor - Clutch - Isolator Parts Diagram

String Trimmer

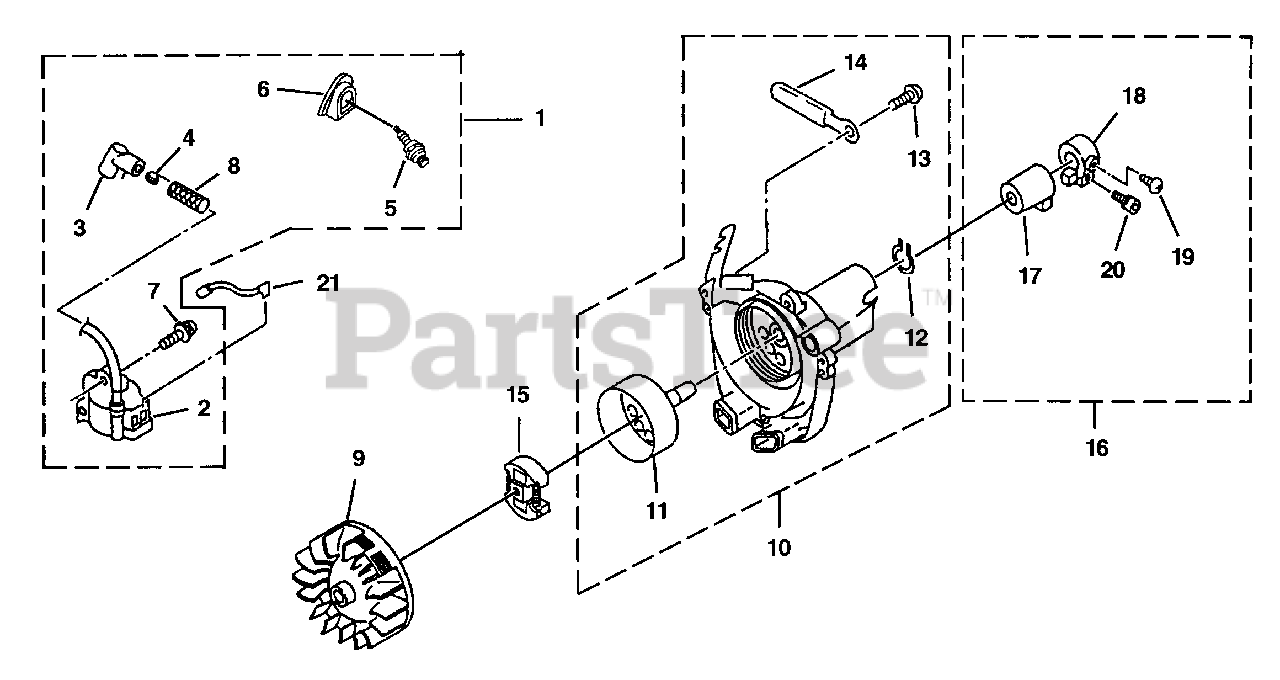

Ignition - Rotor - Clutch - Isolator Parts Diagram

  • Title

1

Homelite UP05118

IGNITION KIT

$

$

Not available

2

Homelite PS01425

MODULE-Ignition

$

$

Not available

3

Homelite PS00689

CAP-Plug

$

$

Not available

4

Homelite PS00499

SPRING-Plug Cap

$

$

Not available

5

Homelite PS02691

SPARK PLUG

Note: Torque Specs: 105-155 In/Lbs, 11.9-17.5 Nm

$

$

Currently unavailable

6

Homelite PS01427

COVER-Plug Cap

$

$

Not available

7

Homelite PS00857

SCREW (M4 x 20 W SW)

Note: Torque Specs: 18-26 In/Lbs, 2.0-2.9 Nm

$1.49

$

Usually ships in 3-7 days

0

8

Homelite PS01426

SLEEVE

$

$

Not available

9

Homelite PS01424

ROTOR

$

$

Not available

10

Homelite UP02933

CLUTCH HOUSING

$

$

Not available

11

Homelite PS01434

CLUTCH DRUM

$

$

Not available

12

Homelite PS01436

SNAP RING-Outer

$

$

Not available

13

Homelite PS01429

SCREW-Self Tapping

$

$

Not available

14

Homelite PS01430

CLAMP-Wire

$

$

Not available

15

Homelite PS01435

CLUTCH

$

$

Not available

16

Homelite UP02934

DRIVESHAFT ISOLATOR

$

$

Not available

17

Homelite PS01431

ISOLATOR

$

$

Not available

18

Homelite PS01432

BRACKET-Isolator

$

$

Not available

19

Homelite PS00656

SCREW-Self Tapping (M5 x 14)

Note: Torque Specs: 18-26 In/Lbs, 2.0-2.9 Nm

$

$

Not available

20

Homelite PS01433

SCREW-Socket Hd (M5 x 25)

Note: Torque Specs: 26-34 In/Lbs, 2.9-3.8 Nm

$

$

Not available

21

Homelite PS01428

WIRE

$

$

Not available
