GT 2100 (14W-3AE-010) - Cub Cadet Garden Tractor (2011) Kohler CH680-3060 Ignition & Charging Group Parts Diagram

Garden Tractor

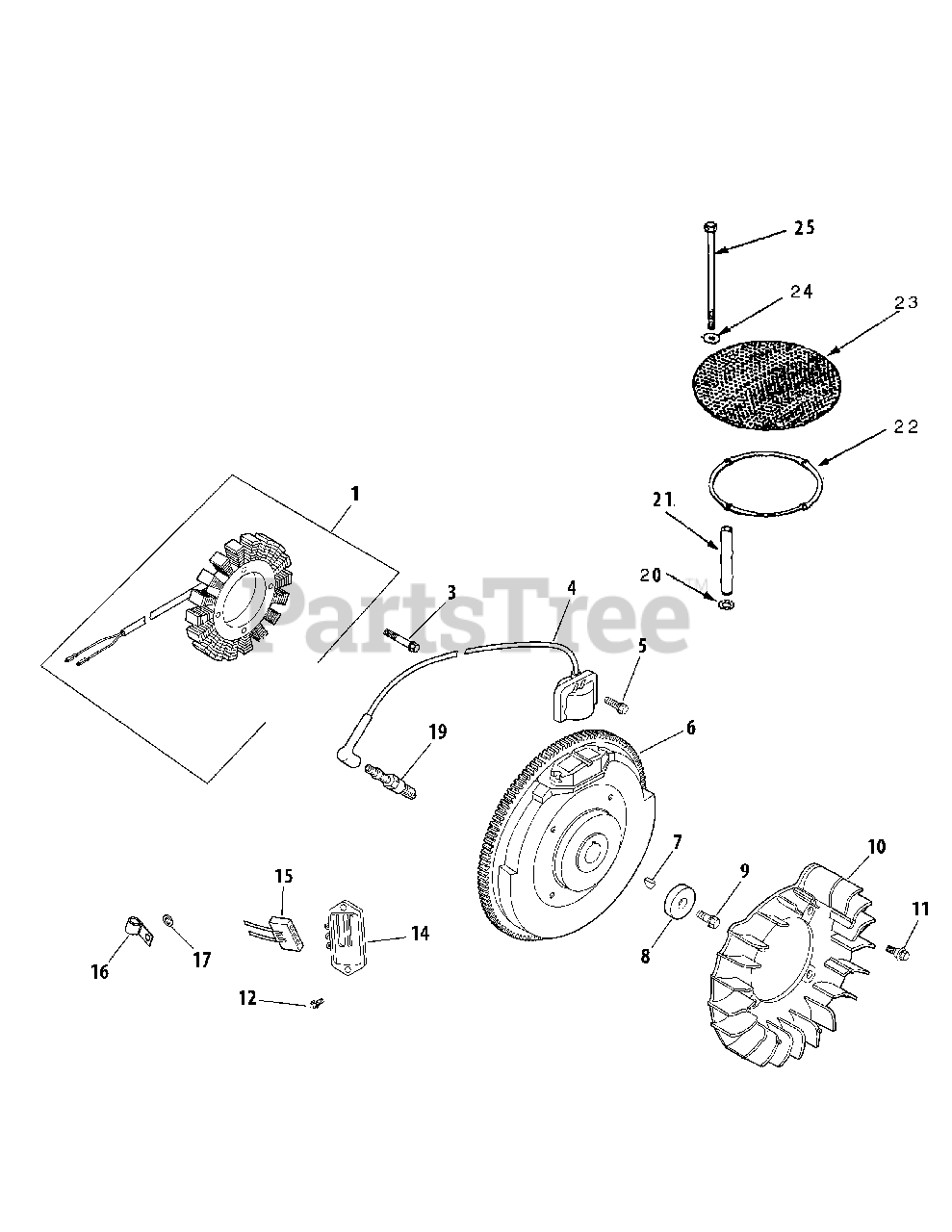

Kohler CH680-3060 Ignition & Charging Group Parts Diagram

  • Title

1

Cub Cadet KH-237878

KIT, 15/20 AMP STATOR ASSY.

$149.99

$

In Stock, Qty 15

0

3

Cub Cadet KH-M-548025-S

SCREW, THD FRM M5X0.8X25
(Superseded to KH-25-086-402-S)

$2.49

$

In Stock, only 2 left!

0

4

Cub Cadet KH-24-584-45-S

KIT, MODULE IGNTN (CDI FIXED)
(Superseded to KH-24-584-201-S)

$102.99

$

Usually ships in 3-6 days

0

5

Cub Cadet KH-M-545020-S

SCREW, FLG THD FRM M5X.8X20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 17

0

6

Cub Cadet KH-24-025-55-S

FLYWHEEL

$

$

Not available

7

Cub Cadet KH-X-42-15

KEY, 3/16'' X 5/8''

$

$

Not available

8

Cub Cadet KH-12-468-03

WASHER, FLAT 13/32''

$

$

Not available

9

Cub Cadet KH-12-086-14

SCREW, FLG M10X1.5X45
(Superseded to KH-25-086-361-S)

$3.49

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-24-157-11-S

FAN
(Superseded to KH-24-755-253-S)

$45.99

$

In Stock, Qty 7

0

11

Cub Cadet KH-25-086-43

SCREW, SKT SET #10-24X1/4''

$

$

Not available

12

Cub Cadet KH-25-086-157-S

SCREW, HEX FLANGE HI-LO

$2.49

$

In Stock, Qty 5

0

14

Cub Cadet KH-41-403-10-S

REGULATOR, RECTIFIER
(Superseded to KH-25-403-37-S)

$105.99

$

In Stock, Qty 6

0

15

Cub Cadet KH-24-176-188-S

HARNESS, WIRING ASSEMBLY

$41.99

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-235173

CLIP, CABLE

$

$

Not available

17

Cub Cadet KH-X-25-53

WASHER, FLAT 1/4'' (O.D. 5/8'')

$

$

Not available

19

Cub Cadet 759-3336

PLUG, SPARK (STD)
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

20

Cub Cadet KH-24-468-11

WASHER, SPRING 10 MM

$

$

Not available

21

Cub Cadet KH-24-112-14

SPACER

$

$

Not available

22

Cub Cadet KH-24-141-06

RING, SUPPORT
(Superseded to KH-25-141-08-S)

$5.49

$

In Stock, Qty 10

0

23

Cub Cadet KH-24-162-39-S

SCREEN, GRASS

$24.99

$

Usually ships in 2-5 days

0

24

Cub Cadet KH-X-25-63

WASHER, FLAT 1/4'' (O.D. 1/2'')

$

$

Not available

25

Cub Cadet KH-M-603100

SCREW, CAP M6X1.0X99.5

$

$

Not available

Cub Cadet KH-25-454-07-S

TIE

Note: Not shown

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-126-137-S

BRACKET, GROUND STRAP
(Superseded to KH-24-518-12-S)

Note: Not shown

$4.99

$

In Stock, only 1 left!

0

Cub Cadet KH-25-086-91-S

SCREW, WSH HD TAP #8-18X1/2''

Note: Not shown

$3.49

$

Usually ships in 2-5 days

0

Cub Cadet 719-3096

ADAPTER, DRIVE SHAFT
(Superseded to KH-24-029-12-S)

Note: Not shown

$32.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-086-17-S

SCREW, FLG M8X1.25X45

Note: Not shown

$2.49

$

In Stock, Qty 20+

0
