GT 2100 (14W-3AE-010) - Cub Cadet Garden Tractor (2011) Kohler CH680-3060 Starting System Parts Diagram

Garden Tractor

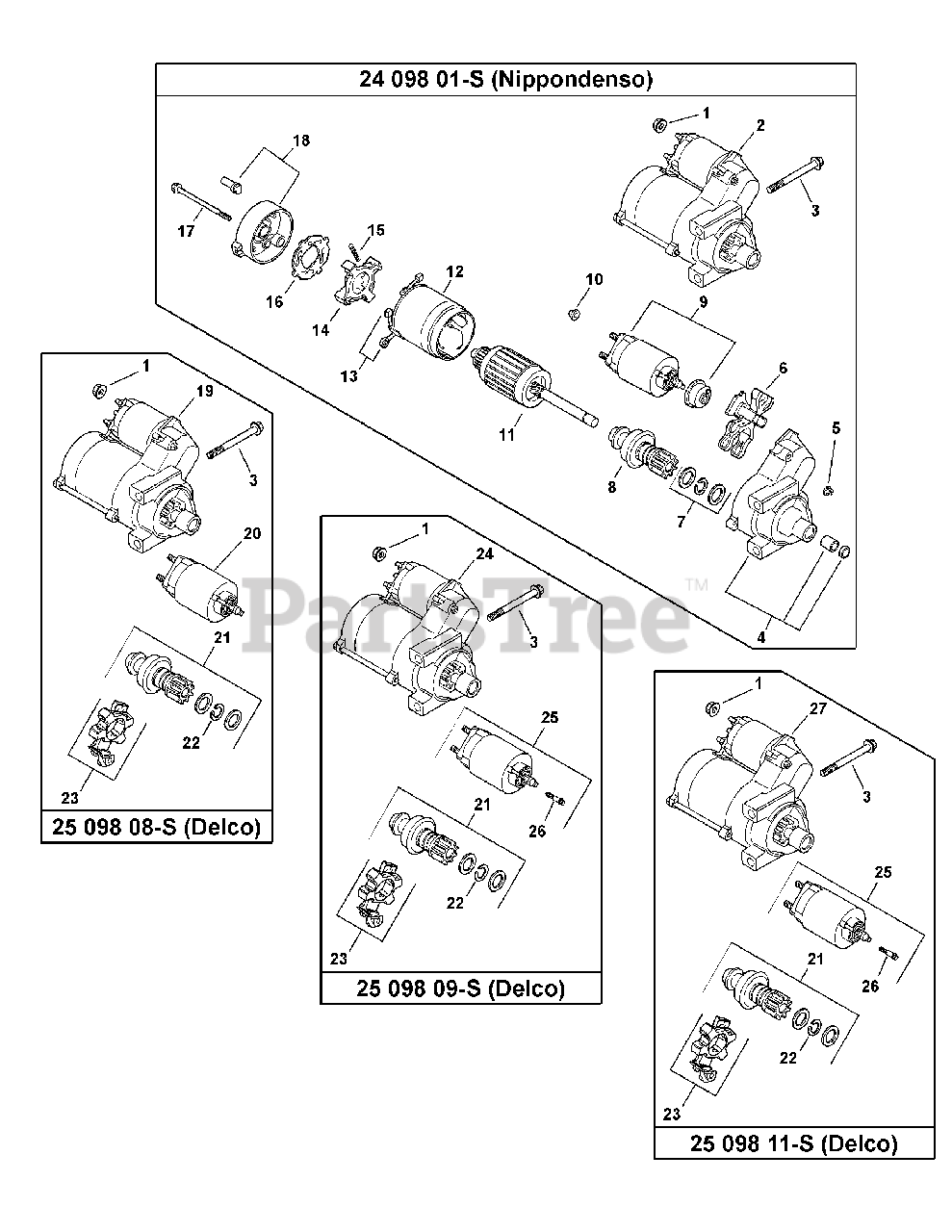

Kohler CH680-3060 Starting System Parts Diagram

  • Title

1

Cub Cadet 712-3086

NUT, FLG M8X1.25

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet KH-25-098-11-S

STARTER
(Superseded to KH-25-098-24-S)

Note: Nippondesno

$314.99

$

In Stock, Qty 15

0

3

Cub Cadet KH-M-851080-S

SCREW

$4.49

$

In Stock, Qty 14

0

4

Cub Cadet KH-24-081-04

DRIVE, END CAP

$

$

Not available

5

Cub Cadet KH-52-100-09

NUT

$

$

Not available

6

Cub Cadet KH-12-090-10

LEVER, DRIVE

$

$

Not available

7

Cub Cadet KH-24-755-84

KIT, STARTER REPAIR

$

$

Not available

8

Cub Cadet KH-12-239-01

DRIVE PINION

$

$

Not available

9

Cub Cadet KH-52-435-02

SOLENOID

$565.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-52-100-10

NUT

$

$

Not available

11

Cub Cadet KH-12-170-04

ARMATURE

$

$

Not available

12

Cub Cadet KH-12-471-01

FRAME W/BRUSHES

$

$

Not available

13

Cub Cadet KH-52-323-03

BRUSH HOLDER

$

$

Not available

14

Cub Cadet KH-52-221-01

BRUSH & SPRING KIT

$

$

Not available

15

Cub Cadet KH-52-089-09

SPRING, BRUSH

$

$

Not available

16

Cub Cadet KH-52-168-01

INSULATOR

$

$

Not available

17

Cub Cadet KH-52-211-05

THRU BOLT

$

$

Not available

18

Cub Cadet KH-24-301-01

COMMUTATOR, END CAP

$

$

Not available

19

Cub Cadet KH-25-098-11-S

STARTER, SOLENOID SHIFT
(Superseded to KH-25-098-24-S)

Note: Delco 28 098 08-S

$314.99

$

In Stock, Qty 15

0

20

Cub Cadet KH-25-435-04-S

SOLENOID

$144.99

$

In Stock, only 1 left!

0

21

Cub Cadet KH-25-755-33-S

KIT, STARTER PINION

Note: (includes KH-25-141-05-S)

$

$

Not available

22

Cub Cadet KH-25-141-05-S

RING, RETAINING

$

$

Not available

23

Cub Cadet KH-25-221-01-S

KIT, BRUSH HOLDER

$70.99

$

Usually ships in 2-5 days

0

24

Cub Cadet KH-25-098-11-S

STARTER
(Superseded to KH-25-098-24-S)

Note: Delco 28 098 09-S, order as a complete replacement

$314.99

$

In Stock, Qty 15

0

25

Cub Cadet KH-25-435-06-S

KIT, SOLENOID

Note: (INCLUDES KH-25-141-05-S)

$211.99

$

In Stock, only 1 left!

0

26

Cub Cadet KH-25-086-113-S

SCREW, EXTERNAL TORX HEAD

$15.99

$

Usually ships in 2-5 days

0

27

Cub Cadet KH-25-098-11-S

STARTER, SOLENOID SHIFT
(Superseded to KH-25-098-24-S)

Note: Delco (INCLUDES KH-25-755-33-S, KH-25-141-05-S, KH-25-221-01-S, KH-25-435-06-S)

$314.99

$

In Stock, Qty 15

0
