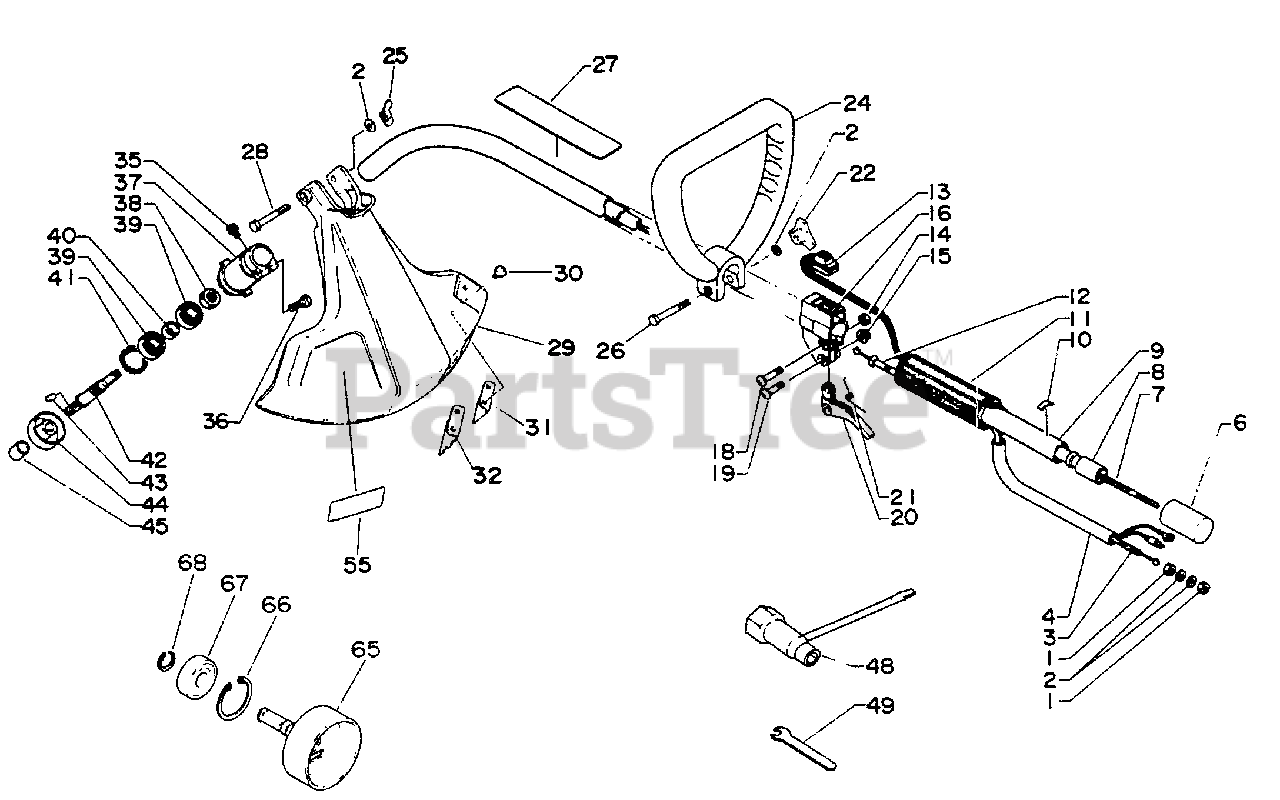

GT-2100 - Echo String Trimmer Driveshaft, Handles, Throttle, Stop Switch, Shield, Gear Case, Tools Parts Diagram

String Trimmer

Driveshaft, Handles, Throttle, Stop Switch, Shield, Gear Case, Tools Parts Diagram

  • Title

1

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 20+

0

2

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

3

Echo 17800109630

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

4

Echo 17812724030

TUBE - VINYL

$0.99

$

In Stock, Qty 9

0

7

Echo 61001309630

DRIVESHAFT - FLEXIBLE
(Superseded to C506000030)

$16.99

$

In Stock, only 2 left!

0

8

Echo 61021709630

BUSHING
(Superseded to Discontinued)

$

$

Not available

9

Echo 61021040630

PIPE, MAIN
(Superseded to 61060944330)

$57.99

$

In Stock, Qty 7

0

10

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 14

0

11

Echo 35111109630

GRIP, HANDLE
(Superseded to 35111144530)

$14.99

$

Usually ships in 2-4 days

0

12

Echo 17804805630

GUIDE, CABLE

$1.99

$

In Stock, Qty 6

0

13

Echo 16340009630

IGNITION SWITCH ASSY
(Superseded to Discontinued)

$

$

Not available

14

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

15

Echo 43302000830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 20+

0

16

Echo 17802409630

BRACKET, THROTTLE
(Superseded to Discontinued)

$

$

Not available

18

Echo 90024005028

SCREW - 5X28

$0.99

$

In Stock, Qty 9

0

19

Echo 17811005330

SCREW - 5X30

$0.99

$

In Stock, Qty 14

0

20

Echo 17801005630

TRIGGER, THROTTLE
(Superseded to 17801005631)

$1.99

$

In Stock, only 1 left!

0

21

Echo 17804306930

SPRING, TRIGGER

$1.49

$

In Stock, Qty 5

0

24

Echo 35160041230

HANDLE
(Superseded to 35160009630)

Note: Includes items 2, 22 and 26

$

$

Not available

2

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

22

Echo 35232540630

KNOB, FASTENER
(Superseded to 90052500006)

$1.99

$

In Stock, Qty 15

0

26

Echo 90010006040

BOLT - 6X40

$0.99

$

In Stock, Qty 9

0

27

Echo 89016026631

LABEL - CAUTION
(Superseded to 89016026632)

$

$

Not available

29

Echo 69900040630

SHIELD, DEBRIS - PLASTIC
(Superseded to 69900440630)

$23.99

$

In Stock, only 1 left!

0

2

Echo 90060000006

WASHER - 6

Note: Includes items 2, 25, 28, and 30-32

$0.99

$

In Stock, Qty 20+

0

25

Echo 90052500006

WINGNUT - 6

$1.99

$

In Stock, Qty 15

0

28

Echo 90010006050

BOLT - 6X50

$0.99

$

In Stock, Qty 5

0

30

Echo 90024205016

SCREW - 5X16

$0.99

$

In Stock, Qty 13

0

31

Echo 69901623231

KNIFE, TRIMMER LINE
(Superseded to P021006080)

$1.99

$

In Stock, only 3 left!

0

32

Echo 69921223230

GUARD
(Superseded to C554000080)

$4.49

$

In Stock, Qty 20+

0

Echo 61040009630

GEAR CASE ASSY
(Superseded to 61040452430)

Note: Includes items 35-45

$70.99

$

In Stock, only 2 left!

0

35

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

36

Echo 90015205025

BOLT - 5X25

$1.49

$

In Stock, Qty 9

0

37

Echo 61041009630

CASE, GEAR
(Superseded to 61040452430)

$70.99

$

In Stock, only 2 left!

0

38

Echo 90051300012

NUT - 12 -- LEFT HAND

$2.99

$

Usually ships in 2-4 days

0

39

Echo 90080206001

BEARING, BALL - 6001 DDU
(Superseded to 9404206001)

$11.99

$

In Stock, only 2 left!

0

40

Echo 61031506530

SPACER

$1.49

$

Usually ships in 2-4 days

0

41

Echo 90070200028

RING, RETAINING - 28

$1.99

$

In Stock, Qty 20+

0

42

Echo 61031009630

GEAR - SHAFT

$54.99

$

Usually ships in 2-4 days

0

43

Echo 90030530006

PIN - 3X6

$1.49

$

Usually ships in 2-4 days

0

44

Echo 61031309630

ADAPTOR, BLADE - UPPER
(Superseded to Discontinued)

$

$

Not available

48

Echo 89641009630

T-WRENCH - 8X19mm

$

$

Currently unavailable

49

Echo 89501526630

SPANNER - 10mm

$5.99

$

In Stock, only 1 left!

0

55

Echo 89013840630

LABEL - ECHO
(Superseded to 89013844330)

$0.99

$

In Stock, Qty 6

0

45

N/A

LABEL - GENERATOR

$

$

Not available

6

N/A

LABEL - GENERATOR

$

$

Not available

65

Echo 17500542030

DRUM, CLUTCH

$

$

Not available

66

Echo 90070200032

RING, RETAINING - 32

$2.49

$

In Stock, only 2 left!

0

67

Echo 90081936201

BEARING, BALL - 6201
(Superseded to 90081906201)

$14.99

$

In Stock, only 4 left!

0

68

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0
