GT-2101 - Echo String Trimmer Intake, Exhaust, Air Cleaner Parts Diagram

String Trimmer

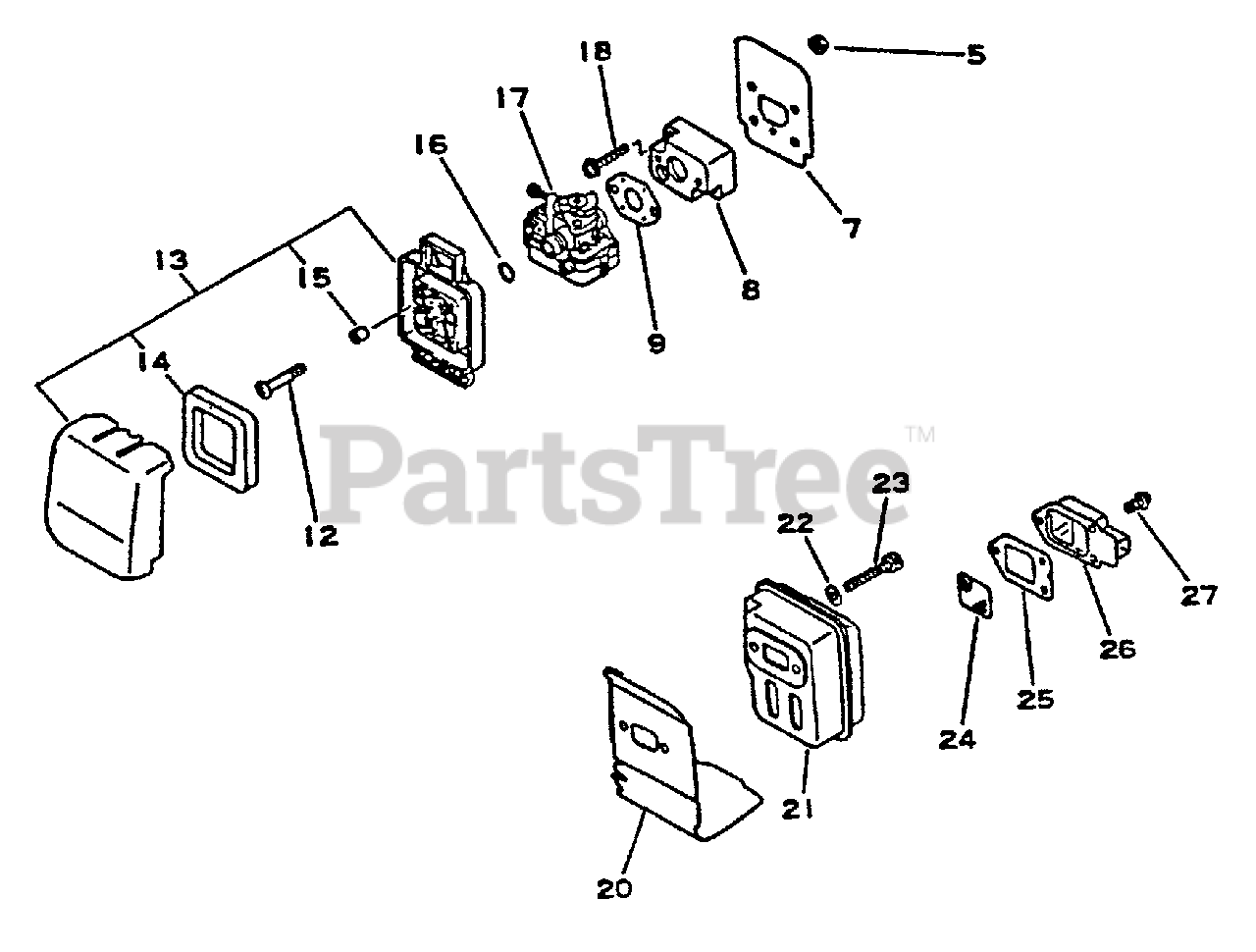

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

5

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

7

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

$2.99

$

In Stock, Qty 12

0

8

Echo 13001744330

INSULATOR, INTAKE
(Superseded to P021015350)

$4.99

$

In Stock, only 4 left!

0

9

Echo 13001044430

GASKET, INTAKE
(Superseded to 13001044431)

$2.99

$

In Stock, Qty 8

0

12

Echo 90024205064

SCREW 5×64

$1.49

$

In Stock, Qty 9

0

13

Echo 13030044430

AIR FILTER ASSY
(Superseded to 13030045130)

$37.99

$

Usually ships in 2-4 days

0

14

Echo 13031044330

FILTER, AIR

$5.99

$

In Stock, Qty 20+

0

15

Echo 13032744330

SLEEVE
(Superseded to Discontinued)

$

$

Not available

16

Echo 90072000015

O-RING 15

$2.49

$

In Stock, Qty 11

0

17

Echo 12300044430

CARBURETOR - WYL-1
(Superseded to Discontinued)

$

$

Not available

18

Echo 90023805022

SCREW 5×22

$0.99

$

In Stock, only 4 left!

0

20

Echo 14551044330

GASKET, EXHAUST
(Superseded to 14551044331)

Note: Included in Muffler Ass'y, P/N 14580044330

$11.99

$

Usually ships in 2-4 days

0

21

Echo 14581044330

MUFFLER

Note: Included in Muffler Ass'y, P/N 14580044330

$43.99

$

Usually ships in 2-4 days

0

22

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

23

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0

24

Echo 14586240630

SCREEN, SPARK ARRESTER

Note: Included in Muffler Ass'y, P/N 14580044330

$2.49

$

In Stock, Qty 20+

0

25

Echo 14586642030

GASKET, EXHAUST
(Superseded to 14586642031)

Note: Included in Muffler Ass'y, P/N 14580044330

$2.99

$

In Stock, only 2 left!

0

26

Echo 145809-42030

GUIDE, EXHAUST - INNER

Note: Included in Muffler Ass'y, P/N 14580044330

$8.99

$

Usually ships in 2-4 days

0

27

Echo 900242-04010

SCREW 4×10

Note: Included in Muffler Ass'y, P/N 14580044330

$0.99

$

In Stock, Qty 20+

0
