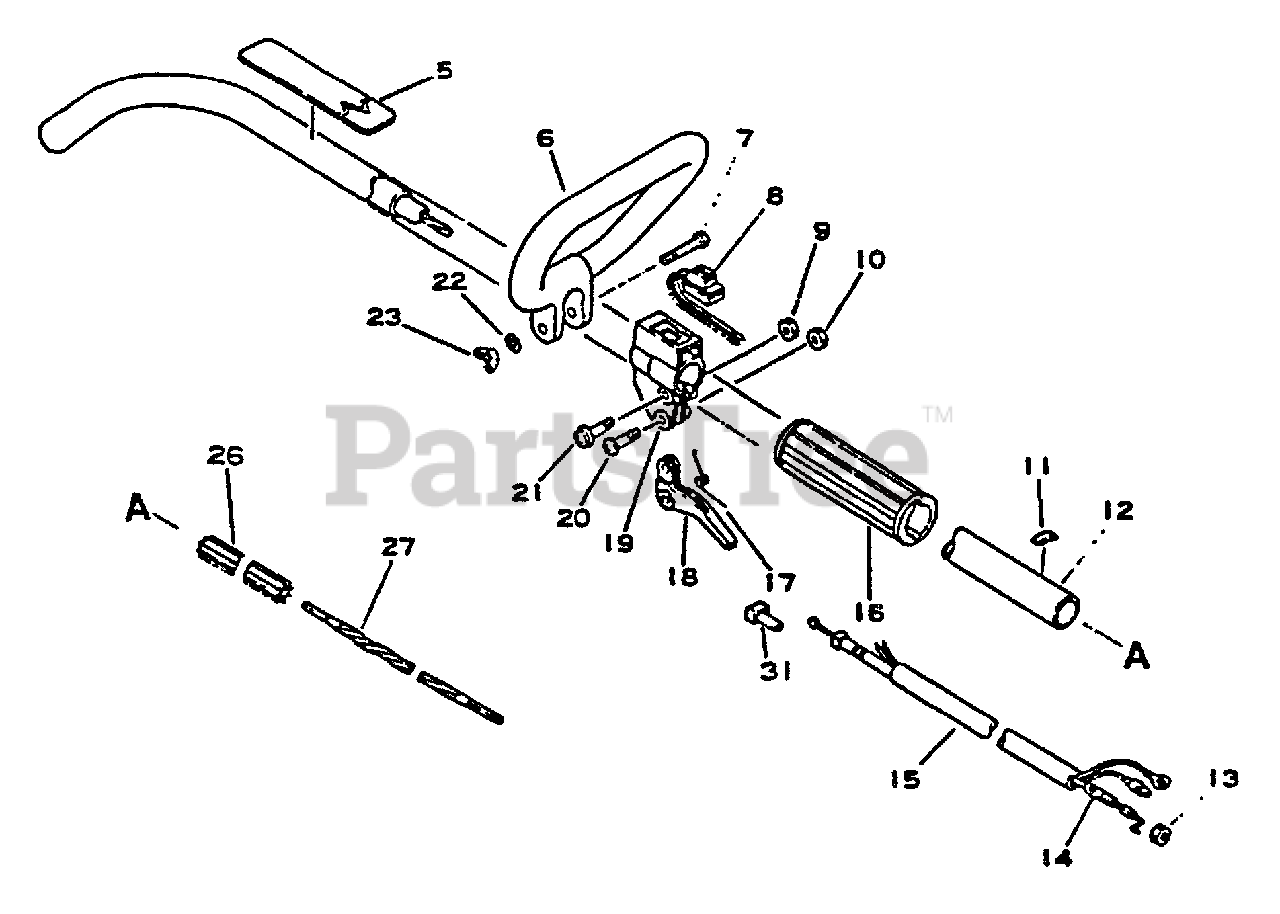

GT-2102 - Echo String Trimmer Driveshaft, Handles, Ignition Switch, Throttle Parts Diagram

String Trimmer

Driveshaft, Handles, Ignition Switch, Throttle Parts Diagram

  • Title

6

Echo 35161040630

HANDLE
(Superseded to 35120150630)

$36.99

$

Usually ships in 2-4 days

0

7

Echo 90010006040

BOLT - 6X40

$0.99

$

In Stock, Qty 9

0

8

Echo 16340044430

IGNITION SWITCH ASSY
(Superseded to 16340049230)

$10.99

$

In Stock, only 2 left!

0

9

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

10

Echo 43302000830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 20+

0

13

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 20+

0

14

Echo 17800144430

CABLE, THROTTLE

Note: Used Prior To S/N 051001

$12.99

$

In Stock, only 2 left!

0

14

Echo 17800145130

CABLE, THROTTLE
(Superseded to 17800144430)

Note: Eff. S/N 051001 and Up

$12.99

$

In Stock, only 2 left!

0

15

Echo 17812724030

TUBE - VINYL

$0.99

$

In Stock, Qty 9

0

16

Echo 35111109630

GRIP, HANDLE
(Superseded to 35111144530)

$14.99

$

Usually ships in 2-4 days

0

17

Echo 17804306930

SPRING, TRIGGER

$1.49

$

In Stock, Qty 5

0

18

Echo 17801005631

TRIGGER, THROTTLE
(Superseded to C450000060)

$1.99

$

In Stock, only 1 left!

0

19

Echo 17802444430

BRACKET, THROTTLE CONTROL
(Superseded to 17802448830)

$4.49

$

Usually ships in 2-4 days

0

20

Echo 17811005330

SCREW - 5X30

$0.99

$

In Stock, Qty 14

0

21

Echo 90022005028

SCREW - 5X28

$0.99

$

In Stock, only 1 left!

0

22

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

23

Echo 90052500006

WINGNUT - 6

$1.99

$

In Stock, Qty 15

0

27

Echo 61001323330

DRIVESHAFT - FLEXIBLE
(Superseded to C506000090)

Note: L. 52-1/2 in. 1333.5mm D. 1/4 in. 6mm

$25.99

$

In Stock, only 2 left!

0

31

Echo 17804805630

GUIDE, CABLE

$1.99

$

In Stock, Qty 6

0

12

Echo 61060944530

MAIN PIPE ASSY

Note: L. 53 in. 1346.2mm D. 7/8 in. 22mm

$63.99

$

Usually ships in 2-4 days

0

5

Echo 89016044430

LABEL - CAUTION
(Superseded to 89016052730)

$1.99

$

Usually ships in 2-4 days

0

5

Echo 89031744330

LABEL - CAUTION
(Superseded to 89031744430)

Note: Canadian

$

$

Not available

11

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 14

0

11

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 14

0

26

Echo 61021744530

LINER - FLEXIBLE

Note: D. 6/8 in. 18mm

$19.99

$

In Stock, Qty 14

0
