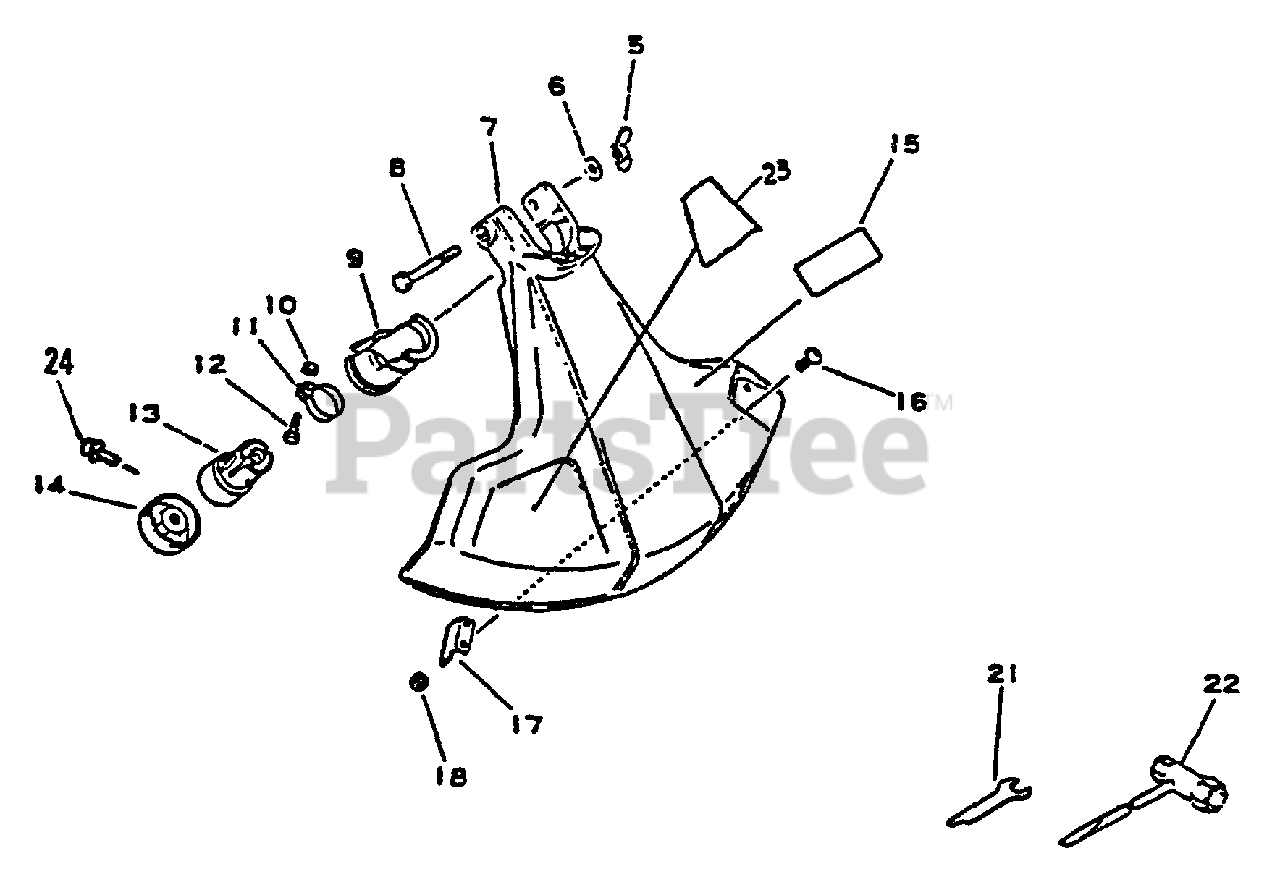

GT-2102 - Echo String Trimmer GEAR CASE, SHIELD, TOOLS Parts Diagram

String Trimmer

GEAR CASE, SHIELD, TOOLS Parts Diagram

  • Title

9

Echo 61044944330

BRACKET, BEARING CASE
(Superseded to Discontinued)

$

$

Not available

10

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

11

Echo 61044844330

BAND

$8.49

$

Usually ships in 2-4 days

0

12

Echo 90015005010

BOLT

$1.49

$

Usually ships in 2-4 days

0

13

Echo 61040044330

GEAR CASE ASSY
(Superseded to 61040452430)

$70.99

$

In Stock, only 2 left!

0

14

Echo 61030544330

PLATE, ADAPTER - UPPER

$26.99

$

Usually ships in 2-4 days

0

15

Echo 89013844330

LABEL - ECHO
(Superseded to 89011848730)

$0.99

$

In Stock, Qty 5

0

24

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

21

Echo 89501526630

SPANNER

$5.99

$

In Stock, only 1 left!

0

22

Echo 89541009460

WRENCH
(Superseded to Discontinued)

$

$

Not available

Echo 69900440630

DEBRIS SHIELD KIT
(Superseded to 69900452730)

$23.99

$

In Stock, only 2 left!

0

7

Echo 69900940630

SHIELD
(Superseded to 69900440630)

$23.99

$

In Stock, only 2 left!

0

23

Echo 89016844330

LABEL, CAUTION

$3.99

$

Usually ships in 2-4 days

0

5

Echo 90052500006

NUT, WING 6

$1.99

$

In Stock, only 4 left!

0

6

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

8

Echo 90010006050

BOLT - 6×50

$0.99

$

In Stock, Qty 5

0

16

Echo 900242-05016

SCREW 5×16

$0.99

$

In Stock, only 4 left!

0

17

Echo 69901644330

CUTTER, LINE
(Superseded to C554000080)

$4.49

$

In Stock, Qty 20+

0

18

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0
