GT-2103 - Echo String Trimmer (SN: 001001 - 031001) Engine, Crankcase, Fan Housing, Cover Parts Diagram

String Trimmer

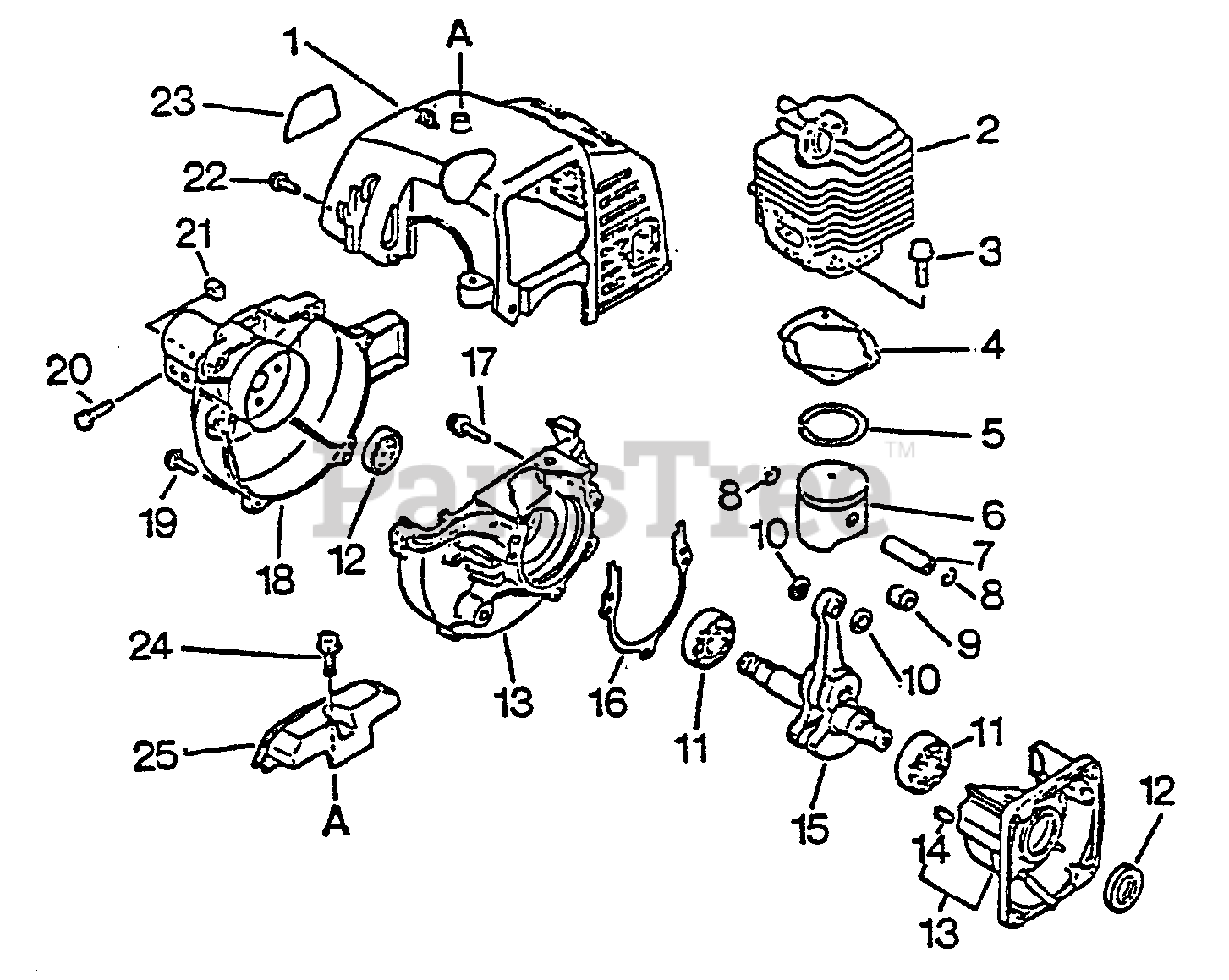

Engine, Crankcase, Fan Housing, Cover Parts Diagram

  • Title

1

Echo 10151448730

COVER, ENGINE - GRAY
(Superseded to 10151448731)

$23.99

$

In Stock, only 1 left!

0

2

Echo 10101147630

CYLINDER
(Superseded to 10101148730)

$151.99

$

Usually ships in 2-4 days

0

3

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

4

Echo 10101042031

GASKET, CYLINDER
(Superseded to 10101044330)

Note: Use Kit P/N 88900044632

$4.99

$

In Stock, Qty 7

0

5

Echo 100011-05330

RING, PISTON
(Superseded to 10001105330)

$10.99

$

In Stock, Qty 8

0

6

Echo 10000044330

PISTON KIT
(Superseded to 10000044331)

Note: Includes Items 5, 7, 8 & 10

$78.99

$

Usually ships in 2-4 days

0

7

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

8

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

9

Echo 10001211520

BEARING, NEEDLE
(Superseded to 10001251230)

$11.99

$

In Stock, only 2 left!

0

10

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

11

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

12

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

13

Echo 10020442030

CRANKCASE KIT
(Superseded to 10020451030)

Note: Includes Items 9 & 14

$157.99

$

Usually ships in 2-4 days

0

14

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

15

Echo 10010044730

CRANKSHAFT ASSY
(Superseded to 10010044731)

$186.99

$

Usually ships in 2-4 days

0

16

GASKET, CRANKCASE

Note: Use Kit P/N 88900044632

$

$

Not available

17

Echo 900162-05028

BOLT 5×28

$2.49

$

In Stock, Qty 10

0

18

Echo 10150348730

FAN CASE ASSY
(Superseded to 10150356630)

Note: (Incl. Clutch Drum, Bearings & Circlip)

$

$

Not available

19

Echo 90023804018

SCREW 4×18

$0.99

$

In Stock, only 3 left!

0

20

Echo 900142-05028

BOLT 5×28

$0.99

$

In Stock, Qty 20+

0

21

Echo 90056500005

NUT M5
(Superseded to 90056550005)

$0.99

$

In Stock, Qty 20+

0

22

Echo 900238-04012

SCREW 4×12

$0.99

$

In Stock, Qty 20+

0

23

Echo 89011248830

LABEL, MODEL

$5.99

$

Usually ships in 2-4 days

0

24

Echo 90025305016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

25

Echo 15991244530

GUARD, TOP - BLACK

$7.99

$

In Stock, only 2 left!

0
