GT-2103 - Echo String Trimmer (SN: 001001 - 031001) Fuel System Parts Diagram

String Trimmer

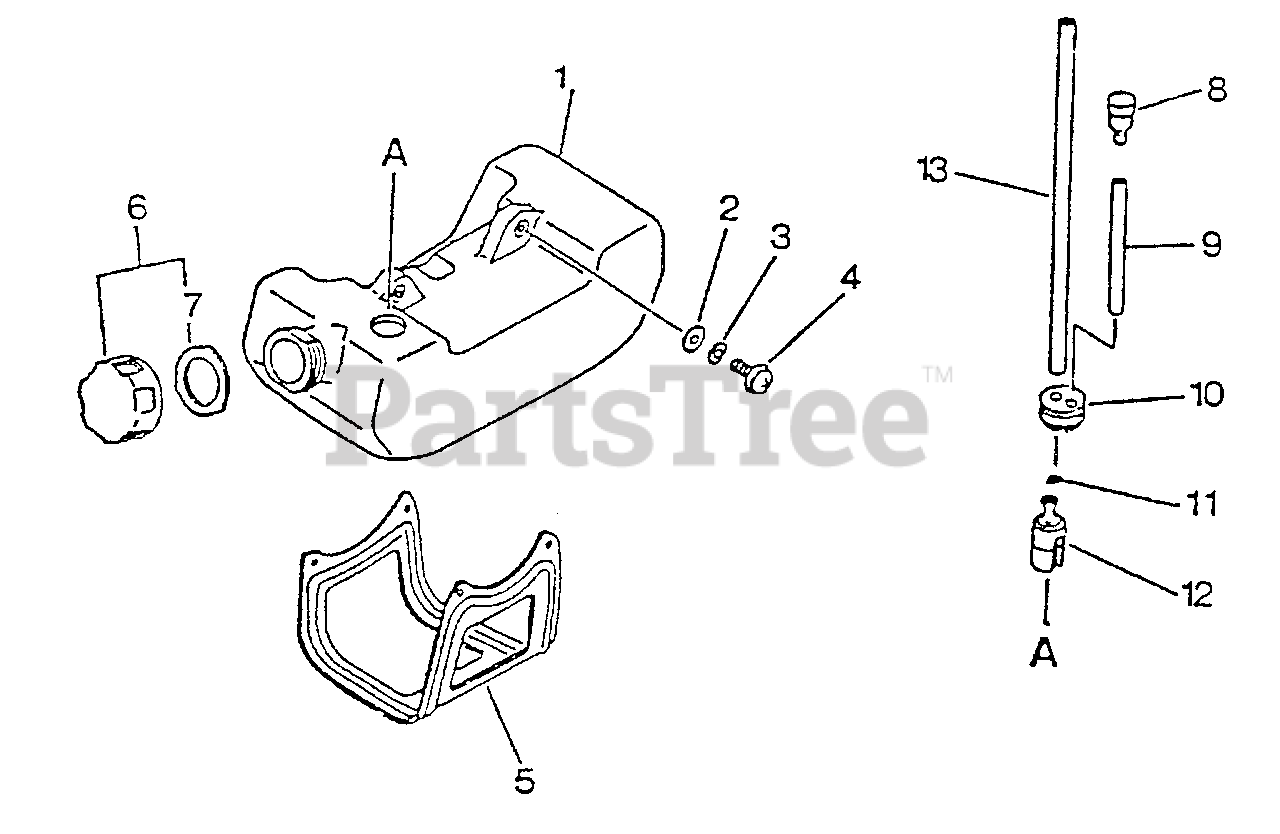

Fuel System Parts Diagram

  • Title

1

Echo 13100548730

TANK, FUEL
(Superseded to 13100544330)

$21.99

$

In Stock, Qty 6

0

2

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

3

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

4

Echo 90022005016

SCREW 5×16

$0.99

$

In Stock, Qty 6

0

5

Echo 305110-42030

GUARD, FUEL TANK

$

$

Not available

6

Echo 13100448730

CAP ASSY
(Superseded to 13100455830)

Note: Includes ITEM 7

$5.49

$

In Stock, only 2 left!

0

7

Echo 13101640930

GASKET, FUEL CAP

$3.49

$

In Stock, Qty 8

0

8

Echo 13130040630

VENT ASSY
(Superseded to 13130056430)

$8.99

$

In Stock, Qty 7

0

9

Echo V471001200

PIPE, FUEL 3x-5x-70 BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

10

Echo 132115-44330

GROMMET, FUEL
(Superseded to 13211544331)

$2.49

$

In Stock, Qty 20+

0

11

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 8

0

12

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

13

Echo V471001190

PIPE, FUEL 3x-5x-180
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0
