GT-2103 - Echo String Trimmer (SN: 001001 - 031001) Intake, Exhaust, Air Cleaner Parts Diagram

String Trimmer

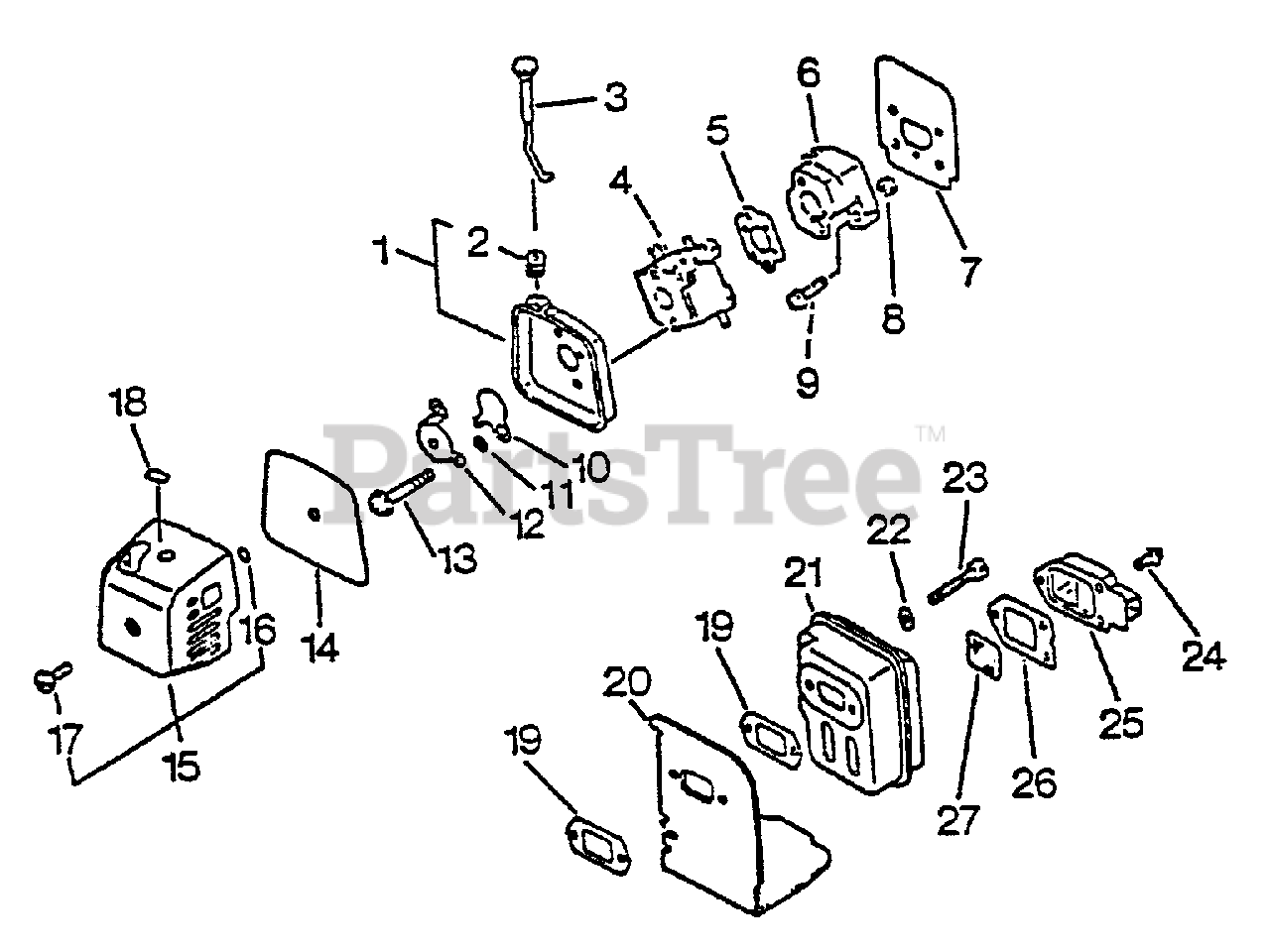

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

1

Echo 13030104560

CASE, AIR FILTER

Note: Includes ITEM 2

$10.99

$

In Stock, only 2 left!

0

2

Echo 17881005230

GROMMET, CHOKE

$2.49

$

In Stock, only 3 left!

0

3

Echo 17851048830

ROD, CHOKE

$8.99

$

In Stock, only 2 left!

0

4

Echo 12520047630

CARBURETOR
(Superseded to Discontinued)

$

$

Not available

5

Echo 130016-42031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

6

Echo 130017-42031

INSULATOR, INTAKE

$11.99

$

In Stock, Qty 8

0

7

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

$2.99

$

In Stock, Qty 12

0

8

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

9

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 10

0

10

Echo 17851504560

SHUTTER, CHOKE

$2.99

$

In Stock, Qty 10

0

11

Echo 178516-00830

WASHER 5.2×8×0.8T

$0.99

$

In Stock, Qty 20+

0

12

Echo 13041044730

CASE, AIR FILTER

$11.99

$

Usually ships in 2-4 days

0

13

Echo 900242-05057

SCREW 5×57

$0.99

$

In Stock, only 3 left!

0

14

Echo 13031004560

FILTER, AIR

$5.99

$

In Stock, Qty 9

0

15

Echo 13030248830

COVER ASSY, AIR FILTER
(Superseded to Discontinued)

Note: Includes ITEMS 16-17

$

$

Not available

16

Echo 90072000004

O-RING

$1.99

$

In Stock, Qty 13

0

17

Echo 13041540630

SCREW

$3.49

$

In Stock, only 1 left!

0

18

Echo X506000070

LABEL, CHOKE

$0.99

$

In Stock, Qty 7

0

19

Echo V104000160

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

20

Echo 14587144330

COVER, EXHAUST
(Superseded to 14587144331)

$5.99

$

In Stock, only 2 left!

0

21

Echo 14580047630

MUFFLER ASSY
(Superseded to 14580042031)

Note: Includes Items 19,20 & 22-27

$55.99

$

In Stock, only 1 left!

0

22

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

23

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0

24

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

25

Echo 145809-42030

GUIDE, EXHAUST - INNER

$8.99

$

Usually ships in 2-4 days

0

26

Echo 145866-42031

GASKET, EXHAUST

$2.99

$

In Stock, only 2 left!

0

27

Echo 14586240630

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 6

0
