GT-2103 - Echo String Trimmer (SN: 031001 - 999999) Carburetor Parts Diagram

String Trimmer

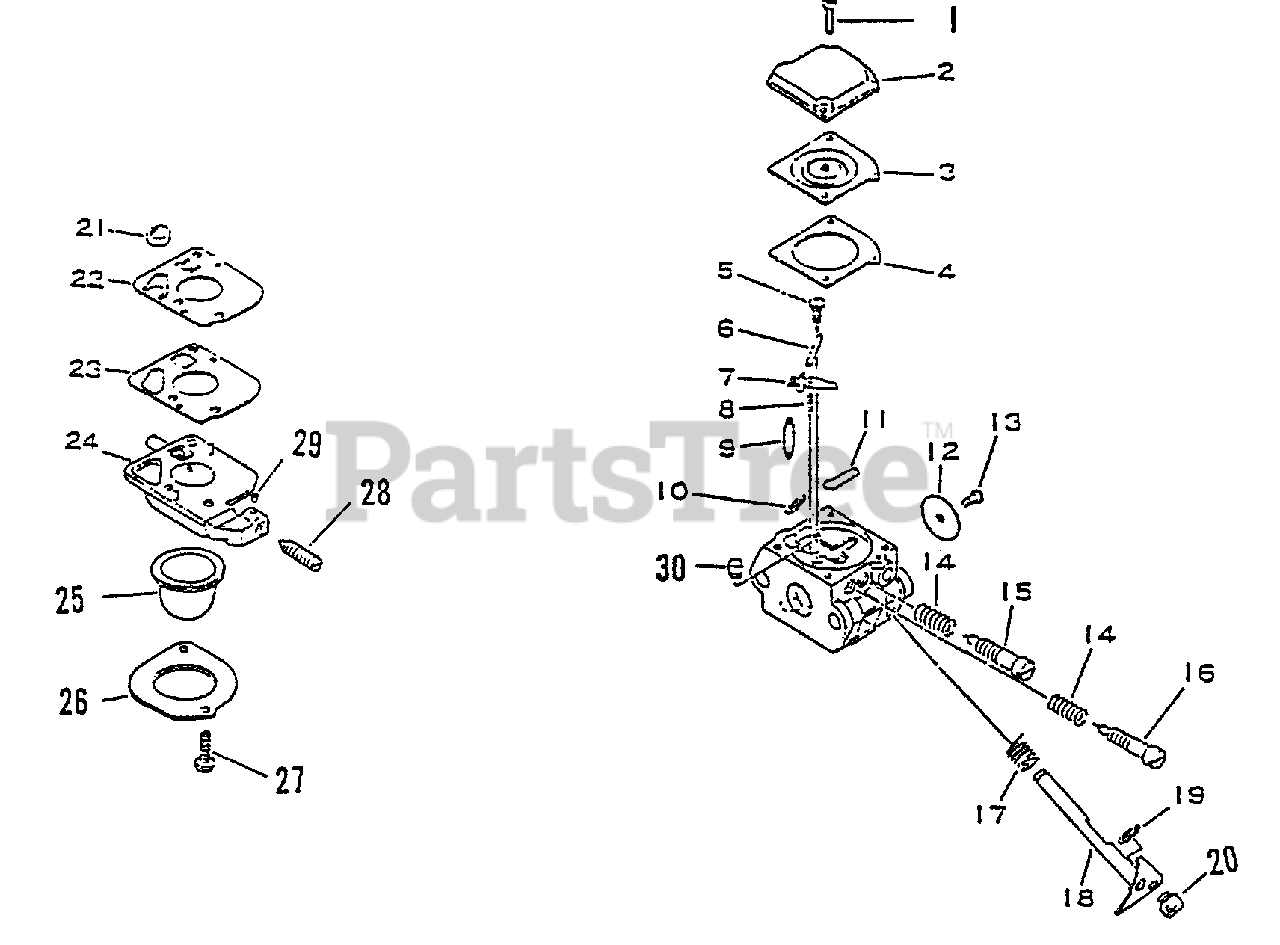

Carburetor Parts Diagram

  • Title

Echo 12520050630

CARBURETOR - C1U-K16
(Superseded to 12520050631)

$

$

Not available

1

Echo 125344-52130

SCREW

$0.99

$

In Stock, Qty 10

0

2

Echo 12534215130

COVER, DIAPHRAGM
(Superseded to 12534213210)

$4.99

$

In Stock, only 2 left!

0

3

DIAPHRAGM

Note: Use Gasket/Diaphram Kit P/N 12530342030 Or Repair Kit P/N 12530211610

$

$

Not available

4

GASKET, DIAPHRAGM

Note: Use Gasket/Diaphram Kit P/N 12530342030 Or Repair Kit P/N 12530211610

$

$

Not available

5

SCREW

Note: Use Repair Kit P/N 12530211610

$

$

Not available

6

PIN, METERING LEVER

Note: Use Repair Kit P/N 12530211610

$

$

Not available

7

LEVER, METERING

Note: Use Repair Kit P/N 12530211610

$

$

Not available

8

SPRING

Note: Use Repair Kit P/N 12530211610

$

$

Not available

9

VALVE, NEEDLE

Note: Use Repair Kit P/N 12530211610

$

$

Not available

10

Echo 125327-15130

E-RING

$0.99

$

In Stock, Qty 5

0

11

PLUG, WELCH

Note: Use Repair Kit P/N 12530211610

$

$

Not available

12

Echo 125316-42030

VALVE, THROTTLE

$2.99

$

In Stock, only 1 left!

0

13

Echo 125314-13930

SCREW

$1.49

$

Usually ships in 2-4 days

0

14

Echo 125319-42030

SPRING, NEEDLE

$1.49

$

In Stock, only 2 left!

0

15

Echo 12532047630

NEEDLE, HIGH SPEED

$3.99

$

Usually ships in 2-4 days

0

16

Echo 125318-42030

NEEDLE, LOW SPEED
(Superseded to 12531851330)

$

$

Not available

17

Echo 125313-42030

SPRING, THROTTLE RETURN

$1.49

$

In Stock, Qty 12

0

18

Echo 125317-42030

SHAFT, THROTTLE

$6.99

$

Usually ships in 2-4 days

0

19

Echo 125327-13930

CLIP

$0.99

$

In Stock, Qty 5

0

20

Echo 125372-42030

SWIVEL

$5.49

$

Usually ships in 2-4 days

0

21

STRAINER

Note: Use Repair Kit P/N 12530211610

$

$

Not available

22

Echo 12531242030

DIAPHRAGM, FUEL PUMP

$6.49

$

In Stock, only 1 left!

0

23

GASKET, PUMP

Note: Use Gasket/Diaphram Kit P/N 12530342030 Use Repair Kit P/N 12530211610

$

$

Not available

24

COVER, PUMP

Note: Use Gasket/Diaphram Kit P/N 12530342030 Use Repair Kit P/N 12530211610

$

$

Not available

25

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$7.49

$

In Stock, Qty 20+

0

26

Echo 12536311610

RETAINER

$2.49

$

In Stock, Qty 14

0

27

Echo 12531011610

SCREW

$1.99

$

In Stock, Qty 5

0

28

Echo 12533413930

SCREW, IDLE ADJUST

$1.99

$

In Stock, only 2 left!

0

29

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

30

NOZZLE, CHECK VALVE

Note: Use Repair Kit P/N 12530211610

$

$

Not available

Echo 12530342030

GASKET / DIAPHRAGM KIT

$16.99

$

In Stock, only 2 left!

0

Echo 12530211610

REPAIR KIT
(Superseded to 12530042030)

$20.99

$

In Stock, only 2 left!

0
