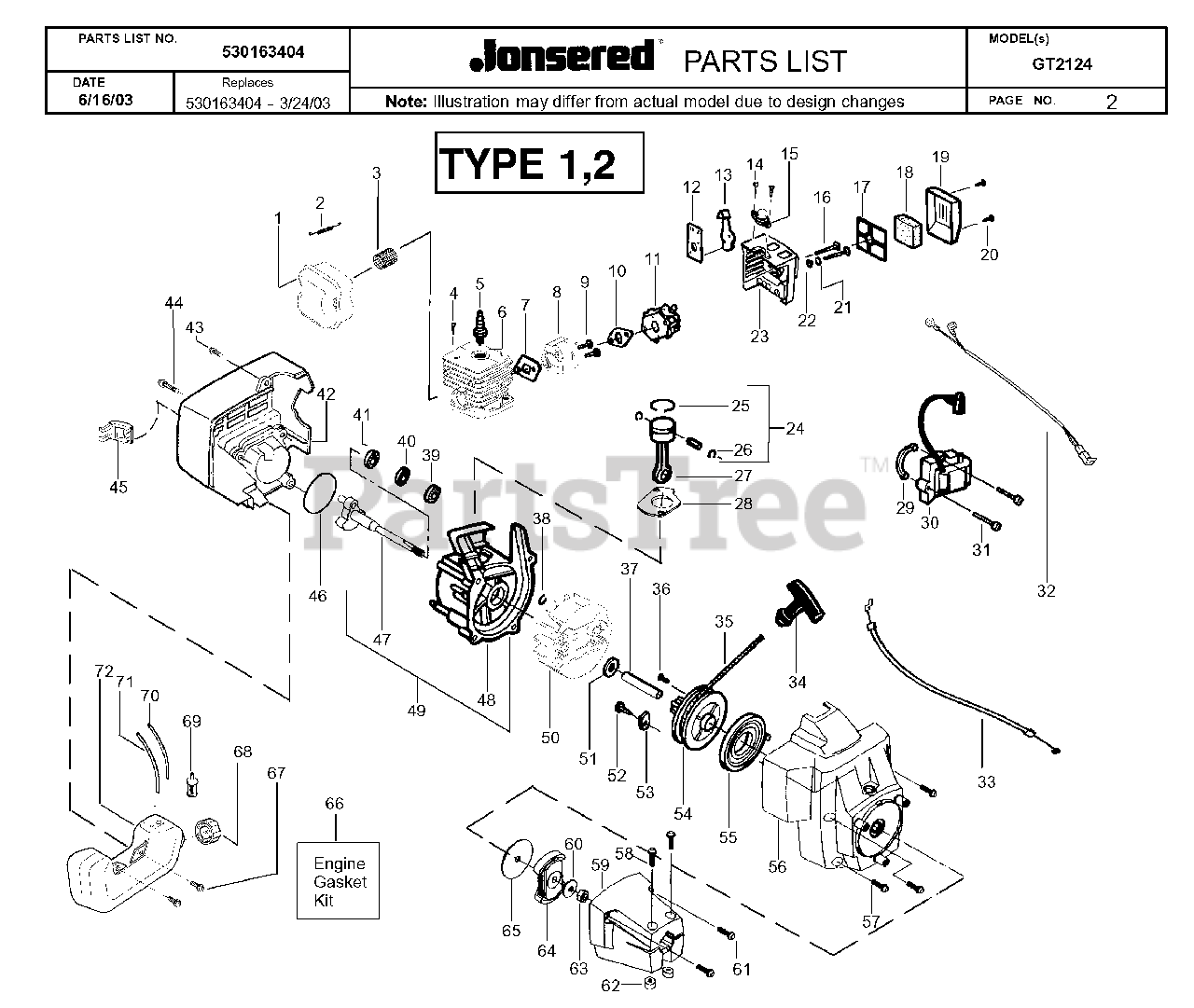

GT 2124 - Jonsered String Trimmer (2004-01) ENGINE Parts Diagram

String Trimmer

ENGINE Parts Diagram

  • Title

1

Jonsered 530071396

KIT-MUFFLER

$

$

Not available

2

Jonsered 530042088

No Description Available

$3.99

$

In Stock, only 1 left!

0

3

Jonsered 530071391

No Description Available

$

$

Not available

4

Jonsered 530015953

SCREW

$6.49

$

In Stock, Qty 8

0

5

Jonsered 952030249

PLUG-SPARK (RCJ-6Y)

$4.99

$

In Stock, Qty 20+

0

6

Jonsered 530071545

No Description Available

$

$

Not available

7

Jonsered 530071363

GASKET KIT

$9.99

$

Usually ships in 3-10 days

0

8

Jonsered 530056404

No Description Available
(Superseded to 545030403)

$

$

Not available

9

Jonsered 530016014

SCREW - CARB. ADAPTOR

$6.49

$

In Stock, only 3 left!

0

10

Jonsered 530071363

GASKET KIT

$9.99

$

Usually ships in 3-10 days

0

11

Jonsered 530069998

CARBURETOR
(Superseded to 530071639)

$63.46

$

In Stock, only 1 left!

0

11

Jonsered 530071639

CARBURETOR

$63.46

$

In Stock, only 1 left!

0

12

Jonsered 530037326

CHOKE PLATE

$

$

Not available

13

Jonsered 530038102

CHOKE SHUTTER

$3.99

$

Usually ships in 3-10 days

0

14

Jonsered 530015780

No Description Available

$6.49

$

In Stock, only 3 left!

0

15

Jonsered 530038874

AIR PURGE BUBBLE

$8.99

$

Usually ships in 3-10 days

0

16

Jonsered 530016353

SCREW

$4.99

$

Usually ships in 3-10 days

0

17

Jonsered 530037413

FILTER PLATE

$

$

Not available

18

Jonsered 530037331

AIR FILTER FOAM

$

$

Not available

19

Jonsered 530037292

AIR FILTER COVER

$4.99

$

Usually ships in 3-10 days

0

20

Jonsered 530016349

SCREW FILTER PLATE

$6.49

$

In Stock, only 4 left!

0

21

Jonsered 530015852

CHOKE SPACER

$2.49

$

In Stock, only 1 left!

0

22

Jonsered 530015254

WASHER

$3.99

$

In Stock, only 2 left!

0

23

Jonsered 530054554

No Description Available

$9.99

$

Usually ships in 3-10 days

0

24

Jonsered 530071357

PISTON
(Superseded to 530071833)

$37.99

$

In Stock, only 1 left!

0

25

Jonsered 530055120

PISTON RING
(Superseded to 545154001)

$4.99

$

In Stock, only 2 left!

0

26

Jonsered 530015162

WRIST PIN RET.

$6.49

$

Usually ships in 3-10 days

0

27

Jonsered 530069945

No Description Available
(Superseded to 530049817)

$9.99

$

Usually ships in 3-10 days

0

28

Jonsered 530071363

GASKET KIT

$9.99

$

Usually ships in 3-10 days

0

29

Jonsered 530036145

SPACER - IGNITION MODULE

$3.99

$

In Stock, only 3 left!

0

30

Jonsered 530039163

IGNITION MODULE

$53.99

$

Usually ships in 3-10 days

0

31

Jonsered 530015954

SCREW.

$4.99

$

Usually ships in 3-10 days

0

32

Jonsered 530047278

LEAD WIRE ASSEMBLY

$7.49

$

Usually ships in 3-10 days

0

33

Jonsered 530056241

No Description Available

$10.99

$

Usually ships in 3-10 days

0

34

Jonsered 530027569

HANDLE-STARTER

$6.49

$

In Stock, only 2 left!

0

35

Jonsered 530069232

KIT-ROPE

$7.49

$

In Stock, Qty 20+

0

36

Jonsered 530016080

SCREW

$6.49

$

In Stock, Qty 11

0

37

Jonsered 530037414

SPACER

$0.99

$

Usually ships in 3-10 days

0

38

Jonsered 530015941

RETAINING RING

$4.99

$

Usually ships in 3-10 days

0

39

Jonsered 530055728

OUTER BEARING

$9.99

$

Usually ships in 3-10 days

0

40

Jonsered 530071615

KIT-CRANKCASE SEAL

$7.49

$

Usually ships in 3-10 days

0

41

Jonsered 530032125

BEARING
(Superseded to 738210101)

$12.99

$

Usually ships in 3-10 days

0

42

Jonsered 530057023

No Description Available

$

$

Not available

43

Jonsered 530015934

SCREW

$4.99

$

In Stock, only 1 left!

0

44

Jonsered 530015810

SCREW - SHROUD
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0

45

Jonsered 530054536

No Description Available

$

$

Not available

46

Jonsered 530071363

GASKET KIT

$9.99

$

Usually ships in 3-10 days

0

47

Jonsered 530014864

CRANKSHAFT ASSEMBLY

$21.99

$

Usually ships in 3-10 days

0

48

Jonsered 530012491

CRANKCASE
(Superseded to 530071627)

$26.99

$

Usually ships in 3-10 days

0

49

Jonsered 530071610

No Description Available

$

$

Not available

50

Jonsered 530069886

FLYWHEEL
(Superseded to 545221701)

$13.99

$

In Stock, only 1 left!

0

51

Jonsered 530015149

WASHER

$4.99

$

In Stock, only 3 left!

0

52

Jonsered 530015775

SCREW 8-16 X 9/16 (PLAS

$6.49

$

In Stock, only 2 left!

0

53

Jonsered 530027523

RETAINER

$7.49

$

In Stock, only 2 left!

0

54

Jonsered 530069400

STARTER PULLEY KIT
(Superseded to 530071786)

$7.49

$

In Stock, Qty 12

0

55

Jonsered 530042085

STARTER SPRING
(Superseded to 545008010)

$7.49

$

In Stock, Qty 20+

0

56

Jonsered 530047493

HOUSING

$14.99

$

Usually ships in 3-10 days

0

57

Jonsered 530015810

SCREW - SHROUD
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0

58

Jonsered 530015767

SCREW-10-24 X 1-3/8 (UN

$3.99

$

In Stock, only 2 left!

0

59

Jonsered 530047073

CLUTH COVER

$17.99

$

Usually ships in 3-10 days

0

60

Jonsered 530015828

WASHER FLAT

$4.99

$

In Stock, only 1 left!

0

61

Jonsered 530015886

SCREW-10-14 X 13/16 (PL

$6.49

$

In Stock, Qty 17

0

62

Jonsered 530015768

LOCKNUT-HEX 10-24

$6.49

$

In Stock, only 2 left!

0

63

Jonsered 530626605

NUT

$3.99

$

Usually ships in 3-10 days

0

64

Jonsered 530069491

CLUTCH ASSEMBLY KIT

$

$

Not available

65

Jonsered 530015611

FRICTION DISC,CLUTCH 36/41

$6.49

$

In Stock, Qty 20+

0

66

Jonsered 530071363

GASKET KIT

$9.99

$

Usually ships in 3-10 days

0

67

Jonsered 530016379

No Description Available

$4.99

$

Usually ships in 3-10 days

0

68

Jonsered 530014347

CAP ASSY W/ RETAINER

$8.99

$

In Stock, Qty 5

0

69

Jonsered 530095646

FUEL PICK-UP ASSY

$4.99

$

In Stock, Qty 20+

0

70

Jonsered 530069216

LINE KIT

$6.49

$

In Stock, Qty 20+

0

71

Jonsered 530069247

KIT-LINE

$6.49

$

In Stock, Qty 20+

0

72

Jonsered 530057045

No Description Available

$

$
