GT-22 GES - Echo String Trimmer (Original Version) Engine Parts Diagram

String Trimmer

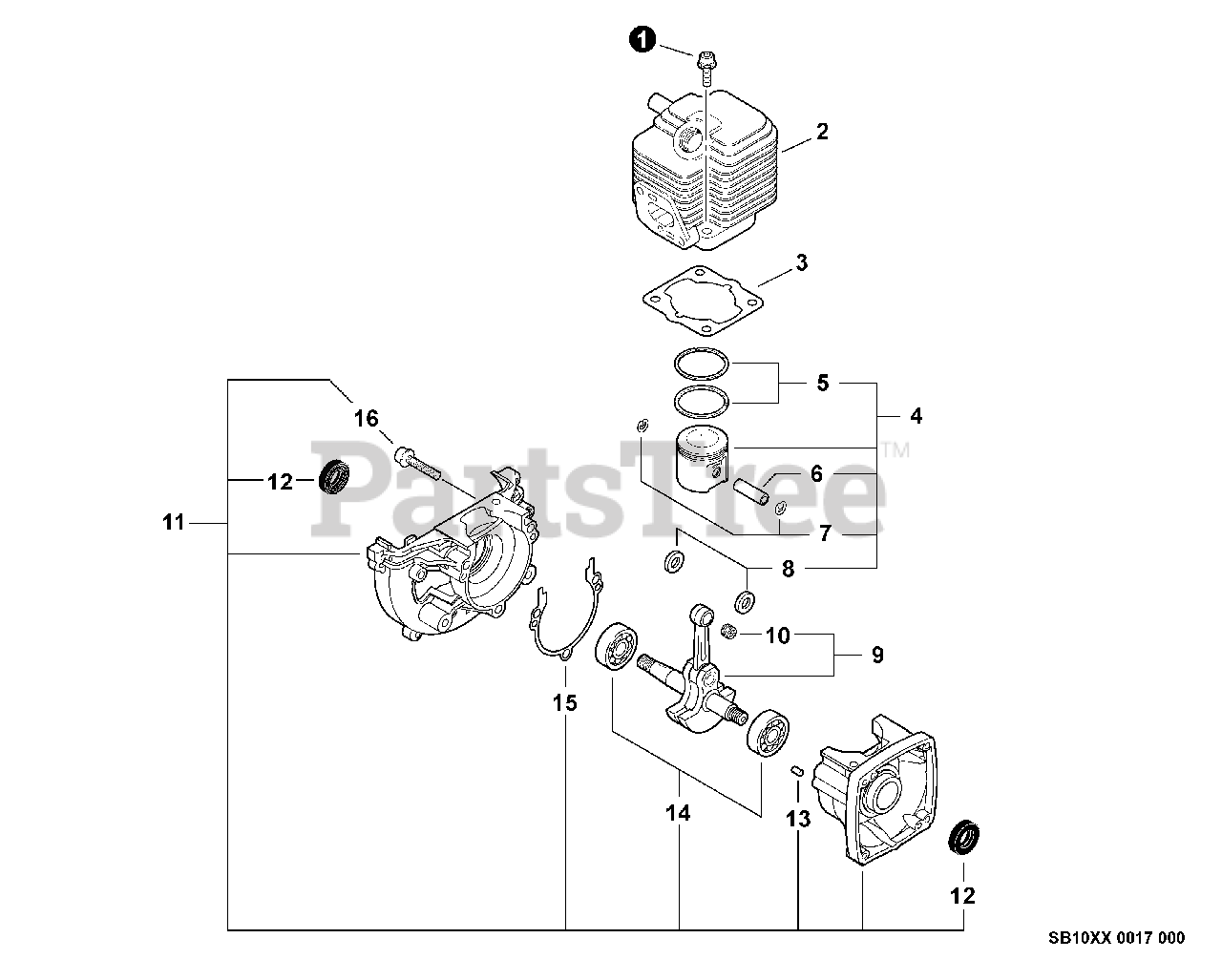

Engine Parts Diagram

  • Title

1

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 5

0

2

Echo A130000021

CYLINDER
(Superseded to A130002300)

$133.99

$

Usually ships in 2-4 days

0

3

Echo 10101044332

GASKET, CYLINDER

$4.99

$

In Stock, Qty 12

0

4

Echo P021009950

PISTON KIT

Note: Includes ITEMS 5-8

$58.99

$

Usually ships in 2-4 days

0

5

Echo A101000000

RING, PISTON

$10.99

$

In Stock, Qty 15

0

6

Echo 10001311520

PIN, PISTON

$8.49

$

In Stock, only 2 left!

0

7

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

8

Echo V306000150

WASHER - 8

$2.99

$

Usually ships in 2-4 days

0

9

Echo A011000002

CRANKSHAFT ASSY

Note: Includes ITEM 10

$177.99

$

Usually ships in 2-4 days

0

10

Echo V553000010

BEARING, NEEDLE - 8

$11.99

$

In Stock, only 2 left!

0

11

Echo 10020452133

CRANKCASE KIT
(Superseded to P100001870)

Note: Includes ITEMS 12-16

$

$

Not available

12

Echo 10021242031

SEAL, OIL

$7.99

$

In Stock, Qty 5

0

13

Echo 10021503930

PIN - LOCATING
(Superseded to 90033040080)

$1.49

$

In Stock, Qty 13

0

14

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

In Stock, only 3 left!

0

15

Echo 10024242030

GASKET, CRANKCASE

$1.99

$

In Stock, Qty 10

0

16

Echo 90016205028

SCREW - 5X28

$2.49

$

In Stock, Qty 11

0
