GT-22 GES - Echo String Trimmer (SN: U54026001001 - U54026999999) Engine Parts Diagram

String Trimmer

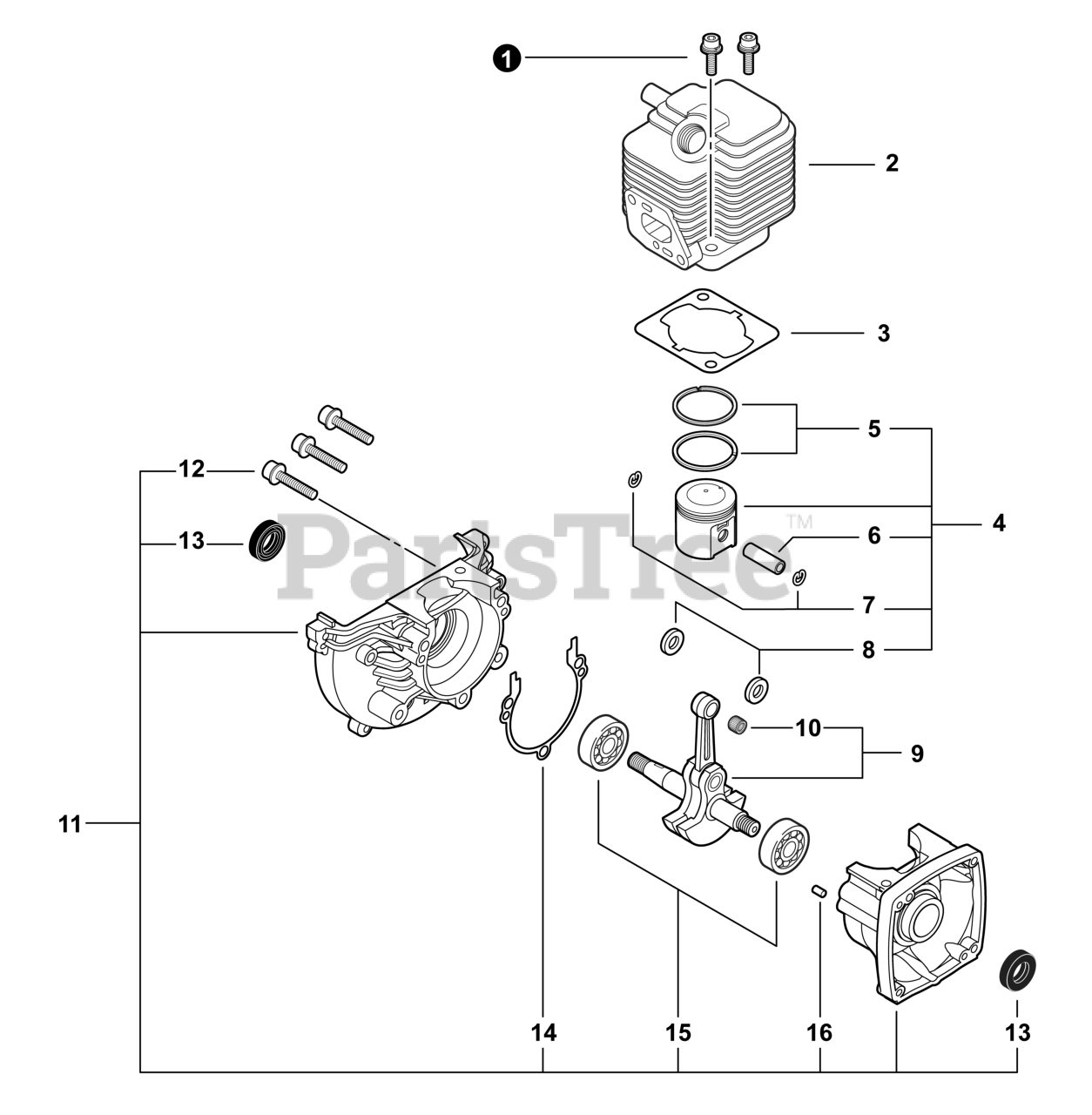

Engine Parts Diagram

  • Title

1

Echo 90016205022

BOLT 5x22

$0.99

$

In Stock, Qty 5

0

2

Echo A130000012

CYLINDER

$139.99

$

Usually ships in 2-4 days

0

3

Echo 10101044332

GASKET, CYLINDER

$4.99

$

In Stock, Qty 12

0

4

Echo P021009950

PISTON KIT

Note: Includes Items 5-8

$58.99

$

Usually ships in 2-4 days

0

5

Echo A101000000

RING, PISTON

$10.99

$

In Stock, Qty 15

0

6

Echo 10001311520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

7

Echo 10001504630

RING, SNAP

$0.99

$

In Stock, Qty 20+

0

8

Echo V306000150

WASHER 8.2x13x0.8

$2.99

$

Usually ships in 2-4 days

0

9

Echo A011001300

CRANKSHAFT ASSY

Note: Includes Item 10

$147.99

$

Usually ships in 2-4 days

0

10

Echo V553000010

BEARING, NEEDLE 8

$11.99

$

In Stock, only 2 left!

0

11

Echo 10020452133

CRANKCASE KIT
(Superseded to P100001870)

Note: Includes Items 12-16

$

$

Not available

12

Echo 90016205028

BOLT 5x28

$2.49

$

In Stock, Qty 11

0

13

Echo 10021242031

SEAL, OIL 12

$7.99

$

In Stock, Qty 5

0

14

Echo 10024242030

GASKET, CRANKCASE

$1.99

$

In Stock, Qty 10

0

15

Echo 9403536201

BEARING, BALL 6201

$9.99

$

In Stock, only 3 left!

0

16

Echo 90033040080

PIN, LOCATING 4x8

$1.49

$

In Stock, Qty 13

0
