GT-22 GES - Echo String Trimmer (SN: U54026001001 - U54026999999) Fuel System Parts Diagram

String Trimmer

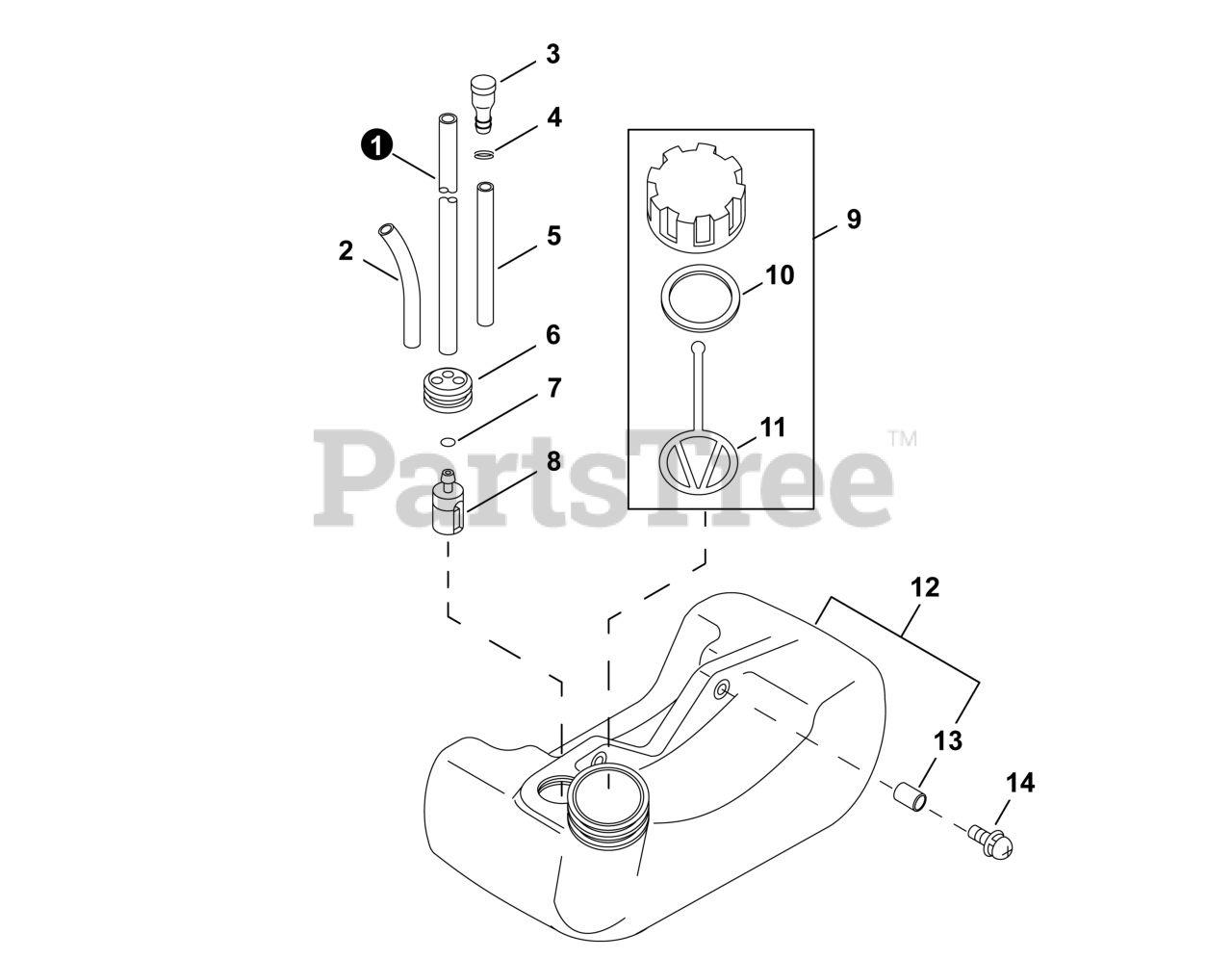

Fuel System Parts Diagram

  • Title

1

Echo V471001191

PIPE, FUEL 3x5x180 BLACK

$1.99

$

In Stock, Qty 20+

0

2

Echo 13271750430

PIPE, FUEL RETURN 3x6x70

$2.49

$

In Stock, Qty 8

0

3

Echo 13130056431

VENT ASSY

$8.99

$

In Stock, Qty 20+

0

4

Echo 13011100530

CLIP 5.5

$0.99

$

In Stock, Qty 20+

0

5

Echo V471001201

PIPE, FUEL 3x5x70 BLACK

$2.49

$

In Stock, Qty 20+

0

6

Echo 13211546730

GROMMET, FUEL 5

$2.49

$

In Stock, Qty 20+

0

7

Echo V490001240

CLIP 6

$0.99

$

In Stock, Qty 20+

0

8

Echo A369000480

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

9

Echo P021012211

CAP ASSY, FUEL

Note: Includes Items 10-11

$7.49

$

Usually ships in 2-4 days

0

10

Echo V107000190

GASKET, FUEL CAP

$1.49

$

In Stock, Qty 20+

0

11

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 20+

0

12

Echo A350000032

TANK, FUEL

Note: Includes Item 13

$30.99

$

Usually ships in 2-4 days

0

13

Echo 13104528230

SPACER 6.2x7.8x6

$1.99

$

In Stock, Qty 20+

0

14

Echo 90024305016

SCREW 5x16

$0.99

$

Usually ships in 2-4 days

0
