GT 22 L - Jonsered String Trimmer,TYPE I, TYPE II (1994-01) CARBURETOR DETAILS Parts Diagram

String Trimmer,TYPE I, TYPE II

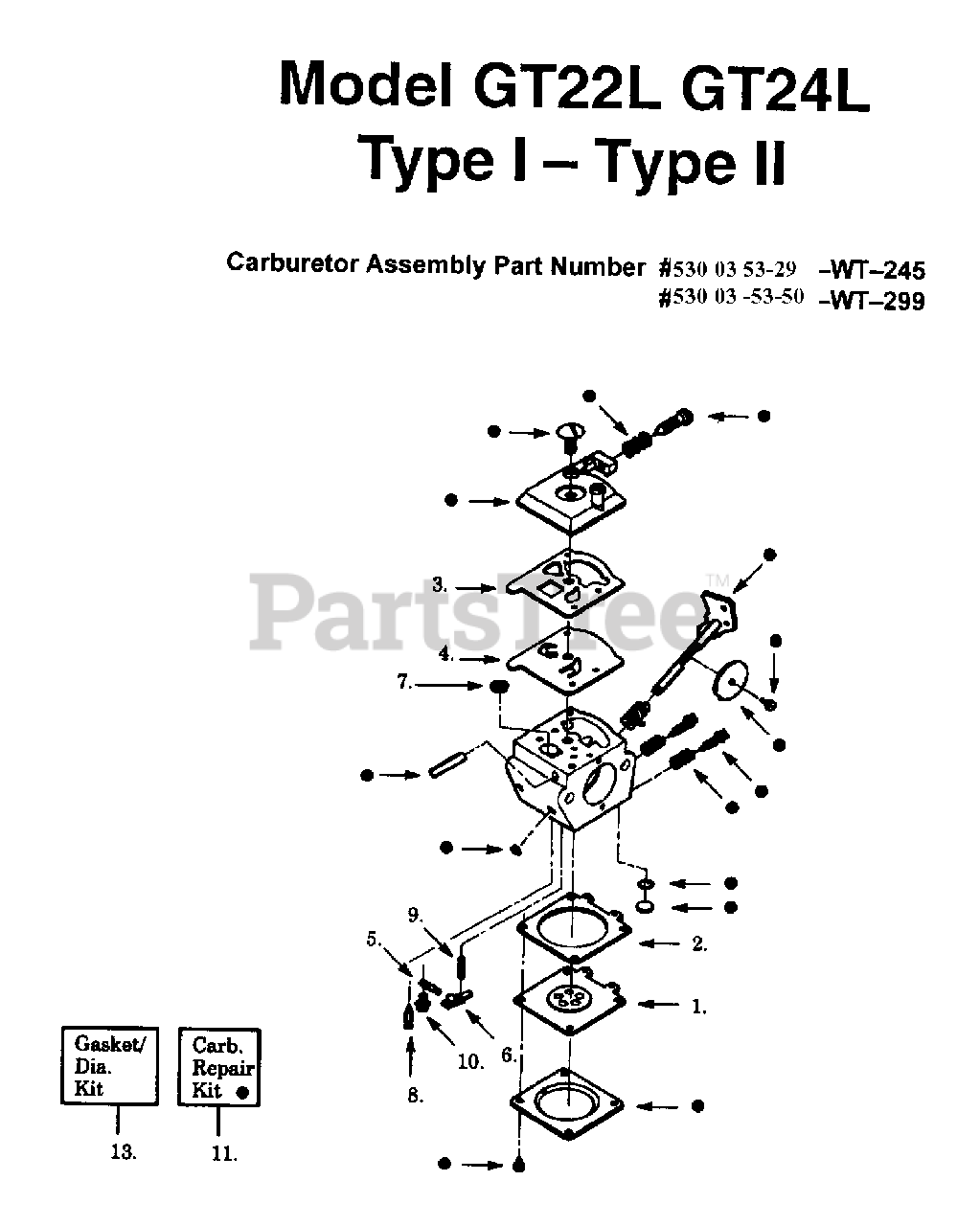

CARBURETOR DETAILS Parts Diagram

  • Title

1

Jonsered 504130808

METERING DIAPHRAGM
(Superseded to 503896701)

$8.99

$

In Stock, only 2 left!

0

2

Jonsered 530035332

GASKET-METERING DIAPHRAGM
(Superseded to 530035320)

$4.99

$

Usually ships in 3-10 days

0

3

Jonsered 504130906

GASKET

$4.99

$

In Stock, Qty 5

0

4

Jonsered 504130807

PUMP DIAPHRAGM

$6.49

$

In Stock, Qty 11

0

5

Jonsered 505520125

FULCRUM PIN

$3.49

$

In Stock, only 3 left!

0

6

Jonsered 505520127

LEVER

$5.99

$

Usually ships in 3-10 days

0

7

Jonsered 530035178

SCREEN-DUTCH TWILL INLE

$3.99

$

Usually ships in 3-10 days

0

8

Jonsered 503117001

VALVE/INLET.

$11.99

$

In Stock, Qty 11

0

9

Jonsered 530037330

METERING LEVER SPRING

$

$

Not available

10

Jonsered 530035016

SCREW

$3.49

$

In Stock, Qty 6

0

11

Jonsered 530069460

CARBURETOR REPAIR KIT
(Superseded to 530069902)

$63.46

$

In Stock, only 1 left!

0

12

Jonsered 530035211

GASKET

$

$

Not available

13

Jonsered 503069462

No Description Available

$

$

Not available
