GT-2200 - Echo String Trimmer Clutch Drum, Clutch Housing, Driveshaft, Handles, Ignition Switch, Throttle Parts Diagram

String Trimmer

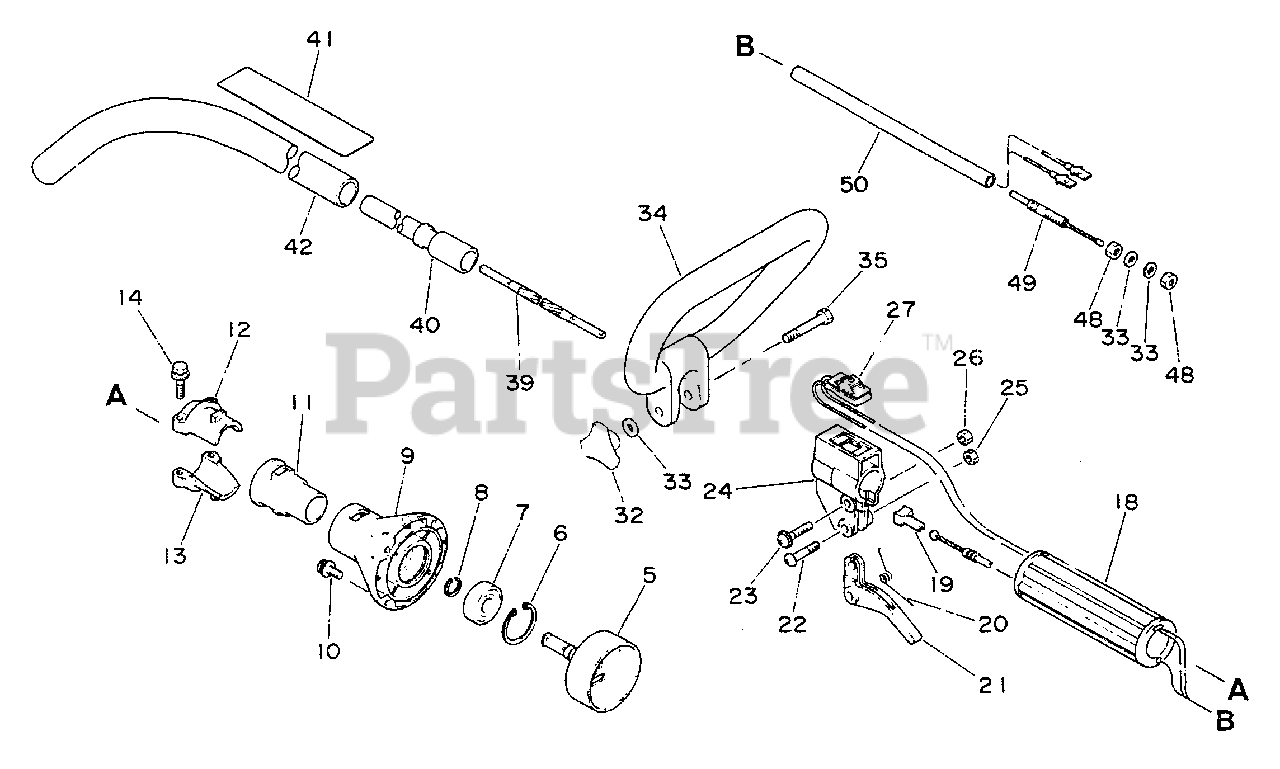

Clutch Drum, Clutch Housing, Driveshaft, Handles, Ignition Switch, Throttle Parts Diagram

  • Title

5

Echo 17500540630

DRUM, CLUTCH
(Superseded to Discontinued)

$

$

Not available

6

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 10

0

7

Echo 90081936201

BEARING, BALL - 6201
(Superseded to 90081906201)

$13.99

$

In Stock, Qty 8

0

8

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 9

0

9

Echo 61022340630

FLANGE, DRIVESHAFT
(Superseded to Discontinued)

$

$

Not available

10

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

11

Echo 61091040630

CUSHION
(Superseded to Discontinued)

$

$

Not available

12

Echo 61092240630

CLAMP, MAIN PIPE
(Superseded to Discontinued)

$

$

Not available

13

Echo 61092340630

Holder, housing
(Superseded to Discontinued)

$

$

Not available

14

Echo 90014205025

BOLT - 5X25

$0.99

$

In Stock, Qty 13

0

18

Echo 35111109630

GRIP, HANDLE
(Superseded to 35111144530)

$13.99

$

Usually ships in 2-4 days

0

19

Echo 17804805630

GUIDE, CABLE

$1.99

$

In Stock, Qty 8

0

20

Echo 17804306930

SPRING, TRIGGER

$1.49

$

In Stock, Qty 11

0

21

Echo 17801005630

TRIGGER, THROTTLE
(Superseded to 17801005631)

$1.49

$

In Stock, Qty 10

0

22

Echo 17811005330

SCREW - 5X30

$0.99

$

In Stock, Qty 16

0

23

Echo 90024005028

SCREW - 5X28

$0.99

$

In Stock, Qty 9

0

24

Echo 17802409630

BRACKET, THROTTLE
(Superseded to Discontinued)

$

$

Not available

25

Echo 43302000830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 20+

0

26

Echo 90050000005

NUT - 5

$0.99

$

Usually ships in 2-4 days

0

27

Echo 16340040630

IGNITION SWITCH ASSY
(Superseded to 16340049130)

$

$

Not available

32

Echo 35232540630

KNOB, FASTENER
(Superseded to 90052500006)

$1.49

$

In Stock, Qty 20+

0

33

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 8

0

34

Echo 35161040630

HANDLE
(Superseded to 35120150630)

$34.99

$

Usually ships in 2-4 days

0

35

Echo 90010006045

BOLT - 6X45

$0.99

$

In Stock, Qty 20+

0

39

Echo 61001309630

DRIVESHAFT - FLEXIBLE
(Superseded to C506000030)

$15.99

$

In Stock, Qty 14

0

40

Echo 61021709630

BUSHING
(Superseded to Discontinued)

$

$

Not available

41

Echo 89016009631

LABEL - CAUTION
(Superseded to 89016026630)

$

$

Not available

42

Echo 61021040630

PIPE, MAIN
(Superseded to 61060944330)

$53.99

$

In Stock, Qty 8

0

48

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 20+

0

49

Echo 17800140630

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

50

Echo 17812740630

TUBE - VINYL
(Superseded to Discontinued)

$

$

Not available
