GT-2200 - Echo String Trimmer Fuel System Parts Diagram

String Trimmer

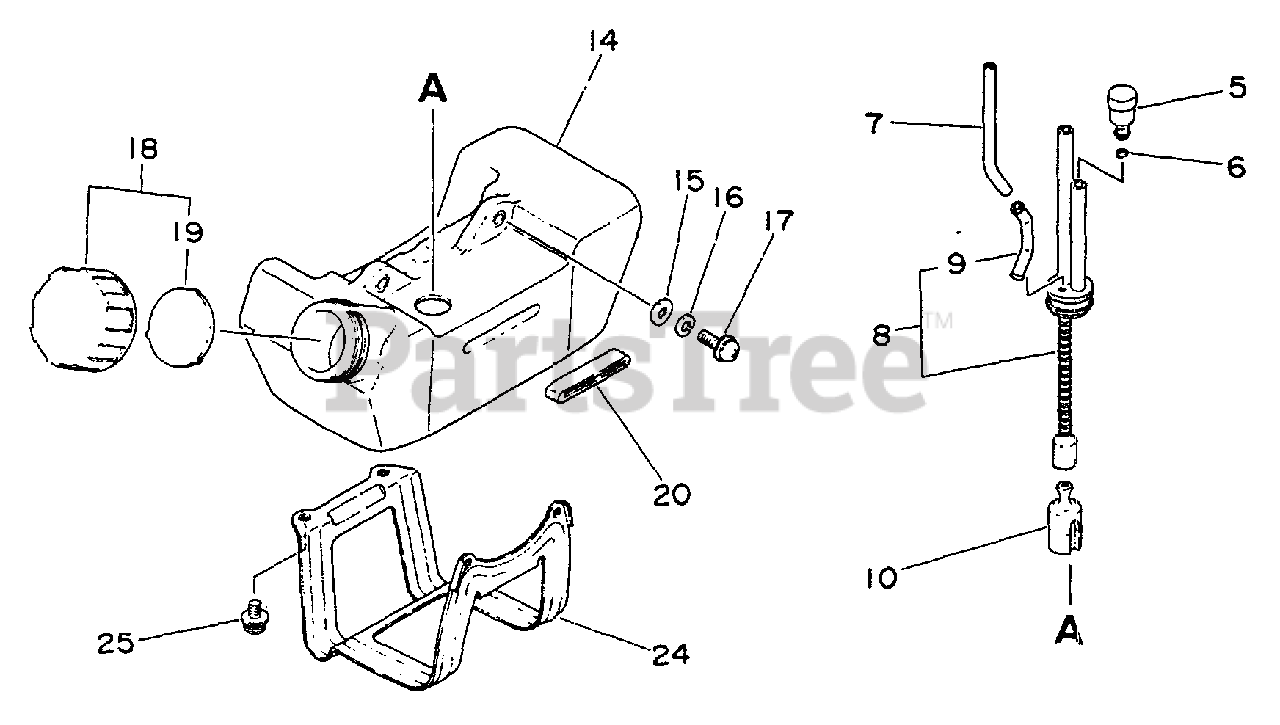

Fuel System Parts Diagram

  • Title

5

Echo 13130040630

VENT ASSY
(Superseded to 13130056430)

$8.99

$

In Stock, Qty 7

0

6

Echo 130111-00530

CLIP 5.5

$0.99

$

In Stock, Qty 20+

0

7

Echo 13201040830

PIPE, FUEL 3×6×75 CLEAR

Note: RePower BULK OPTION: 90017

$2.49

$

In Stock, Qty 20+

0

8

Echo 13200240630

PIPE KIT, FUEL
(Superseded to Discontinued)

$

$

Not available

9

Echo 13202140630

CONNECTOR, PIPE

$6.99

$

In Stock, only 2 left!

0

10

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

14

Echo 13100540630

TANK, FUEL
(Superseded to 13100540530)

$

$

Not available

15

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

16

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

17

Echo 90022005016

SCREW 5×16

$0.99

$

In Stock, Qty 6

0

18

Echo 13100440630

CAP ASSY
(Superseded to 13100440930)

$

$

Not available

19

Echo 13101640630

GASKET
(Superseded to Discontinued)

$

$

Not available

20

Echo 13192040630

CUSHION, FUEL TANK

$2.49

$

Usually ships in 2-4 days

0

24

Echo 30511040630

GUARD, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

25

Echo 90023805010

SCREW 5×10

$0.99

$

In Stock, Qty 13

0
