GT-225 - Echo String Trimmer (SN: S53912001001 - S53912999999) Engine, Short Block -- SB1096 Parts Diagram

String Trimmer

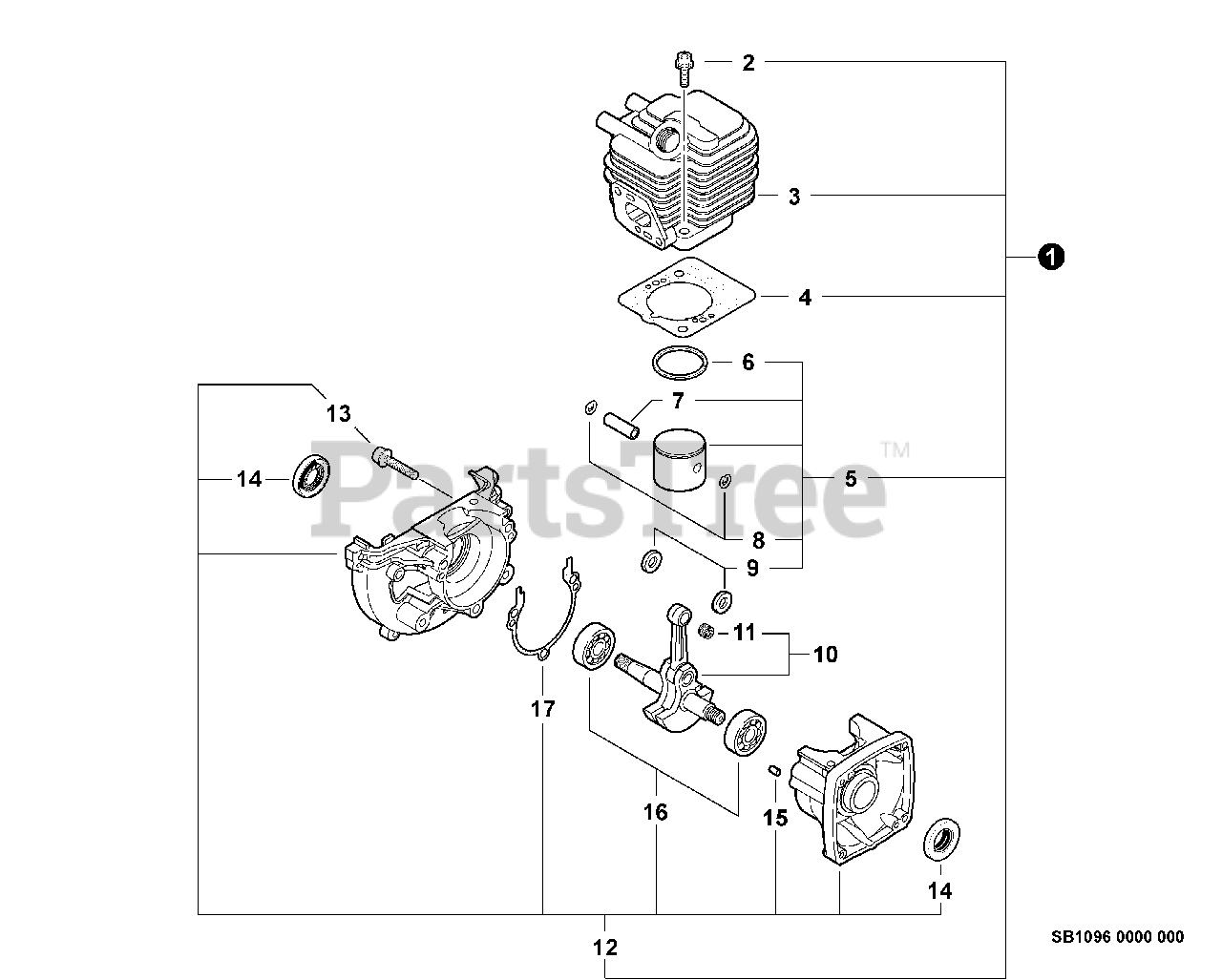

Engine, Short Block -- SB1096 Parts Diagram

  • Title

1

Echo SB1096

SHORT BLOCK -- SB1096

Note: Includes ITEM 2-20

$188.99

$

In Stock, only 3 left!

0

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 8

0

3

Echo A130000540

CYLINDER

$93.99

$

In Stock, only 2 left!

0

4

Echo V100000160

GASKET, CYLINDER

Note: Included In GASKET KIT

$7.49

$

In Stock, Qty 15

0

5

Echo P021007712

PISTON KIT

Note: Includes ITEMS 6-9

$

$

Not available

6

Echo A101000090

RING, PISTON

$

$

Not available

7

Echo 10001311520

PIN, PISTON

$8.49

$

In Stock, only 2 left!

0

8

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

9

Echo 10001411520

SPACER, PISTON

$3.99

$

In Stock, only 2 left!

0

10

Echo A011000101

CRANKSHAFT ASSY
(Superseded to A011001410)

Note: Includes ITEM 11

$186.99

$

Usually ships in 2-4 days

0

11

Echo V553000060

BEARING, NEEDLE - 8

$12.99

$

In Stock, only 2 left!

0

12

Echo 10020452132

CRANKCASE KIT
(Superseded to 10020452133)

Note: Includes ITEMS 13-17

$

$

Not available

13

Echo 90016205028

SCREW - 5X28

$2.49

$

In Stock, Qty 11

0

14

Echo 10021242031

SEAL, OIL

$7.99

$

In Stock, Qty 7

0

15

Echo 90033040080

PIN - LOCATING

$1.49

$

In Stock, Qty 15

0

16

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

Usually ships in 2-4 days

0

17

Echo 10024242030

GASKET, CRANKCASE

Note: Included In GASKET KIT

$1.99

$

In Stock, Qty 10

0
