GT-225 - Echo String Trimmer (SN: S96013001001 - S96013999999) Carburetor S/N: S96013060001-S96013999999 Parts Diagram

String Trimmer

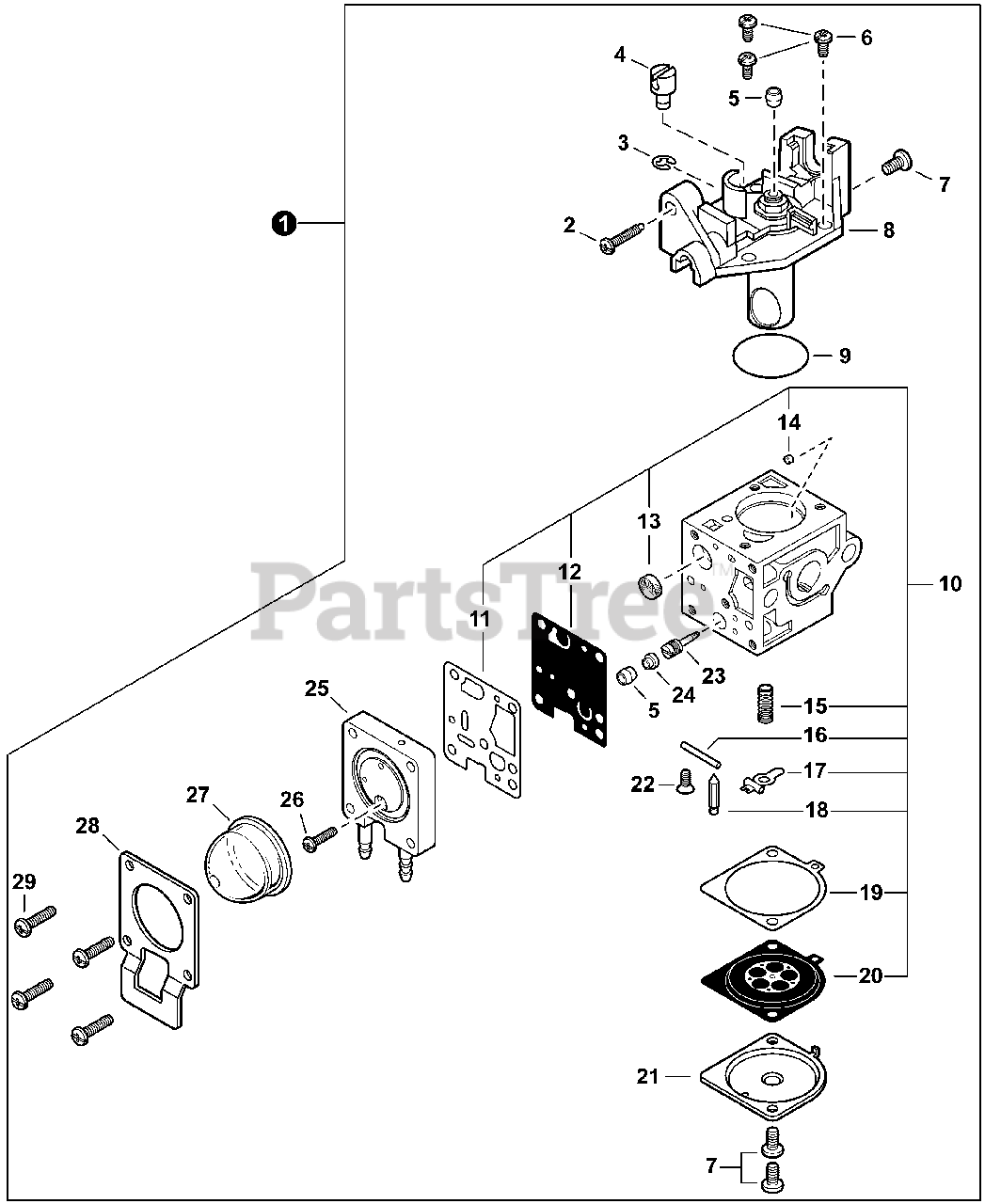

Carburetor S/N: S96013060001-S96013999999 Parts Diagram

  • Title

1

Echo A021004270

CARBURETOR - GL-2

Note: Includes Items 2-29

$69.99

$

In Stock, Qty 10

0

2

Echo P006000260

SCREW, THROTTLE ADJUST

$6.99

$

Usually ships in 2-4 days

0

3

Echo P006000250

E-RING

$1.99

$

Usually ships in 2-4 days

0

4

Echo P006000240

SWIVEL

$4.99

$

Usually ships in 2-4 days

0

5

Echo P006000220

CAP, LIMITER
(Superseded to A259000060)

$

$

Not available

6

Echo P006000090

SCREW

$1.49

$

Usually ships in 2-4 days

0

7

Echo P006000100

SCREW

$1.49

$

Usually ships in 2-4 days

0

8

Echo P006000080

COVER ASSY, ROTOR
(Superseded to Discontinued)

$

$

Not available

9

Echo P006000190

O-RING

$3.99

$

Usually ships in 2-4 days

0

10

Echo P006000280

REPAIR KIT

Note: Includes Items 11-20

$18.99

$

In Stock, Qty 12

0

11

GASKET, PUMP

$

$

Not available

12

DIAPHRAGM, PUMP

$

$

Not available

13

SCREEN, FUEL INLET

$

$

Not available

14

GUIDE, ROLLER

$

$

Not available

15

SPRING, METERING LEVER

$

$

Not available

16

PIN, METERING LEVER

$

$

Not available

17

LEVER, METERING

$

$

Not available

18

VALVE, INLET NEEDLE

$

$

Not available

19

GASKET, METERING DIAPHRAGM

$

$

Not available

20

DIAPHRAGM, METERING

$

$

Not available

21

Echo P006000180

COVER, METERING DIAPHRAGM

$5.49

$

Usually ships in 2-4 days

0

22

Echo P006000150

SCREW

$1.49

$

Usually ships in 2-4 days

0

23

Echo P006000230

NEEDLE, HIGH SPEED

$3.99

$

Usually ships in 2-4 days

0

24

Echo P006000210

RETAINER, CAP

$

$

Currently unavailable

25

Echo P006000020

BODY ASSY, PURGE

$34.99

$

Usually ships in 2-4 days

0

26

Echo P006000030

SCREW

$1.49

$

Usually ships in 2-4 days

0

27

Echo P006000040

BULB, PURGE

$6.99

$

In Stock, Qty 14

0

28

Echo P006000050

RETAINER, PURGE BULB

$3.49

$

Usually ships in 2-4 days

0

29

Echo P006000060

SCREW

$1.49

$

Usually ships in 2-4 days

0
