GT-225 - Echo String Trimmer (SN: T75514001001 - T75514999999) Intake Parts Diagram

String Trimmer

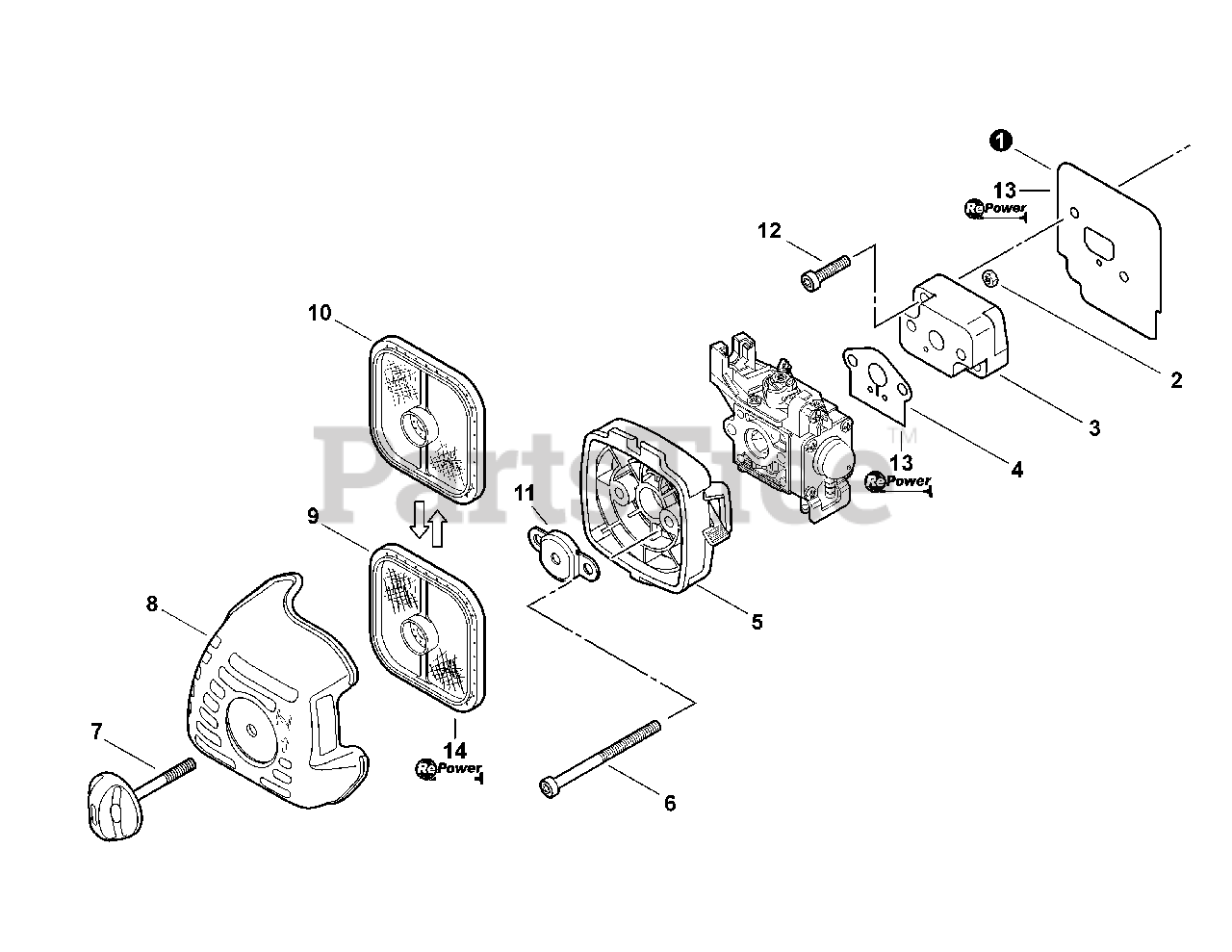

Intake Parts Diagram

  • Title

1

Echo V103001360

HEAT SHIELD, INTAKE

Note: See RePower Maintenance Page

$2.99

$

In Stock, Qty 12

0

2

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

3

Echo 13001744331

INSULATOR, INTAKE

$11.99

$

In Stock, only 3 left!

0

4

Echo V103001500

GASKET, INTAKE

Note: See RePower Maintenance Page

$1.49

$

In Stock, Qty 20+

0

5

Echo P021012870

CASE ASSY, AIR FILTER

$13.99

$

In Stock, Qty 20+

0

6

Echo V805000100

BOLT, TORX 5×65

$1.99

$

In Stock, Qty 20+

0

7

Echo V299000250

THUMBSCREW

$4.99

$

In Stock, Qty 5

0

8

Echo A232000480

COVER, AIR FILTER
(Superseded to A232001850)

$6.49

$

In Stock, Qty 20+

0

9

Echo A226001410

FILTER, AIR - DOUBLE LAYER

Note: See RePower Maintenance Page

$8.99

$

In Stock, Qty 20+

0

10

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

Note: OPTIONAL

$8.99

$

In Stock, Qty 20+

0

11

Echo 12901152730

PLATE, PREVENT

$4.49

$

In Stock, Qty 5

0

12

Echo V805000160

BOLT, TORX 5×20

$0.99

$

In Stock, Qty 20+

0

13

Echo P021015980

GASKET KIT
(Superseded to P021015981)

Note: See RePower Maintenance Page

$26.99

$

In Stock, only 1 left!

0

14

Echo 90152

TUNE-UP KIT - REPOWER
(Superseded to 90152Y)

Note: See RePower Maintenance Page

$21.99

$

In Stock, Qty 20+

0
