GT-225 - Echo String Trimmer (SN: U34329001001 - U34329999999) Fuel System Parts Diagram

String Trimmer

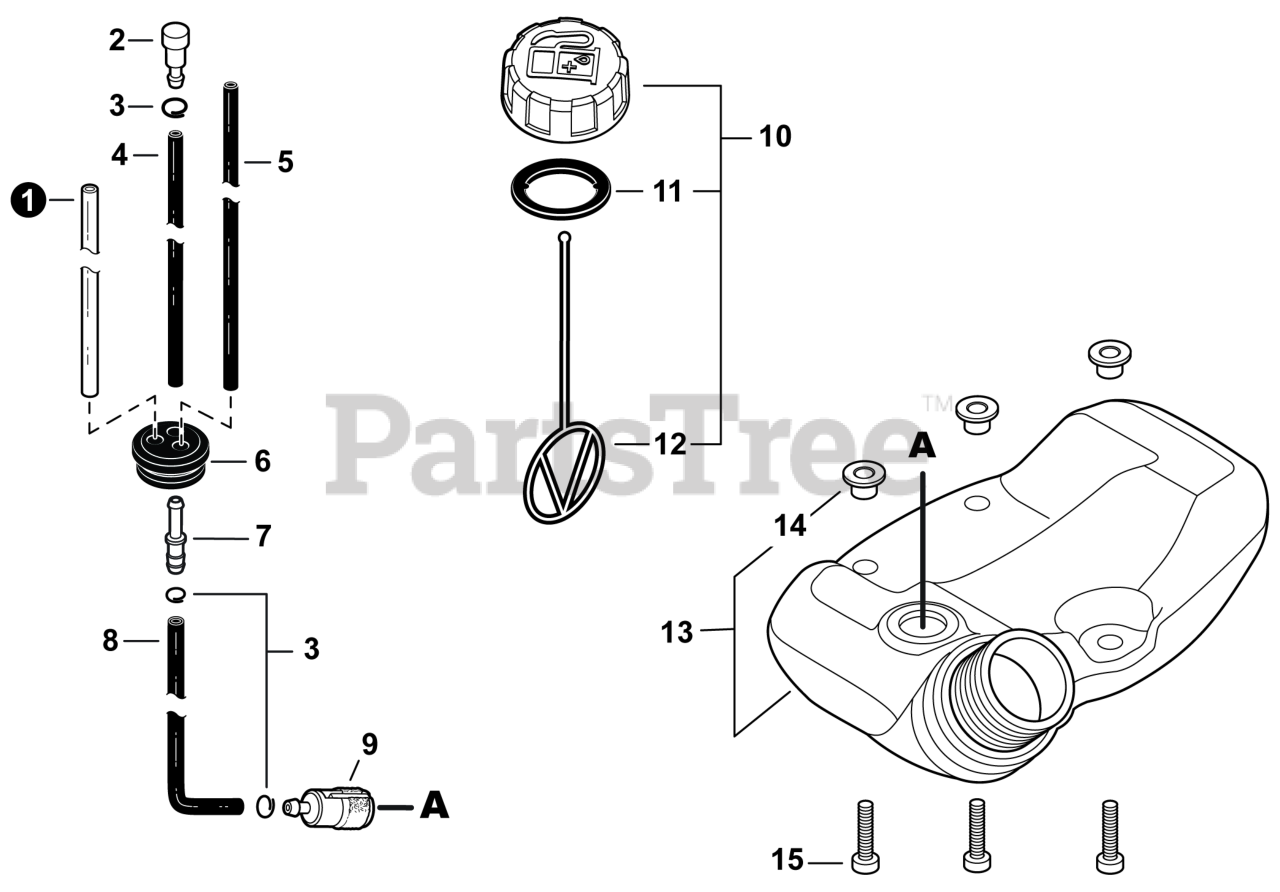

Fuel System Parts Diagram

  • Title

1

Echo 13201256030

PIPE, FUEL 3x6x80 YELLOW

$3.49

$

In Stock, Qty 20+

0

2

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

3

Echo V490001240

CLIP 6

$0.99

$

In Stock, Qty 20+

0

4

Echo V471001211

PIPE, FUEL 3x5x90 BLACK

$0.99

$

In Stock, Qty 20+

0

5

Echo V471005620

PIPE, FUEL 3x5.5x74 BLACK

$3.49

$

In Stock, Qty 11

0

6

Echo 13211546730

GROMMET, FUEL 5

$1.99

$

In Stock, Qty 20+

0

7

Echo V186000520

CONNECTOR, PIPE 5x3.5

$0.99

$

In Stock, Qty 20+

0

8

Echo V471003701

PIPE, FUEL 3x5x130 BLACK

$1.49

$

Usually ships in 2-4 days

0

9

Echo A369000480

FILTER, FUEL

$5.49

$

In Stock, Qty 20+

0

10

Echo P021040430

CAP ASSY, FUEL

Note: Includes Items 11-12

$5.99

$

In Stock, Qty 20+

0

11

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

12

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 20+

0

13

Echo A350002271

TANK ASSY, FUEL

Note: Includes Item 14

$26.99

$

In Stock, only 4 left!

0

14

Echo V353000231

COLLAR 5

$3.99

$

In Stock, only 2 left!

0

15

Echo V805000160

BOLT, TORX 5x20

$0.99

$

In Stock, Qty 20+

0
