GT-225 i - Echo String Trimmer (SN: T86314001001 - T86314999999) Fuel System Parts Diagram

String Trimmer

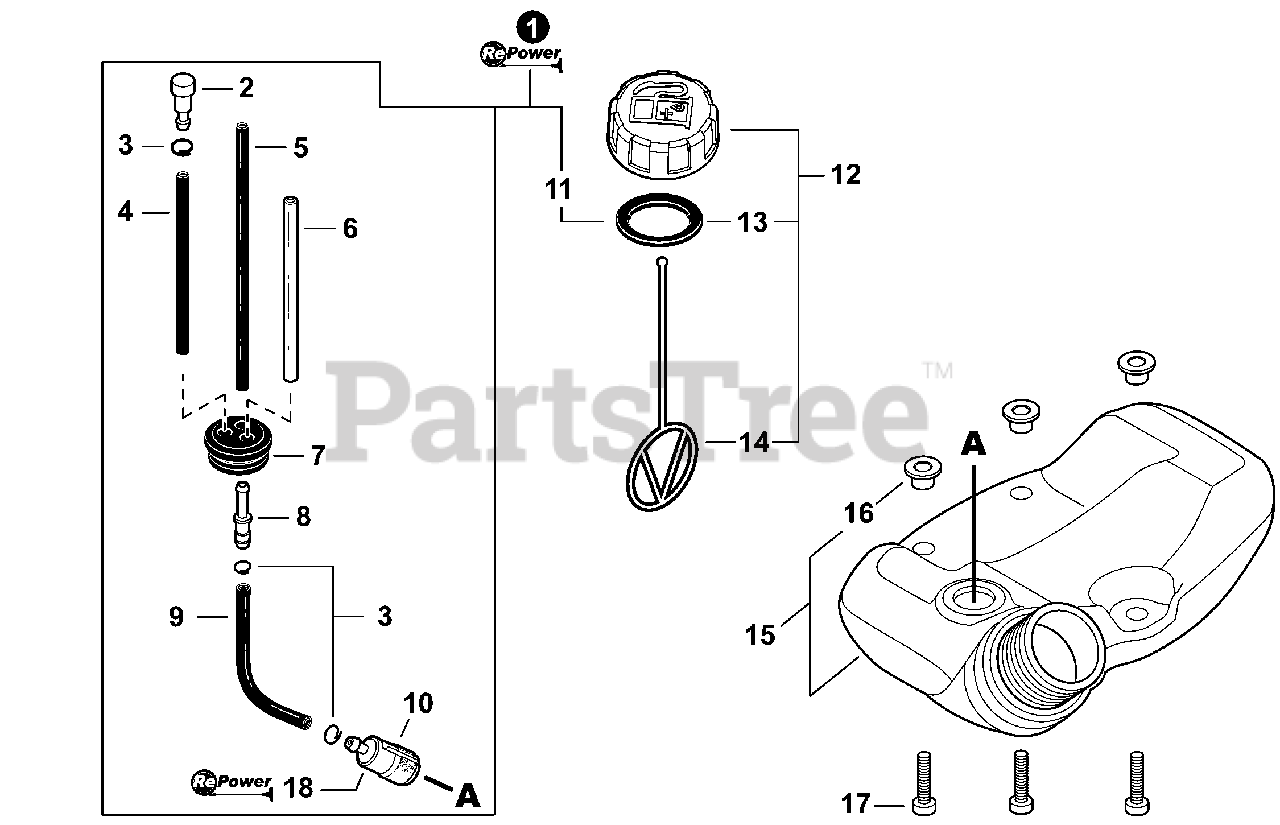

Fuel System Parts Diagram

  • Title

1

Echo 90127

FUEL SYSTEM KIT
(Superseded to 90127Y)

Note: Includes Items 2-11 See Repower Maintenance Kits

$30.99

$

Usually ships in 2-4 days

0

2

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

3

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, only 3 left!

0

4

Echo V471001210

PIPE, FUEL 3×5×90 BLACK
(Superseded to V471001211)

Note: RePower Bulk Option: 90014

$0.99

$

In Stock, Qty 20+

0

5

Echo V471003691

PIPE, FUEL 3×5×74 BLACK
(Superseded to V471005620)

$3.99

$

In Stock, Qty 13

0

6

Echo 13201256030

PIPE, FUEL 3×6×80 CLEAR

Note: RePower Bulk Option: 90017

$3.49

$

In Stock, Qty 20+

0

7

Echo 13211546730

GROMMET, FUEL Ø5

$2.49

$

In Stock, Qty 20+

0

8

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

$0.99

$

In Stock, Qty 20+

0

9

Echo V471003700

PIPE, FUEL 3×5×130 BLACK

Note: RePower Bulk Option: 90014

$1.49

$

In Stock, only 4 left!

0

10

Echo A369000480

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

11

Echo V107000150

GASKET, FUEL CAP

$4.99

$

In Stock, only 2 left!

0

12

Echo P021040430

CAP ASSY, FUEL

Note: Includes Items 13-14

$6.99

$

In Stock, Qty 10

0

13

Echo V107000150

GASKET, FUEL CAP

$4.99

$

In Stock, only 2 left!

0

14

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 20+

0

15

Echo A350002270

TANK ASSY, FUEL
(Superseded to A350002271)

Note: Includes Item 16

$32.99

$

In Stock, only 2 left!

0

16

Echo V353000231

COLLAR 5

$4.99

$

Usually ships in 2-4 days

0

17

Echo V805000160

BOLT, TORX 5×20

$0.99

$

In Stock, Qty 20+

0

18

Echo 90152

TUNE-UP KIT - REPOWER
(Superseded to 90152Y)

Note: See Repower Maintenance Kits

$21.99

$

In Stock, Qty 20+

0
