GT-225 L - Echo String Trimmer (SN: T78514001001 - T78514999999) Starter Parts Diagram

String Trimmer

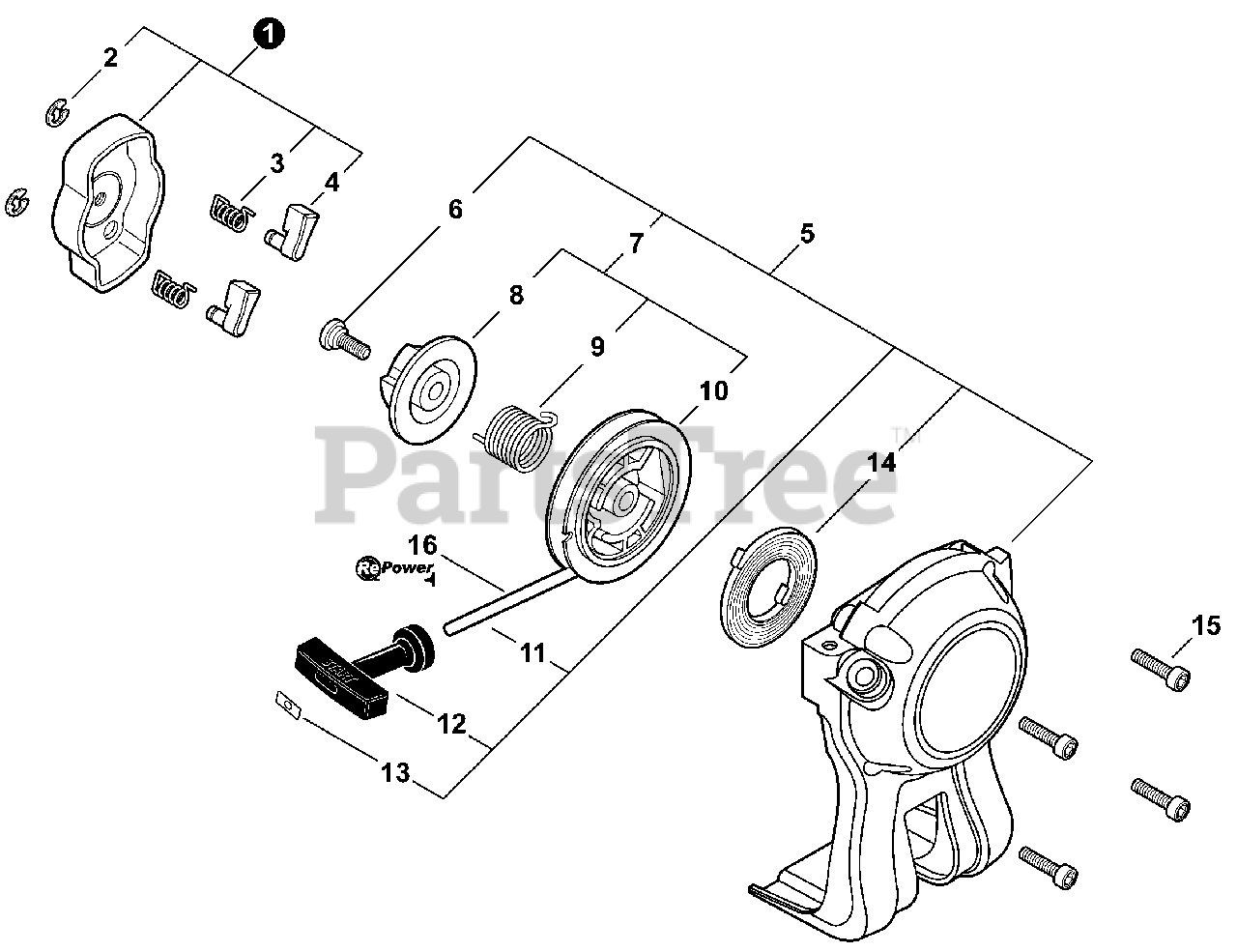

Starter Parts Diagram

  • Title

1

Echo A052000180

PAWL ASSY, STARTER

Note: Includes ITEMS 2-4

$9.99

$

In Stock, Qty 17

0

2

Echo P022002100

E-RING 4

$0.99

$

In Stock, Qty 7

0

3

Echo 17723412220

SPRING, RETURN

$4.49

$

In Stock, Qty 20+

0

4

Echo P022006850

PAWL, STARTER

$3.99

$

In Stock, Qty 13

0

5

Echo A051001312

STARTER ASSY, RECOIL

Note: Includes ITEMS 6-14

$28.99

$

In Stock, Qty 20+

0

6

Echo 17723661830

SCREW
(Superseded to V253000310)

$1.99

$

In Stock, only 2 left!

0

7

Echo P050009920

REEL KIT, ROPE

Note: Includes ITEMS 8-10

$23.99

$

In Stock, only 2 left!

0

8

Echo A525000020

PLATE, CAM

$8.49

$

In Stock, only 4 left!

0

9

Echo P022008270

SPRING, TORSION

$8.99

$

In Stock, only 2 left!

0

10

Echo A506000500

REEL, ROPE

$9.49

$

In Stock, Qty 11

0

11

Echo P022019990

ROPE, STARTER
(Superseded to P022008260)

$5.99

$

In Stock, Qty 5

0

12

Echo 17722827030

GRIP, STARTER

$6.99

$

In Stock, Qty 15

0

13

Echo 17724611120

RETAINER, ROPE
(Superseded to P022037670)

$2.49

$

In Stock, only 2 left!

0

14

Echo P022019680

SPRING, RECOIL

$10.99

$

In Stock, Qty 20+

0

15

Echo V804000060

BOLT, TORX 4×16

$0.99

$

In Stock, Qty 20+

0

16

Echo 99944440000

ROPE, STARTER - REPOWER BULK 3

$33.99

$

In Stock, only 4 left!

0
