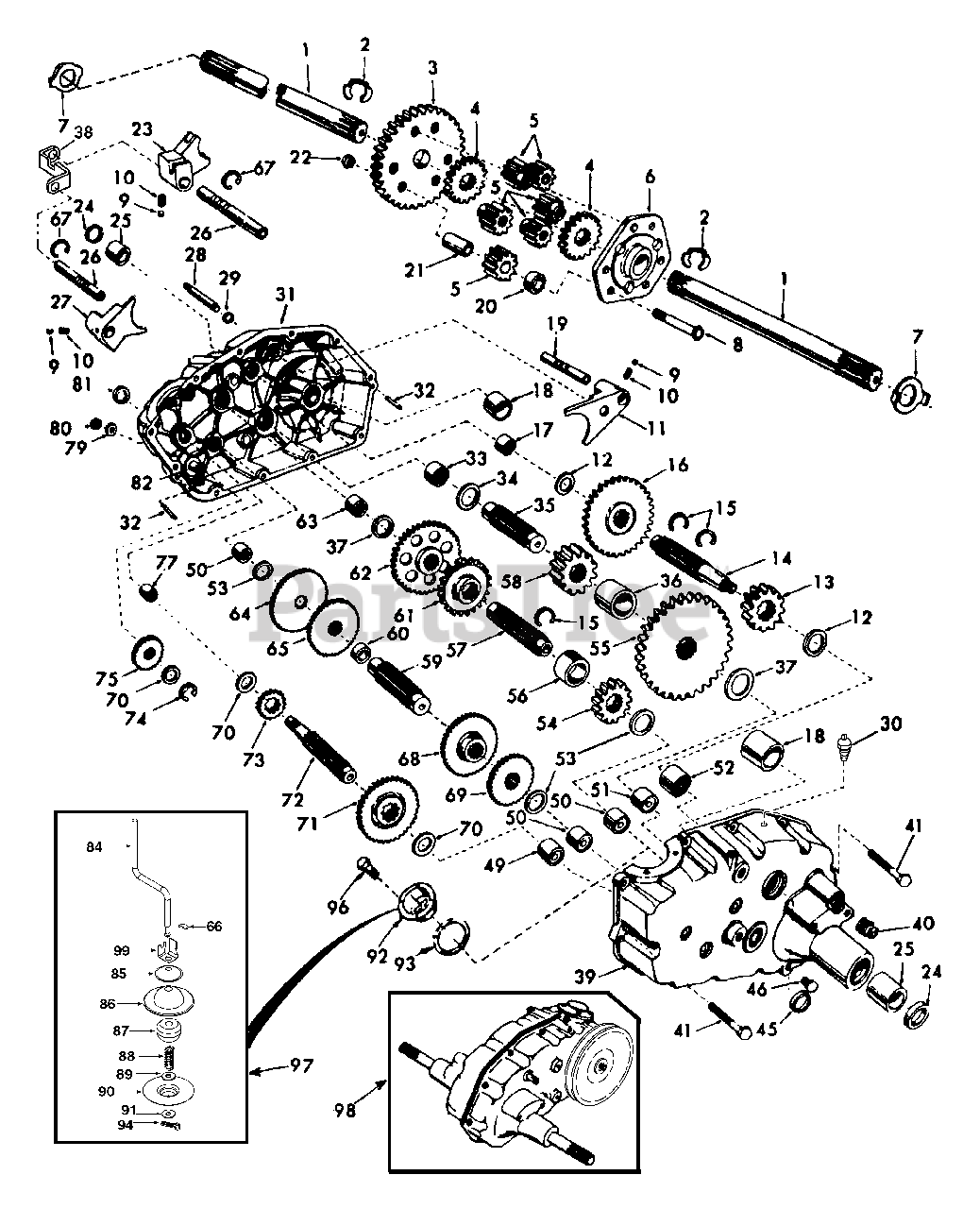

GT 2254 (960250002-01) - Husqvarna 54" Garden Tractor (2005-05) Gear Drive Transaxle Parts Diagram

54" Garden Tractor

Gear Drive Transaxle Parts Diagram

  • Title

1

Husqvarna 532124662

Axle Shaft
(Superseded to 532004197)

$

$

Not available

2

Husqvarna 812000034

Retaining Ring

$

$

Not available

3

Husqvarna 532004199

Final Drive Gear
(Superseded to 532184956)

$

$

Not available

4

Husqvarna 532004216

Differential Gear

$10.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532004215

Differential Pinion

$

$

Not available

6

Husqvarna 532004217

Differential Carrier

$

$

Not available

7

Husqvarna 532174728

Axle Thrust Washer

$

$

Not available

8

Husqvarna 874020652

Bolt, Hex Head 3/8-24 x 3-1/4 (1" Thread Length)

$

$

Not available

9

Husqvarna 532124697

Steel Ball
(Superseded to 532100482)

$5.99

$

In Stock, Qty 9

0

10

Husqvarna 532137261

Spring Shift Fork Detent
(Superseded to 532145359)

$

$

Not available

11

Husqvarna 532004985

Shift Fork, High-Low Range

$

$

Not available

12

Husqvarna 532124931

Thrust Bearing Race
(Superseded to 532006266)

$4.99

$

In Stock, Qty 17

0

13

Husqvarna 532124667

4th Reduction Pinion
(Superseded to 532004212)

$

$

Not available

14

Husqvarna 532137125

3rd Reduction Gear Shaft

$125.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532124677

Snap Ring, Crescent Type
(Superseded to 532006276)

$

$

Not available

16

Husqvarna 532124679

High-Low Range Gears
(Superseded to 532063363)

$

$

Not available

17

Husqvarna 532008118

Needle Bearing

$14.99

$

In Stock, Qty 5

0

18

Husqvarna 532124705

Sintered Iron Bearing
(Superseded to 532008740)

$

$

Not available

19

Husqvarna 532122238

Shift Fork Shaft, High-Low Range

$

$

Not available

20

Husqvarna 532004218

Differential Pinion Spacer

$

$

Not available

21

Husqvarna 532124673

Differential Pinion Bushing
(Superseded to 532006252)

$

$

Not available

22

Husqvarna 532124701

Gripco Centerlock Nut 3/8-24
(Superseded to 873610600)

$

$

Not available

23

Husqvarna 532006262

Shift Fork, R.H.

$

$

Not available

24

Husqvarna 532124698

Oil Seal
(Superseded to 532007393)

$3.49

$

In Stock, Qty 11

0

25

Husqvarna 532124709

Sintered Iron Bearing
(Superseded to 532000992)

$

$

Not available

26

Husqvarna 532139111

Shift Fork Shaft

$

$

Not available

27

Husqvarna 532004986

Shift Fork, L.H.

$

$

Not available

28

Husqvarna 532122254

Shift Shaft, High-Low Range

$

$

Not available

29

Husqvarna 532006269

Oil Seal

$

$

Not available

30

Husqvarna 532005855

Pressure Relief Valve

$

$

Not available

31

Husqvarna 532174731

Gearcase, Reverse Idler Shaft and Bearings, R.H.

Note: (Includes Key

$

$

Not available

32

Husqvarna 532006277

Dowel Pin

$

$

Not available

33

Husqvarna 532004225

Needle Bearing

$

$

Not available

34

Husqvarna 532007396

Thrust Bearing Race

$

$

Not available

35

Husqvarna 532004198

4th Reduction Gear Shaft

$

$

Not available

36

Husqvarna 532124663

4th Reduction Gear Spacer
(Superseded to 532004200)

$

$

Not available

37

Husqvarna 532007395

Thrust Bearing Race

$

$

Not available

38

Husqvarna 532160789

Gate, Lower, Shift

$

$

Not available

39

Husqvarna 532174729

Gearcase and Bearings, L.H.

Note: (Includes key Numbers 18, 25, 49, 50 (2), 51 and 52)

$

$

Not available

40

Husqvarna 813320400

Pipe Plug 1/2-14 N.P.T.

$

$

Not available

41

Husqvarna 817580520

Bolt, Hex 5/16-18 UNC x 1-1/4

$4.99

$

In Stock, only 1 left!

0

45

Husqvarna 532006271

Oil Seal

$

$

Not available

46

Husqvarna 813060200

Pipe Plug 1/4-18 N.P.T.

$

$

Not available

49

Husqvarna 532124792

Needle Bearlng
(Superseded to 532004895)

$13.99

$

In Stock, only 2 left!

0

50

Husqvarna 532004222

Needle Bearing

$

$

Not available

51

Husqvarna 532001529

Needle Bearing

$

$

Not available

52

Husqvarna 532008119

Needle Bearing

$

$

Not available

53

Husqvarna 532004220

Thrust Bearing Race

$

$

Not available

54

Husqvarna 532004209

3rd Reduction Pinion, Low

$

$

Not available

55

Husqvarna 532124668

4th Reduction Gear
(Superseded to 532004213)

$

$

Not available

56

Husqvarna 532004442

3rd Reduction Pinion Spacer

$

$

Not available

57

Husqvarna 532004195

2nd Reduction Gear Shaft

$

$

Not available

58

Husqvarna 532004214

Final Drive Pinion

$

$

Not available

59

Husqvarna 532004194

1st Reduction Gear Shaft

$

$

Not available

60

Husqvarna 532007528

1st Reduction Shaft Spacer

$

$

Not available

61

Husqvarna 532124666

3rd Reduction Plnion Hlgh
(Superseded to 532004208)

$

$

Not available

62

Husqvarna 532124665

2nd Reduction Gear

$

$

Not available

63

Husqvarna 532007398

Needle Bearlng

$

$

Not available

64

Husqvarna 532124664

Low Speed Gear and 2nd Reduction Pinion Cluster
(Superseded to 532004203)

$

$

Not available

65

Husqvarna 532004204

Reverse Gear

$

$

Not available

66

Husqvarna 532002898

Key, Hi-Pro 1/8 x 17/32

$

$

Not available

67

Husqvarna 812000033

Snap Ring, Crescent Type

$

$

Not available

68

Husqvarna 532004205

Intermediate Speed Gear

$

$

Not available

69

Husqvarna 532125099

High Speed Gear
(Superseded to 583750601)

$

$

Not available

70

Husqvarna 532001370

Thrust Bearing Race

$5.99

$

In Stock, only 2 left!

0

71

Husqvarna 532124681

Intermediate and High Speed Cluster Pinions
(Superseded to 532063369)

$

$

Not available

72

Husqvarna 532139120

Input Shaft
(Superseded to 532188670)

$

$

Not available

73

Husqvarna 532004201

Low Speed Pinion

$

$

Not available

74

Husqvarna 812000008

E-Ring

$9.49

$

In Stock, Qty 10

0

75

Husqvarna 532001153

Reverse Idler Gear

$

$

Not available

77

Husqvarna 532006803

Needle Bearing

$11.99

$

In Stock, only 2 left!

0

79

Husqvarna 532001167

Sealing Washer

$

$

Not available

80

Husqvarna 873360700

Nut, Hex, Jam 7/16-20
(Superseded to 873610700)

$6.99

$

In Stock, Qty 13

0

81

Husqvarna 532124675

Oil Seal
(Superseded to 532006270)

$

$

Not available

82

Husqvarna 532136984

Reverse Idler Shaft

$

$

Not available

84

Husqvarna 532005384

Gearshift Lever, Bent

$

$

Not available

85

Husqvarna 532002978

Gearshift Cap

$

$

Not available

86

Husqvarna 532124682

Gearshift Ball Cover and Pin
(Superseded to 532063385)

$

$

Not available

87

Husqvarna 532124704

Shift Lever Guide Ball, Keyed
(Superseded to 532008739)

$34.99

$

Usually ships in 3-10 days

0

88

Husqvarna 532004924

Spring

$9.49

$

Usually ships in 3-10 days

0

89

Husqvarna 819151516

Washer 15/32 x 15/16 x 16 Gauge
(Superseded to 594976501)

$3.49

$

In Stock, only 1 left!

0

90

Husqvarna 532110542

Shift Mechanism Seal

$4.99

$

In Stock, Qty 6

0

91

Husqvarna 819181511

Washer 9/16 x 15/16 x 12 Gauge

$

$

Not available

92

Husqvarna 532000075

Gearshift Gate and Reinforcement

$

$

Not available

93

Husqvarna 532006274

Shift Ball Cover Gasket

$

$

Not available

94

Husqvarna 876020412

Cotter Pin 1/8 x 3/4
(Superseded to 596029501)

$3.49

$

In Stock, Qty 5

0

96

Husqvarna 532194036

Bolt, Hex, 5/16-18X1 Epoxy Patch

$

$

Not available

97

Husqvarna 532194121

Lever Assembly ROS Gear Shift
(Superseded to 532421069)

$51.99

$

In Stock, only 1 left!

0

98

Husqvarna 532184956

Transaxle, 6 Speed, Complete Assembly

$

$

Not available

99

Husqvarna 532193833

Actuator, Shift Lever

$

$

Not available
