GT-230 - Echo String Trimmer (SN: 05001001 - 05999999) Exhaust Parts Diagram

String Trimmer

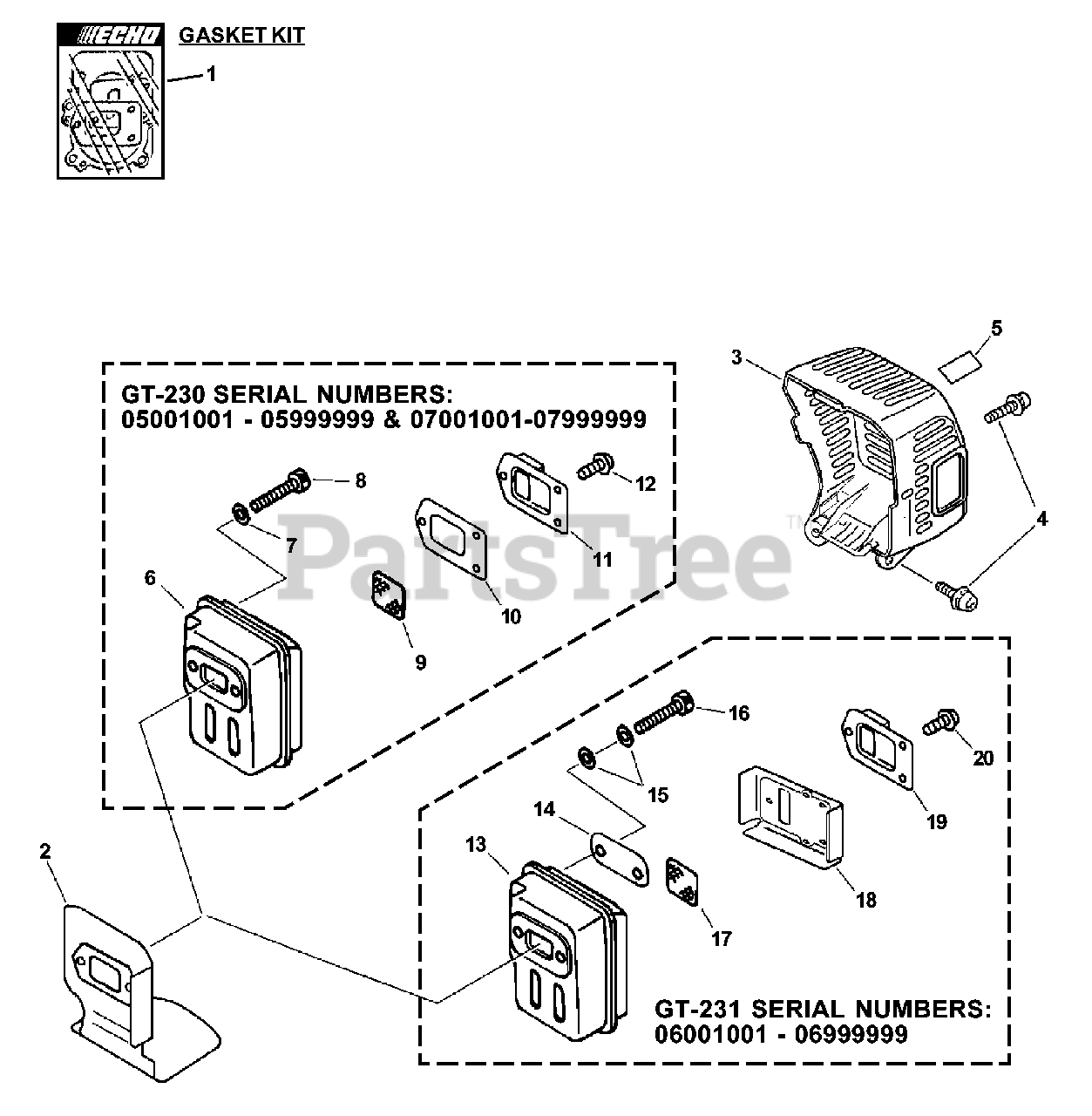

Exhaust Parts Diagram

  • Title

1

Echo P021003900

GASKET KIT
(Superseded to Discontinued)

$

$

Not available

2

Echo V104000061

HEAT SHIELD, EXHAUST

Note: Included In GASKET KIT

$11.99

$

Usually ships in 2-4 days

0

3

Echo A320000001

COVER, EXHAUST
(Superseded to A320000002)

$11.99

$

In Stock, Qty 12

0

4

Echo 90010605012

BOLT 5×12

$1.49

$

In Stock, Qty 20+

0

5

Echo X505002310

LABEL, CAUTION - HOT

$2.49

$

In Stock, only 2 left!

0

6

Echo 145806-42030

MUFFLER

Note: GT-230 S/N: 05001001-05999999 & 07001001-07999999

$55.99

$

In Stock, only 1 left!

0

7

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

Note: GT-230 S/N: 05001001-05999999 & 07001001-07999999

$0.99

$

In Stock, Qty 20+

0

8

Echo 900105-05055

BOLT 5×55

Note: GT-230 S/N: 05001001-05999999 & 07001001-07999999

$1.99

$

In Stock, Qty 20+

0

9

Echo 14586240630

SCREEN, SPARK ARRESTER

Note: GT-230 S/N: 05001001-05999999 & 07001001-07999999

$2.49

$

In Stock, Qty 20+

0

10

Echo 145866-42031

GASKET, EXHAUST

Note: GT-230 S/N: 05001001-05999999 & 07001001-07999999; Also Included In GASKET KIT

$2.99

$

In Stock, only 2 left!

0

11

Echo A313000350

GUIDE, EXHAUST

Note: GT-230 S/N: 05001001-05999999 & 07001001-07999999

$8.49

$

In Stock, only 2 left!

0

12

Echo 900242-04010

SCREW 4×10

Note: GT-230 S/N: 05001001-05999999 & 07001001-07999999

$0.99

$

In Stock, Qty 20+

0

13

Echo A300000141

MUFFLER
(Superseded to A300000790)

Note: GT-231 S/N: 06001001 - 06999999

$88.99

$

In Stock, Qty 7

0

14

Echo V150000371

PLATE, EYE

Note: GT-231 S/N: 06001001 - 06999999

$1.49

$

In Stock, Qty 8

0

15

Echo V347000000

CONICAL WASHER

Note: GT-231 S/N: 06001001 - 06999999

$0.99

$

In Stock, Qty 8

0

16

Echo 900105-05055

BOLT 5×55

Note: GT-231 S/N: 06001001 - 06999999

$1.99

$

In Stock, Qty 20+

0

17

Echo 14586240630

SCREEN, SPARK ARRESTER

Note: GT-231 S/N: 06001001 - 06999999

$2.49

$

In Stock, Qty 20+

0

18

Echo V104000360

GASKET, EXHAUST
(Superseded to V104001760)

Note: GT-231 S/N: 06001001 - 06999999; Also Included In GASKET KIT

$8.49

$

In Stock, Qty 5

0

19

Echo A313000130

GUIDE, EXHAUST

Note: GT-231 S/N: 06001001 - 06999999

$11.99

$

In Stock, only 1 left!

0

20

Echo 9136704010

SCREW 4×10

Note: GT-231 S/N: 06001001 - 06999999

$0.99

$

In Stock, Qty 20+

0
